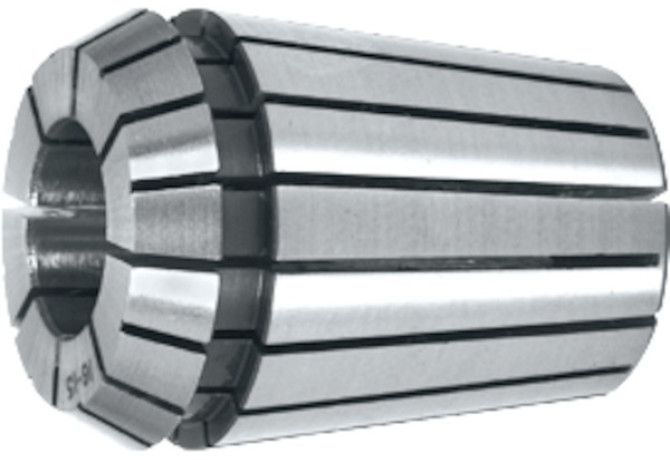

Главная Каталог продукции Toolunited 17 405-01 - Double angle collet 309040 21

309040 21

Артикул: 309040 21

В наличии

В корзину

Описание

Характеристики

BD Body diameter

41 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

HOG - Hoffmann Group

CZCWS Connection size code

0210

DCB Connection bore diameter

21 mm

DCBN Connection bore diameter minimum

20 mm

DCBX Connection bore diameter maximum

21 mm

Delivery state valid from

11/2/2016

DIN

SZD04000285

FamilyProducts

HOLEX ER type collet

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0210

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02000105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD04000285

Name Identifying order number

309040 21

OAL Overall length

46 mm

SEALP Sealing

0 - Without sealing

UNNO Unified number

472E
