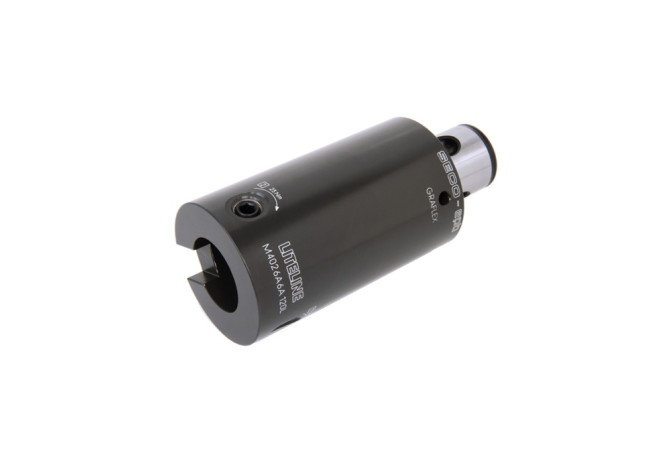

Главная Каталог продукции Toolunited 17 401-03 - Extender M4026B6B150L

M4026B6B150L

Артикул: 02689994

В наличии

В корзину

Описание

Характеристики

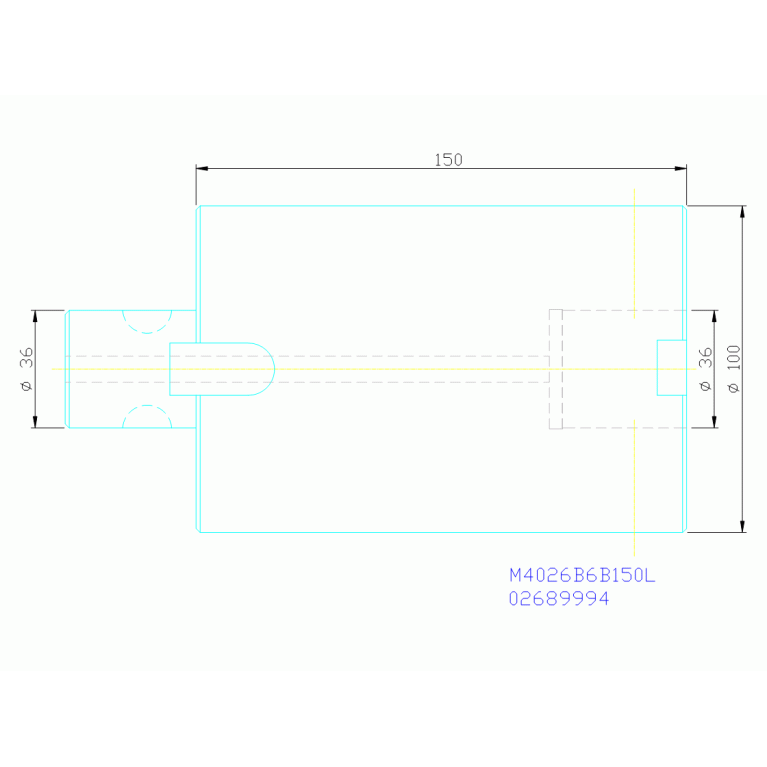

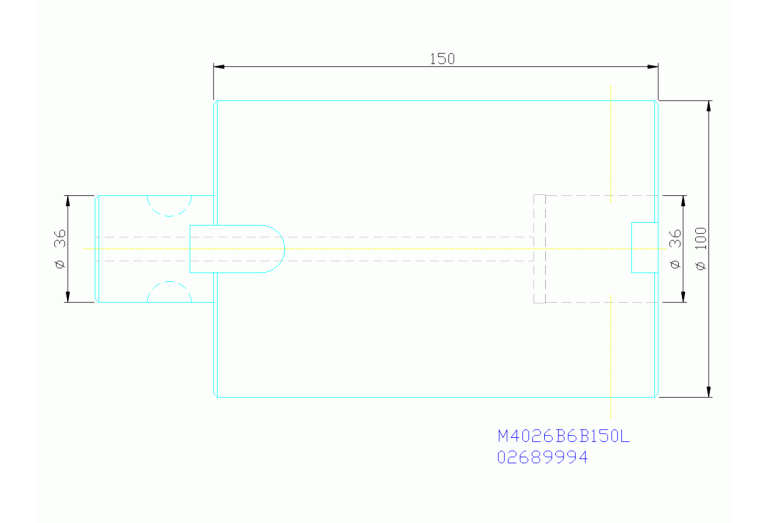

BD Body diameter

100 mm

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

GMS

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

06B0

DCONWS Diameter

36 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

DIN

SO-GMS06B001M0

FamilyProducts

M4026B6B150L

HAND Cutting direction

N - Neutral

ID Technical product number

02689994

Interface codes

J6 /

ISYC Subclass

401-03 - Extender

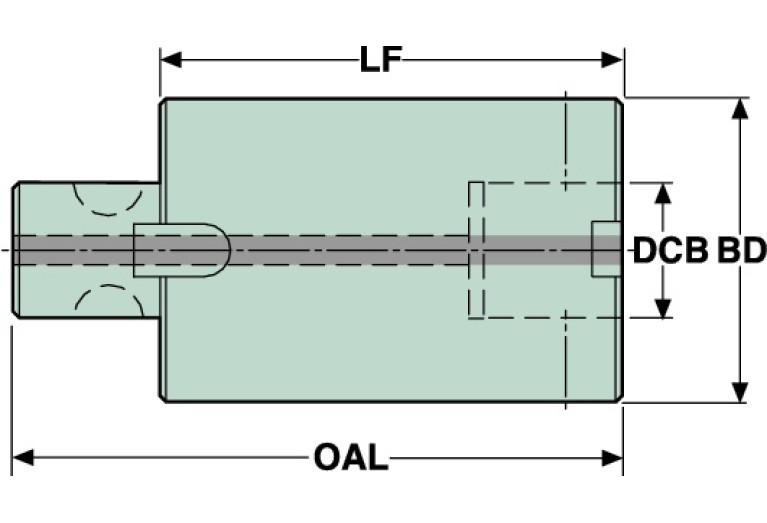

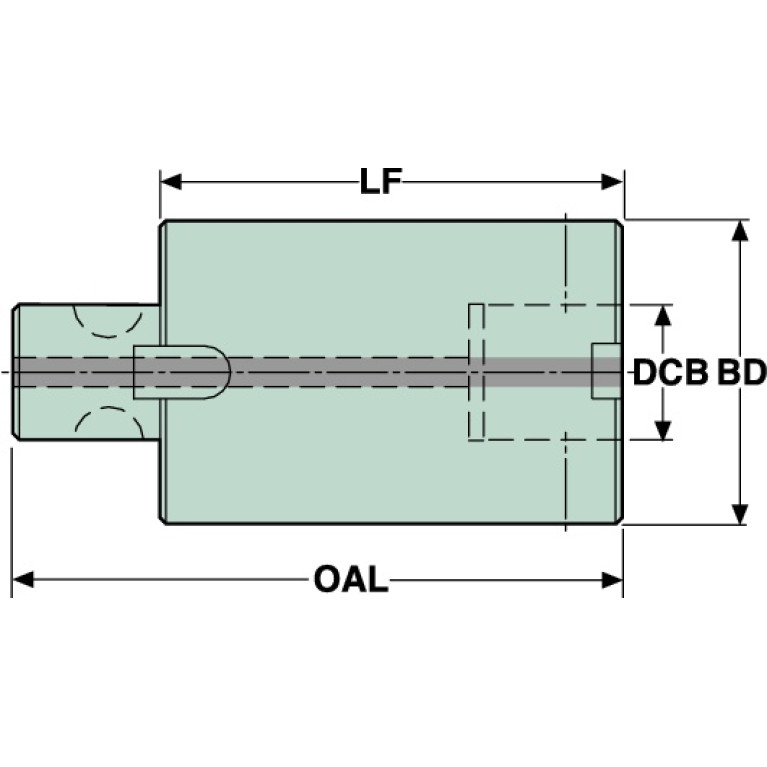

LF Functional length

150 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

GMS Graflex modular connection SECO

LOC-01 CZCWS Connection size code

06B0

LOC-01 DCONWS Diameter

36 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SO-GMS06B001M0

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

GMS Graflex modular connection SECO

LOC-03 CZCMS Connection size code

06B0

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SO-GMS06B001M0

Name Identifying order number

M4026B6B150L

OAL Overall length

190 mm

WT Weight of item

3.4 kg
