Главная Каталог продукции Toolunited 17 401-03 - Extender M402001

M402001

Артикул: 00056753

В наличии

В корзину

Описание

Характеристики

BD Body diameter

16 mm

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

GMS

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0160

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

GMS01600115

FamilyProducts

M402001

HAND Cutting direction

N - Neutral

ID Technical product number

00056753

Interface codes

J6 / J61

ISO

GMS01G1600$$$$

ISYC Subclass

401-03 - Extender

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

GMS Graflex modular connection SECO

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0160

LOC-01 ISO

GMS01G1600$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

GMS01600115

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SO-GMS000001M0

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

GMS Graflex modular connection SECO

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 ISO

GMS01G1600$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

GMS01600115

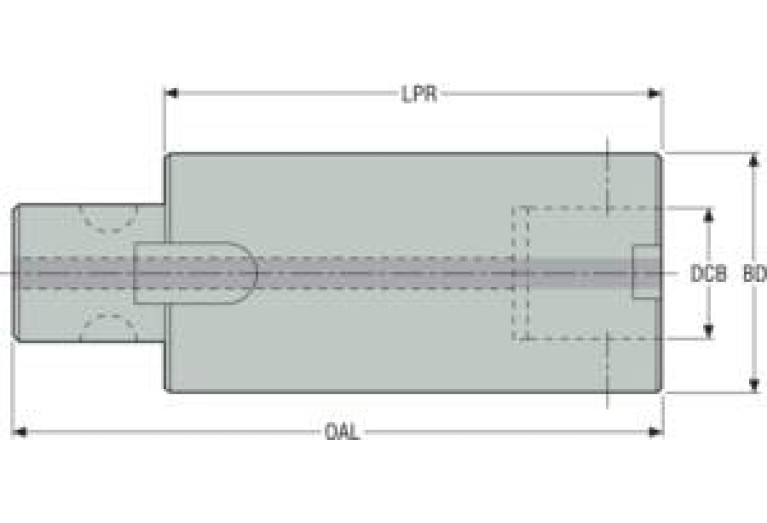

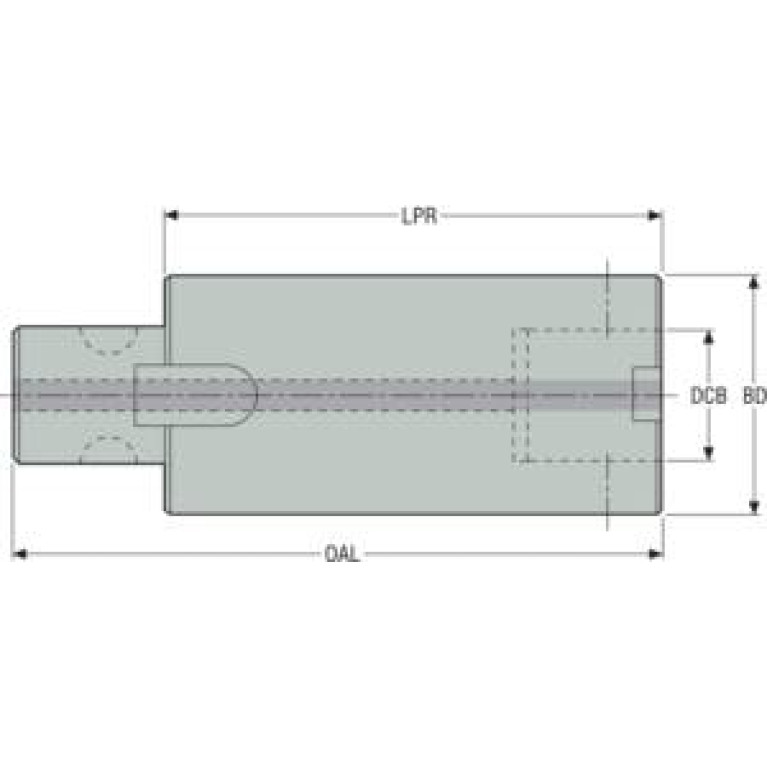

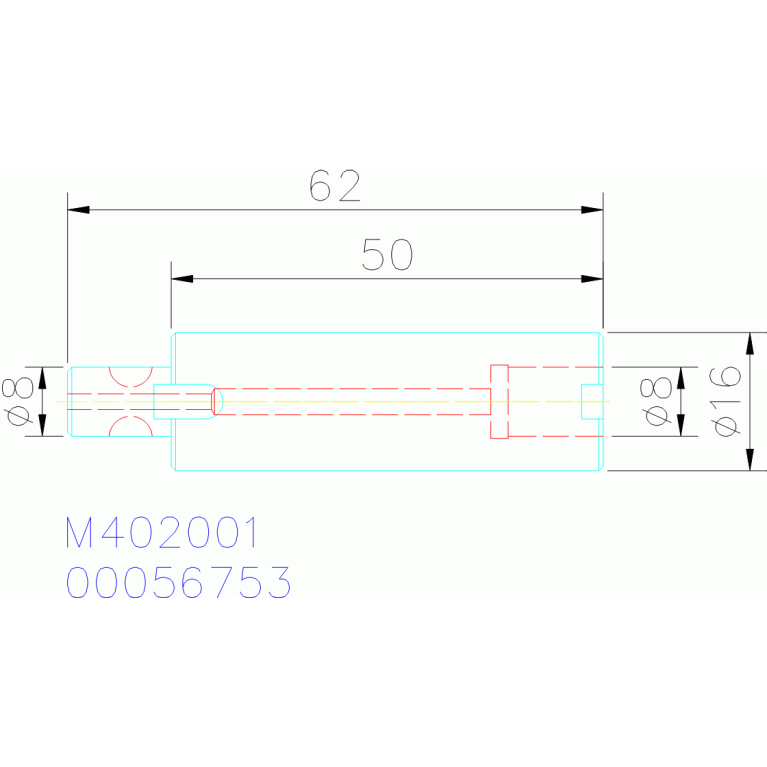

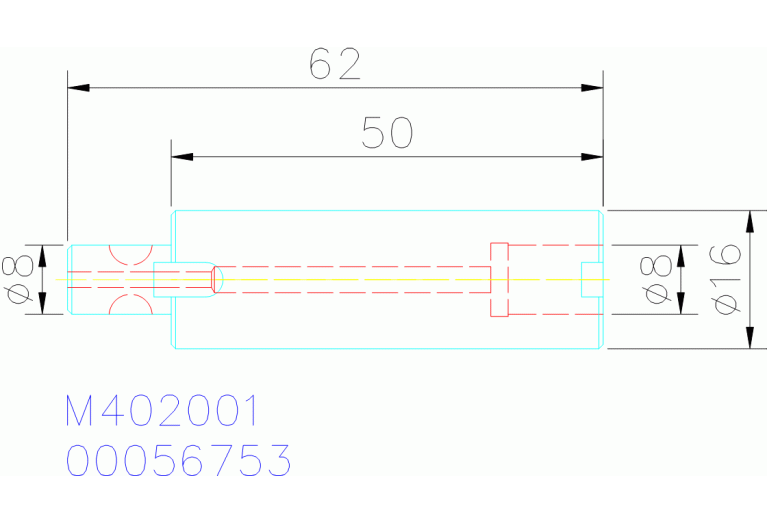

LPR Protruding length

50 mm

Name Identifying order number

M402001

OAL Overall length

62 mm

WT Weight of item

0.076 kg
