Главная Каталог продукции Toolunited 17 401-03 - Extender C4 EX C4X060

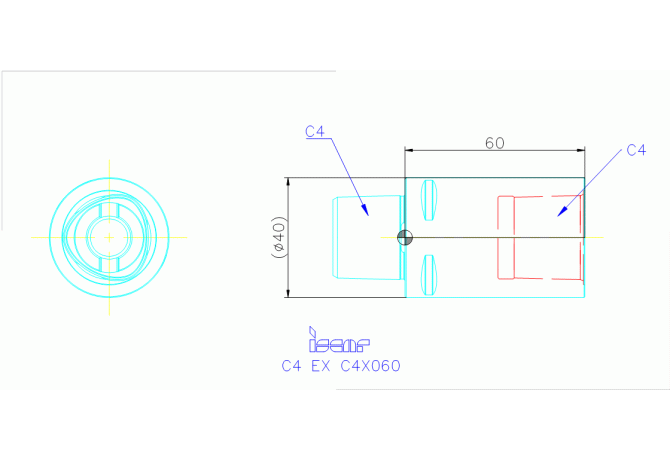

C4 EX C4X060

Артикул: 4510323

В наличии

В корзину

Описание

Характеристики

ADJHT Adujstment height property

BLQ Balance quality code

G6.3

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

CCS

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0400

DCINTF Interference cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

11/21/2016

DF Flange diameter

40 mm

DIN

CCS04000195

FamilyProducts

CAMFIX Extension Adapter

HAND Cutting direction

N - Neutral

ID Technical product number

4510323

Interface codes

J6 /

ISYC Subclass

401-03 - Extender

LAM Actuation method

0 - manual clamping

LF Functional length

60 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

CCS Coromant Capto System SANDVIK

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0400

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS04000195

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000195

LPR Protruding length

60 mm

Name Identifying order number

C4 EX C4X060

THSZWS Connection thread nominal size workpiece side

M14

WT Weight of item

0.5 kg

Диаметр корпуса (BD) / Body diameter (BD)

40 mm
