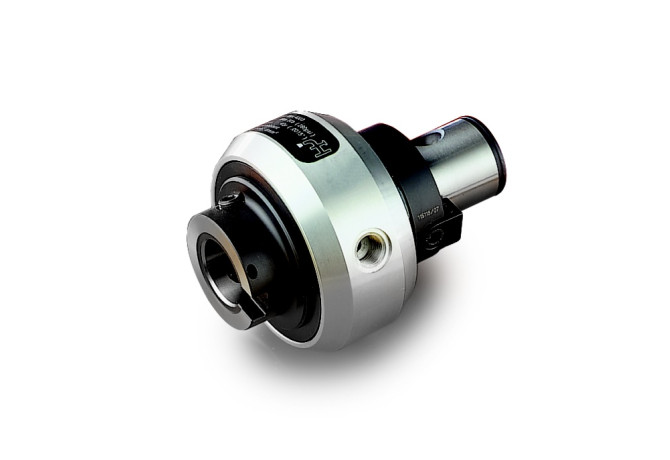

Главная Каталог продукции Toolunited 17 401-03 - Extender BSM06140136200

BSM06140136200

Артикул: 00096709

В наличии

В корзину

Описание

Характеристики

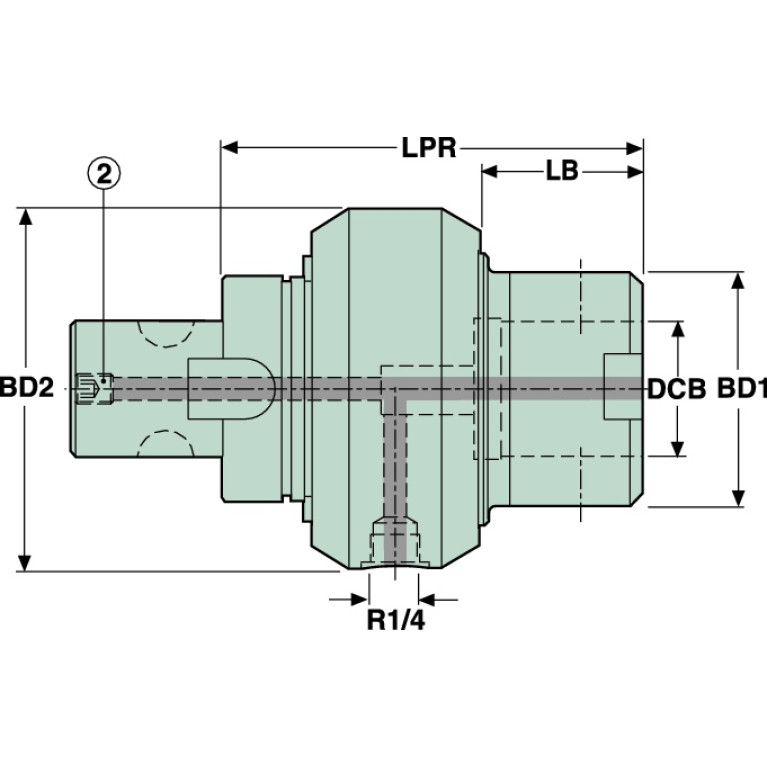

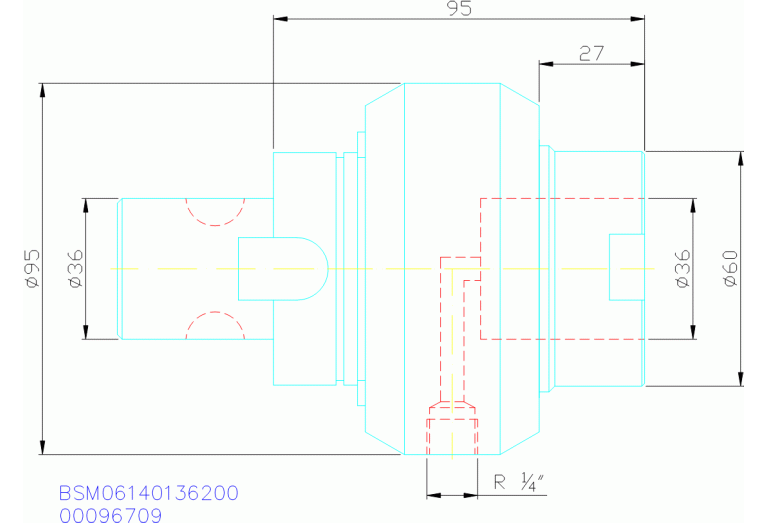

BD Body diameter

60 mm

BD Body diameter 2

95 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

GMS

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0060

DCONWS Diameter

36 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

DIN

SO-GMS006001M0

FamilyProducts

BSM06140136200

HAND Cutting direction

N - Neutral

ID Technical product number

00096709

Interface codes

J6 /

ISYC Subclass

401-03 - Extender

LB Body length 1

27 mm

LF Functional length

95 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

GMS Graflex modular connection SECO

LOC-01 CZCWS Connection size code

0060

LOC-01 DCONWS Diameter

36 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SO-GMS006001M0

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

GMS Graflex modular connection SECO

LOC-03 CZCMS Connection size code

0060

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SO-GMS006001M0

LPR Protruding length

95 mm

Name Identifying order number

BSM06140136200

OAL Overall length

135 mm

RPMX Rotational speed maximum

4000 1/min

WT Weight of item

2.66 kg
