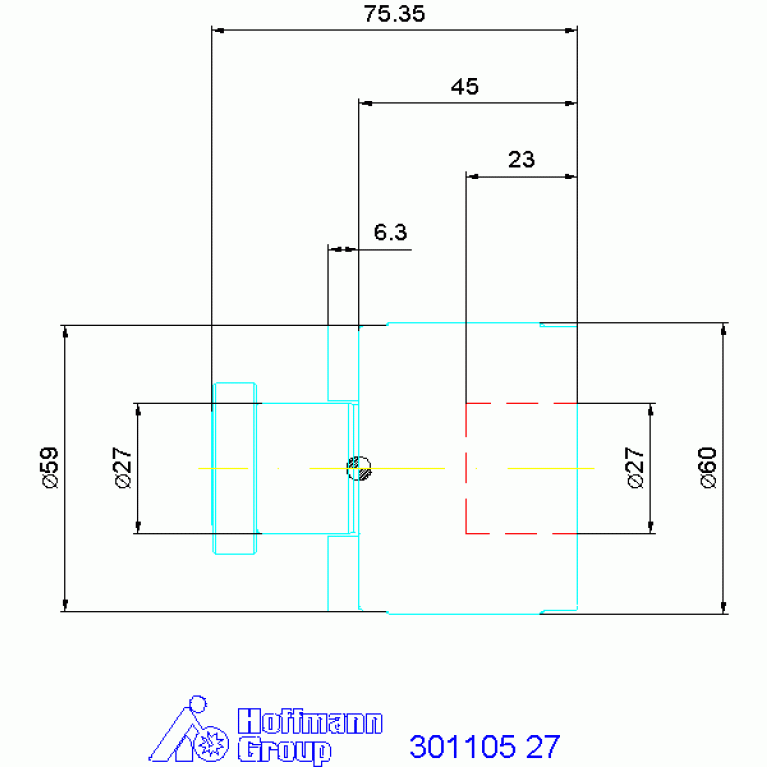

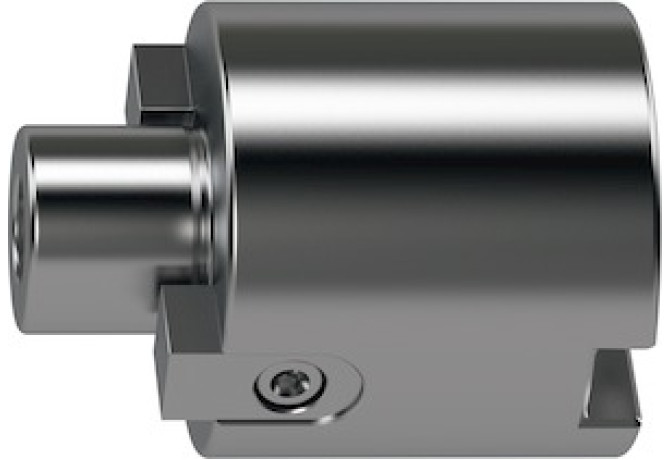

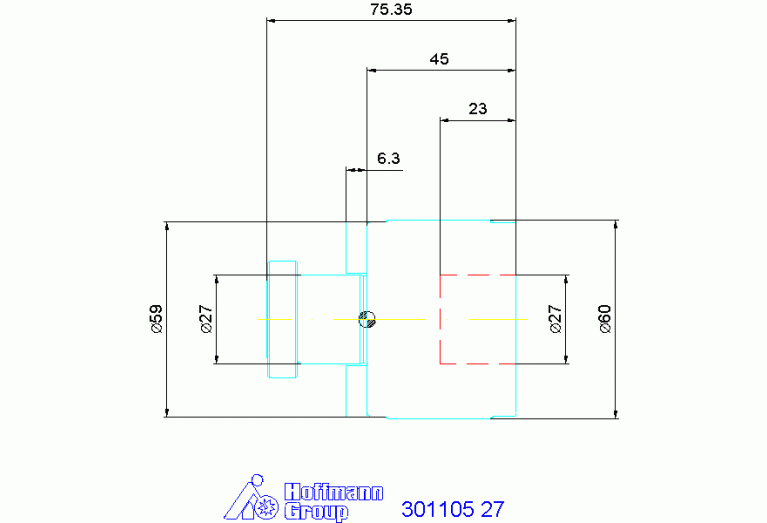

Главная Каталог продукции Toolunited 17 401-03 - Extender 301105 27

301105 27

Артикул: 301105 27

В наличии

В корзину

Описание

Характеристики

BD Body diameter

60 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

FDA

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0270

DCONWS Diameter

27 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DF Flange diameter

60 mm

DIN

FDA02700200

FamilyProducts

Face mill arbor extension short

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-03 - Extender

LB Body length 1

45 mm

LF Functional length

45 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0270

LOC-01 DCONWS Diameter

27 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA02700200

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02700200

LPR Protruding length

45 mm

LSCX Clamping length maximum

23 mm

Name Identifying order number

301105 27

OAL Overall length

78 mm

WT Weight of item

1.049 kg
