Главная Каталог продукции Toolunited 17 401-02 - Converter, stationary VDI40.B4.25.44.IK

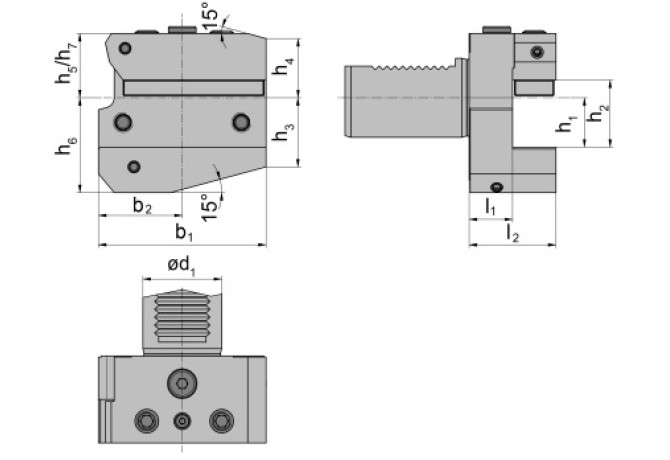

VDI40.B4.25.44.IK

VDI40.B4.25.44.IK VDI40.B4.25.44.IK

VDI40.B4.25.44.IK

Paul Horn
Артикул: VDI40B42544IK
В наличии
В корзину
Описание
Характеристики
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
VKT
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HORN - Paul Horn
CXSC Coolant exit style code
8 - Axial concentrical or peripheral/decentralized adjustable
CZCWS Connection size code
2525
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/27/2017
DHD Drop head design
1 - overhead
DIN
ZYV04000115
FamilyProducts
Basic Toolholder Type VDI
HAND Cutting direction
L - Left
HF Functional height
25 mm
ID Technical product number
VDI40B42544IK
Interface codes
J6 /
ISYC Subclass
401-02 - Converter, stationary
KAP Kappa
90 Degree
LF Functional length
22 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
VKT Square mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
2525
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
VKT25250115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYV cylindrical shank VDI type (serrated)
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV04000115
LPR Protruding length
44 mm
LSCX Clamping length maximum
85 mm
Name Identifying order number
VDI40.B4.25.44.IK
OAH Overall height
90.5 mm
OAW Overall width
85 mm
RADH Radial height
48 mm
RADW Radial width
42.5 mm
Rotation Rotation indicator
0 - stationary tool
STDLET Standard letter to the standard number
B4
STDNO Standard
ISO10889-1
