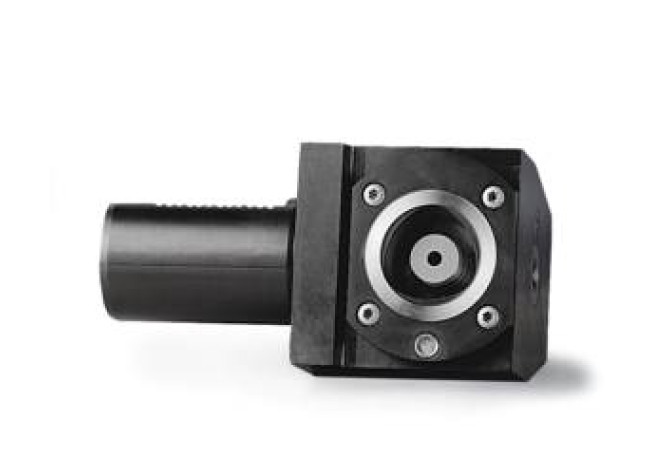

Главная Каталог продукции Toolunited 17 401-02 - Converter, stationary C6-LC2060-53040

C6-LC2060-53040

C6-LC2060-53040 C6-LC2060-53040 C6-LC2060-53040 C6-LC2060-53040

C6-LC2060-53040

Seco
Артикул: 00094018
В наличии
В корзину
Описание
Характеристики

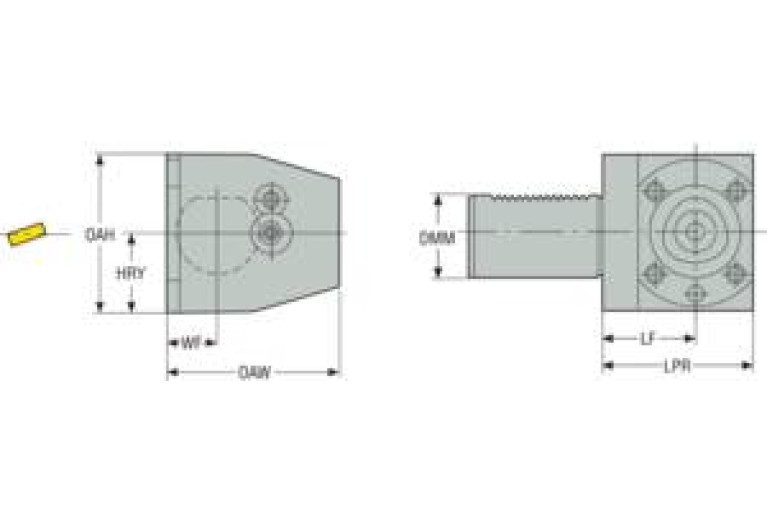

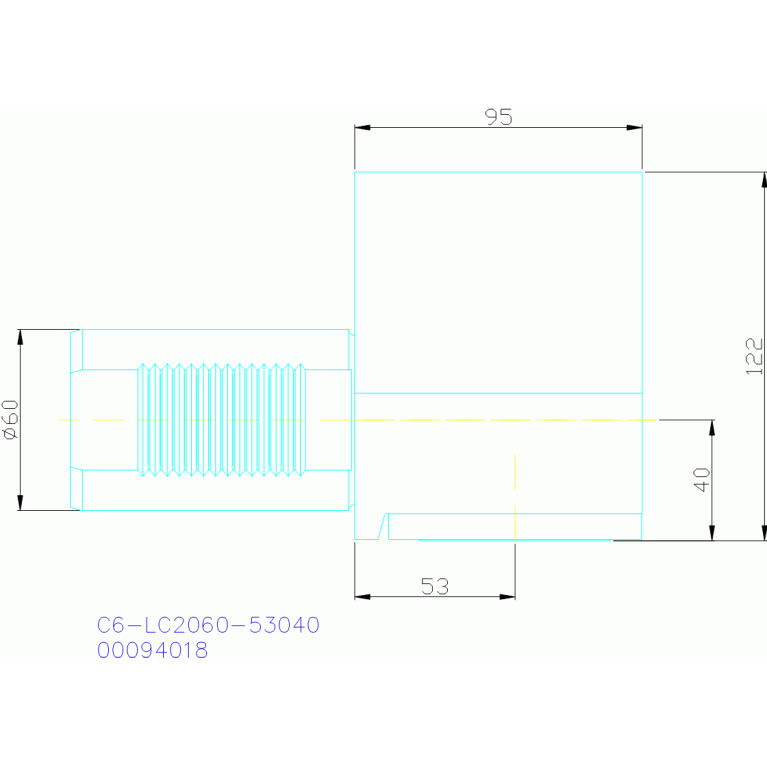

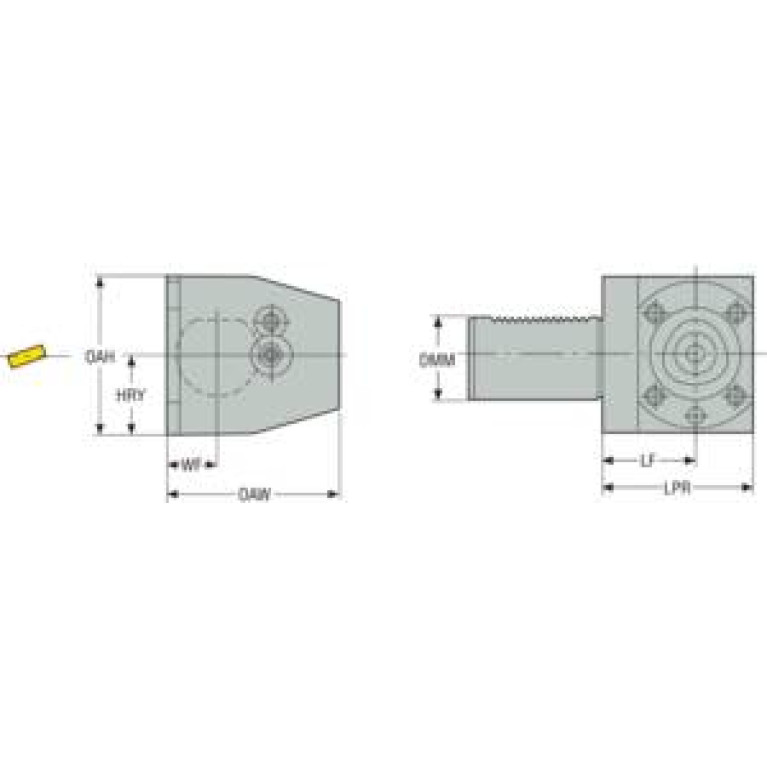

BD Body diameter
63 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
CCS
CCUWS Connection code unit base
8
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0630
DCONWS Diameter
60 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYV06000105
FamilyProducts
C6-LC2060-53040
HAND Cutting direction
L - Left
HF Functional height
70 mm
ID Technical product number
00094018
Interface codes
J6 / J61
ISO
ZYV01G6000****
ISYC Subclass
401-02 - Converter, stationary
LB Body length 1
95 mm
LF Functional length
53 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Connection code unit base
8 non-dimensional size
LOC-01 CZCWS Connection size code
0630
LOC-01 DCONWS Diameter
60 mm
LOC-01 ISO
CCS01C0630$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS06300185
LOC-02 DCONWS Diameter
60 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-CCS006001M0
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYV cylindrical shank VDI type (serrated)
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0600
LOC-03 ISO
ZYV01G6000****
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV06000105
LPR Protruding length
95 mm
Name Identifying order number
C6-LC2060-53040
OAW Overall width
122 mm
WF Functional width
40 mm
WT Weight of item
9.6 kg
