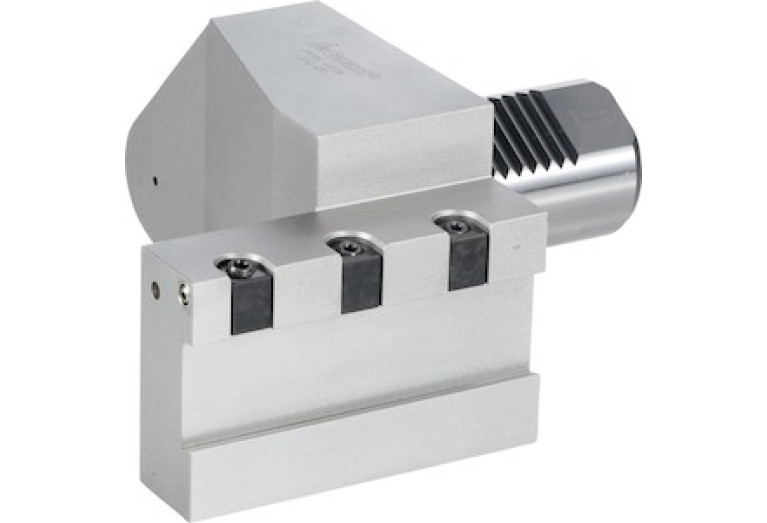

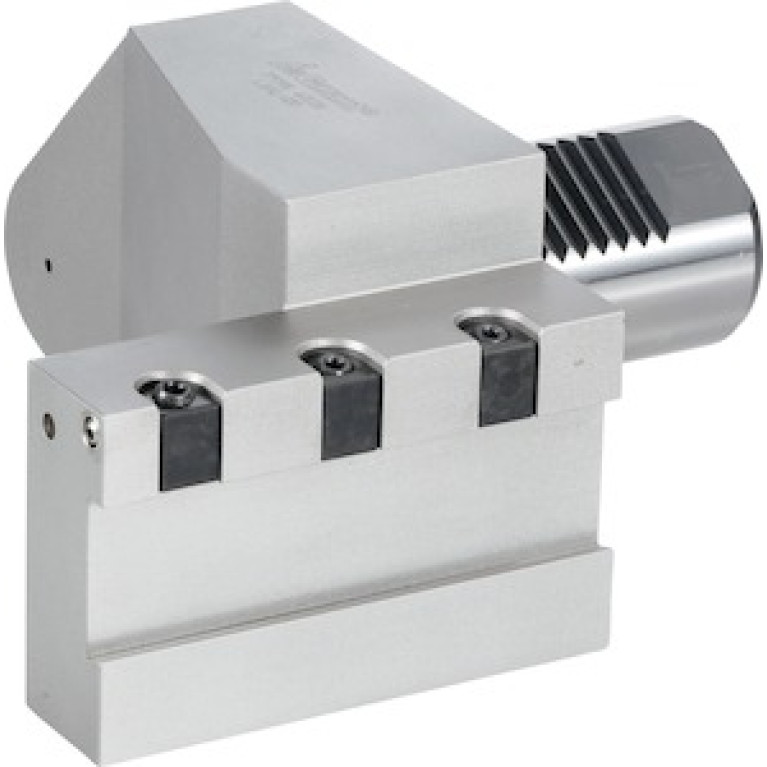

Главная Каталог продукции Toolunited 17 401-02 - Converter, stationary 319198 40/26

319198 40/26

Артикул: 319198 40/26

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

PMD

CCUWS Connection code unit base

COMPC Company code

HOG - Hoffmann Group

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHD Drop head design

0 - Normal

DIN

ZYV04000105

FamilyProducts

eco - parting-off toolholder

HAND Cutting direction

N - Neutral

HF Functional height

0 mm

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LF Functional length

67 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

PMD Prism mounting

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV04000105

LPR Protruding length

47 mm

LS Shank length

60 mm

Name Identifying order number

319198 40/26

OAH Overall height

76 mm

OAL Overall length

151.9 mm

OAW Overall width

152 mm

RADH Radial height

0 mm

RADW Radial width

0 mm

WT Weight of item

3.17 kg
