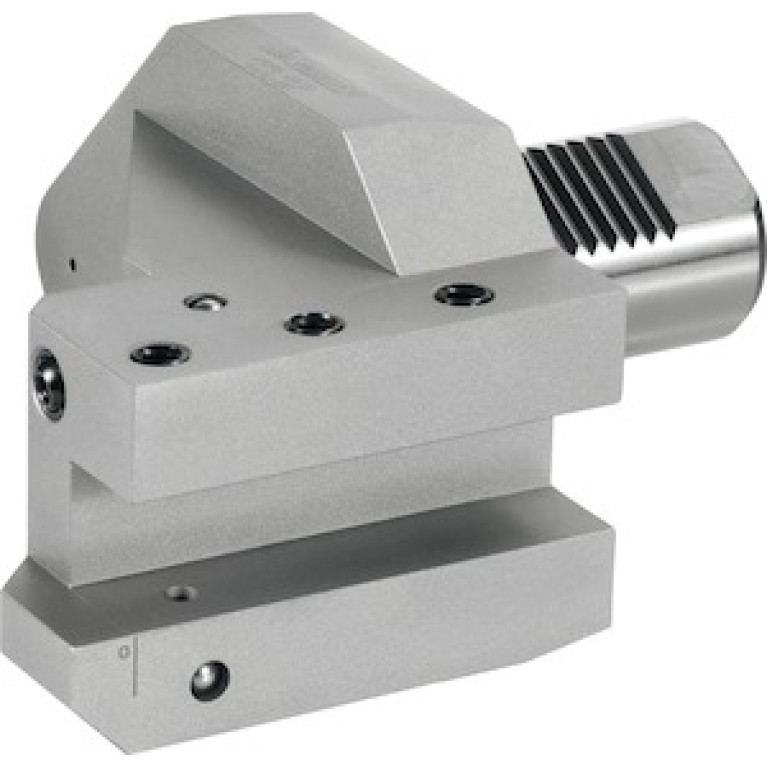

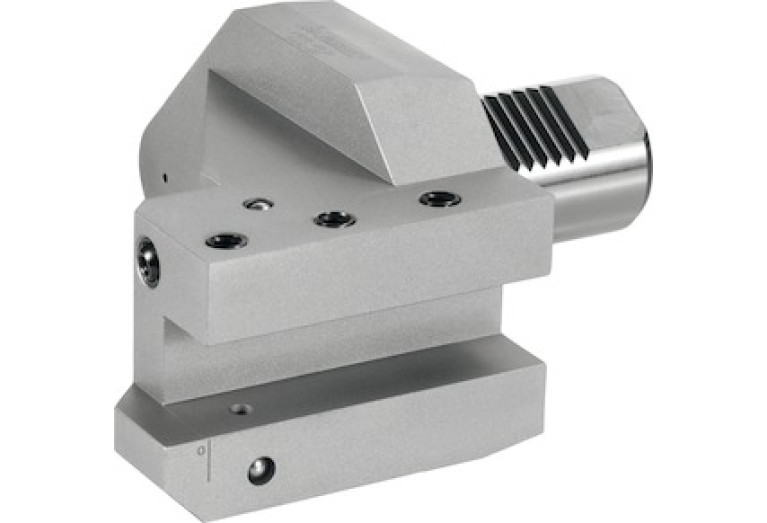

Главная Каталог продукции Toolunited 17 401-02 - Converter, stationary 319195 40/20

319195 40/20

Артикул: 319195 40/20

В наличии

В корзину

Описание

Характеристики

BD Body diameter

82 mm

BD Body diameter 2

82 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

CCUWS Connection code unit base

COMPC Company code

HOG - Hoffmann Group

CZCWS Connection size code

2020

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYV04000105

FamilyProducts

eco axial tool mounting, forward

HAND Cutting direction

R - Right

HF Functional height

19.95 mm

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LF Functional length

0 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

2020

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT20200105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV04000105

LS Shank length

60 mm

Name Identifying order number

319195 40/20

OAH Overall height

159.5 mm

OAW Overall width

148 mm

RADH Radial height

41 mm

RADW Radial width

65 mm

WF Functional width

45 mm

WT Weight of item

3.36 kg
