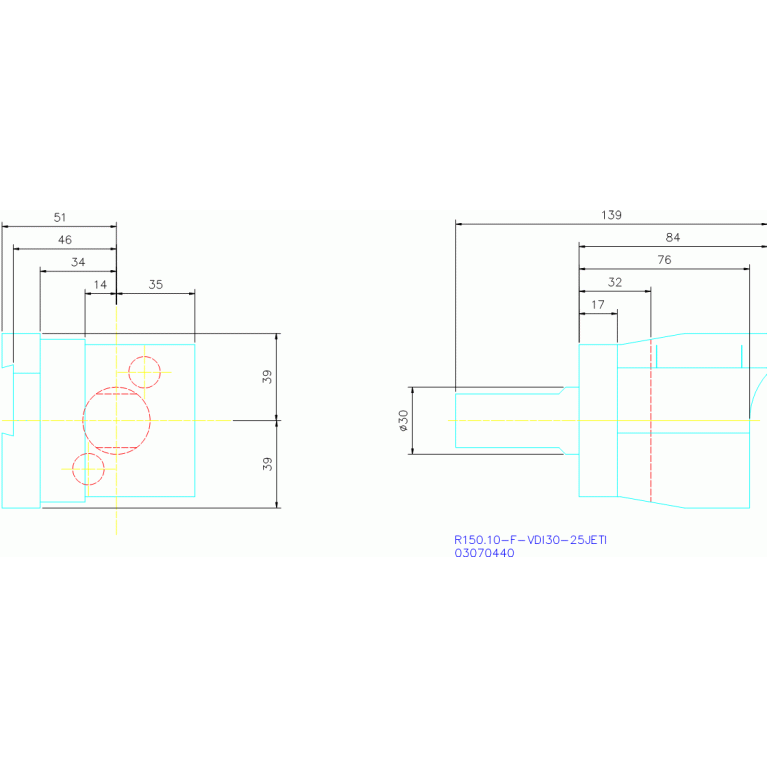

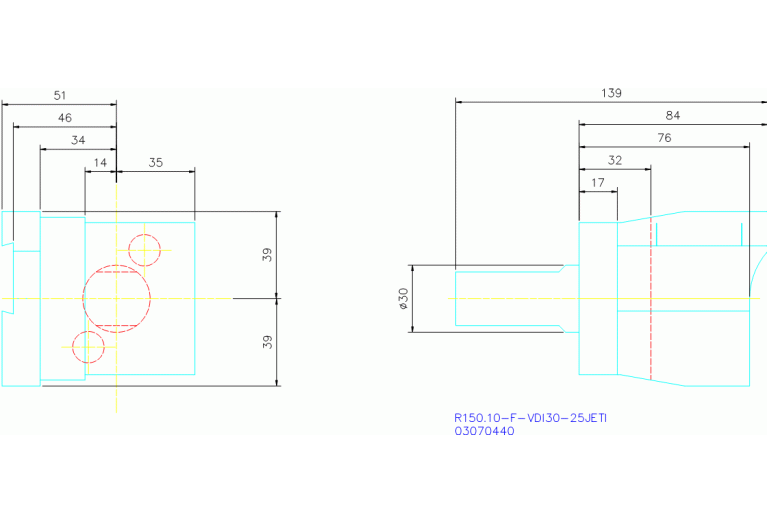

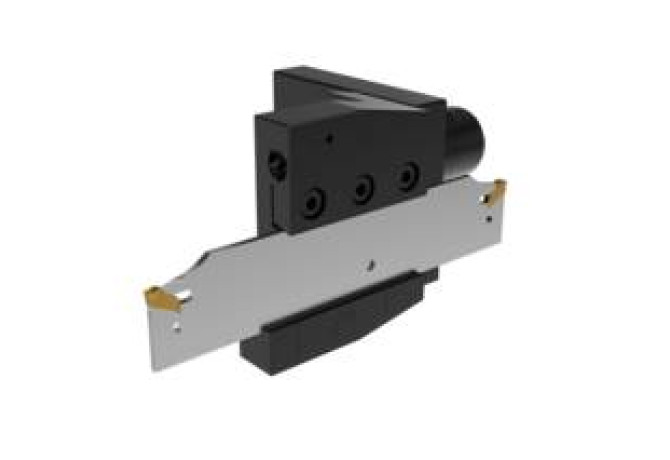

R150.10-F-VDI30-25JETI

Артикул: 03070440

В наличии

В корзину

Описание

Характеристики

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

150

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

FamilyProducts

R150.10-F-VDI30-25JETI

HAND Cutting direction

N - Neutral

ID Technical product number

03070440

Interface codes

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

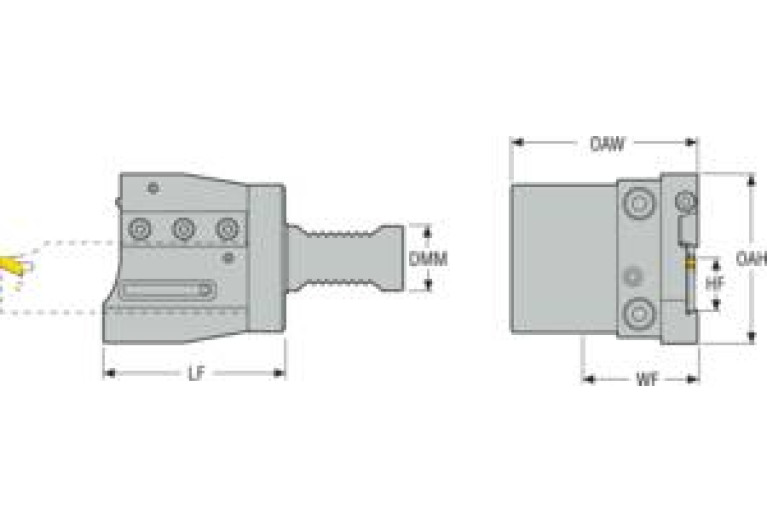

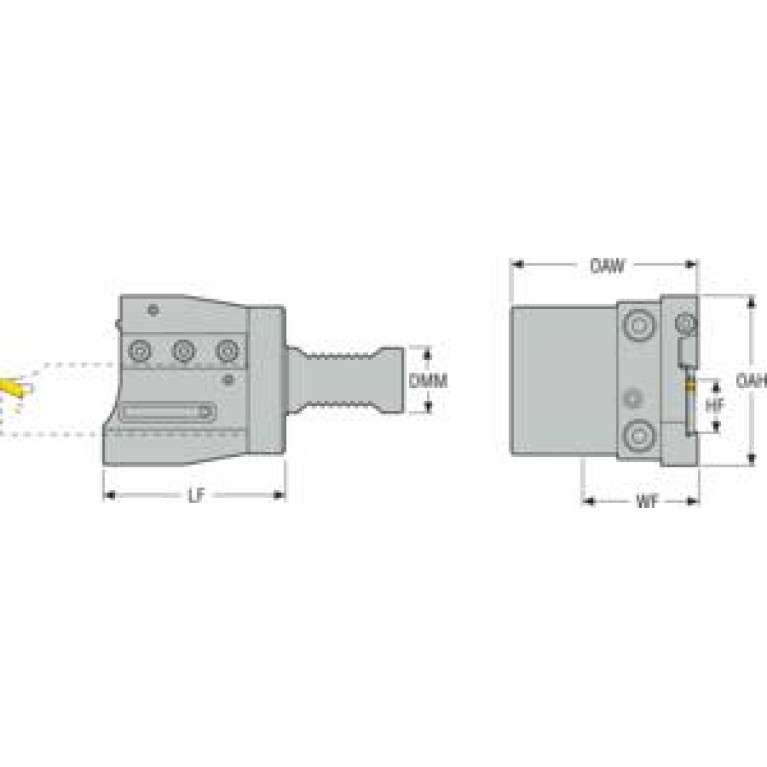

LF Functional length

84 mm

LOC-01 CZCWS Connection size code

150

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SO-SO 150 10-25N

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 DCONMS Diameter

30 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

R150.10-F-VDI30-25JETI

OAW Overall width

86 mm

WF Functional width

51 mm

WT Weight of item

1.707 kg
