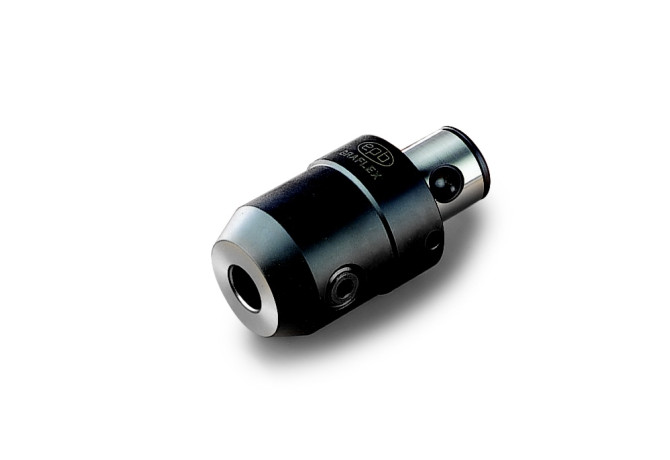

Главная Каталог продукции Toolunited 17 401-00 - Adaptive item converter, extender, reducer unspecified M58433632

M58433632

Артикул: 00076785

В наличии

В корзину

Описание

Характеристики

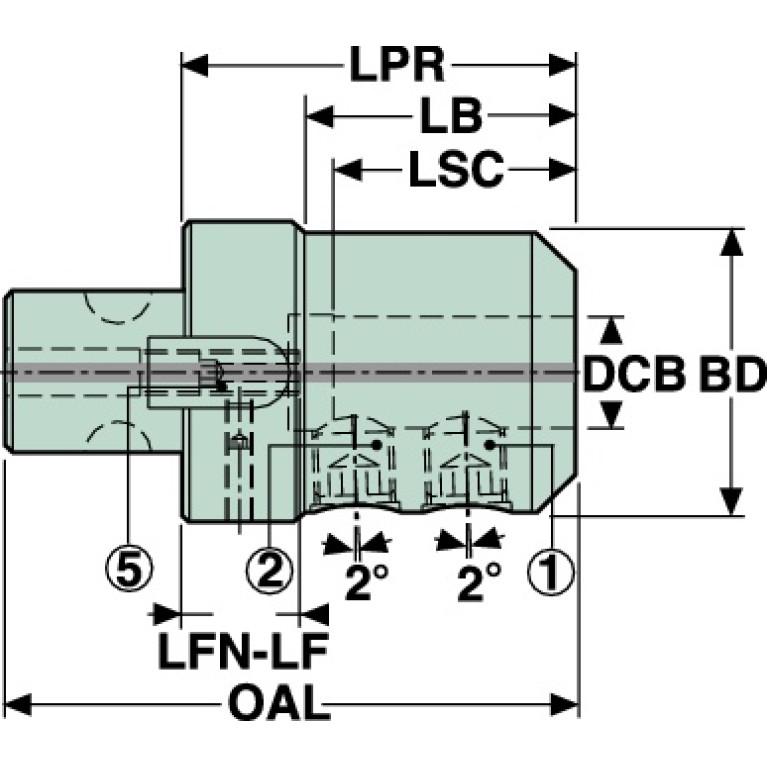

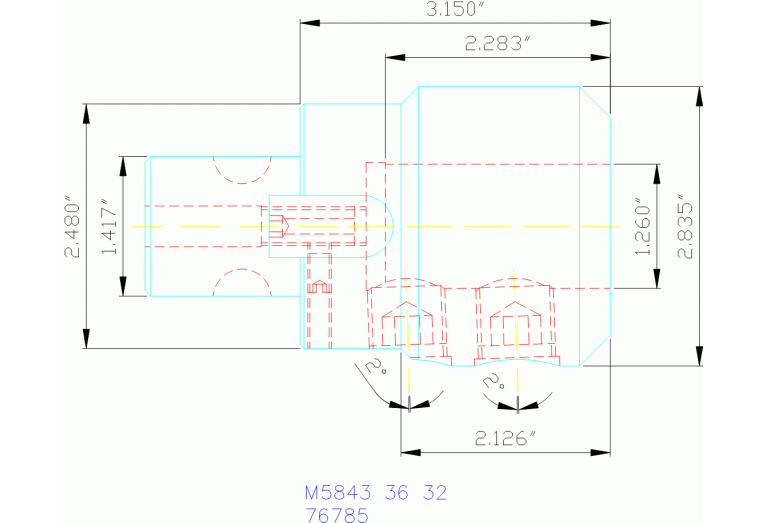

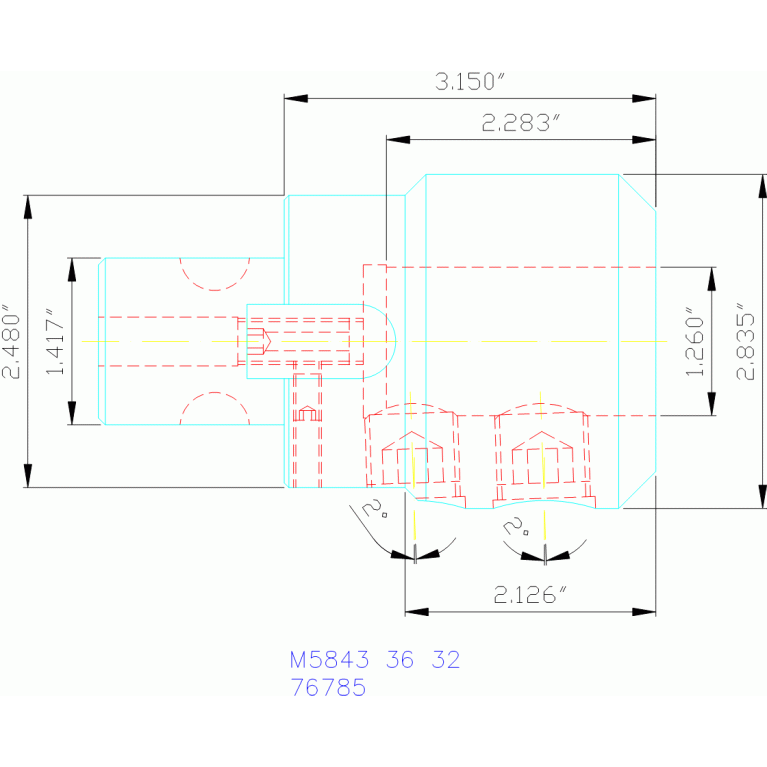

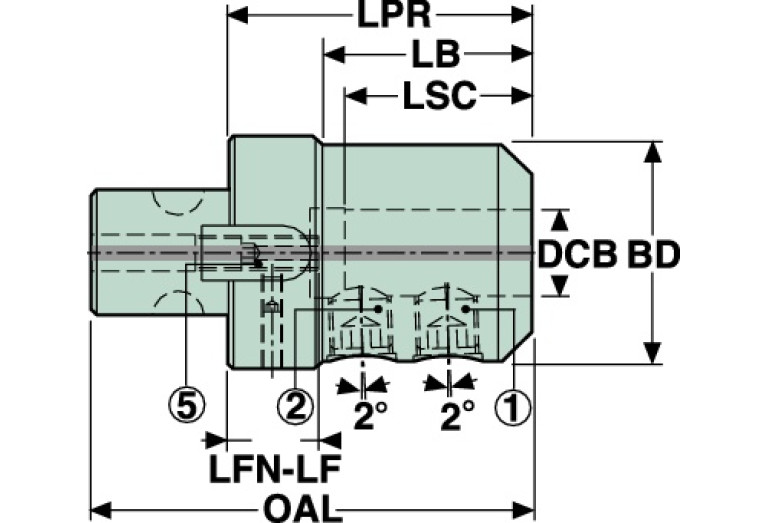

BLQ Balance quality code

COMPC Company code

SO - SECO Tools

DCONWS Diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

DIN

SO-GMS006001M0

FamilyProducts

M58433632

ID Technical product number

00076785

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

54 mm

LF Functional length

22 mm

LOC-01 DCONWS Diameter

32 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

GMS Graflex modular connection SECO

LOC-03 CZCMS Connection size code

0060

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SO-GMS006001M0

LPR Protruding length

80 mm

LSCX Clamping length maximum

58 mm

Name Identifying order number

M58433632

OAL Overall length

120 mm

WT Weight of item

2.1 kg

Диаметр корпуса (BD) / Body diameter (BD)

72 mm
