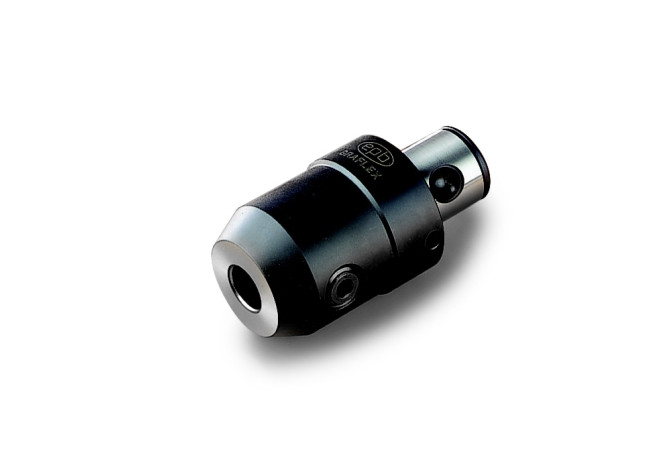

Главная Каталог продукции Toolunited 17 401-00 - Adaptive item converter, extender, reducer unspecified M58432820

M58432820

Артикул: 00076775

В наличии

В корзину

Описание

Характеристики

BD Body diameter

52 mm

BLQ Balance quality code

COMPC Company code

SO - SECO Tools

DCONWS Diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

DIN

SO-GMS005001M0

FamilyProducts

M58432820

ID Technical product number

00076775

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

45 mm

LF Functional length

25 mm

LOC-01 DCONWS Diameter

20 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

GMS Graflex modular connection SECO

LOC-03 CZCMS Connection size code

0050

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SO-GMS005001M0

LPR Protruding length

65 mm

LSCX Clamping length maximum

49 mm

Name Identifying order number

M58432820

OAL Overall length

95 mm

WT Weight of item

0.98 kg
