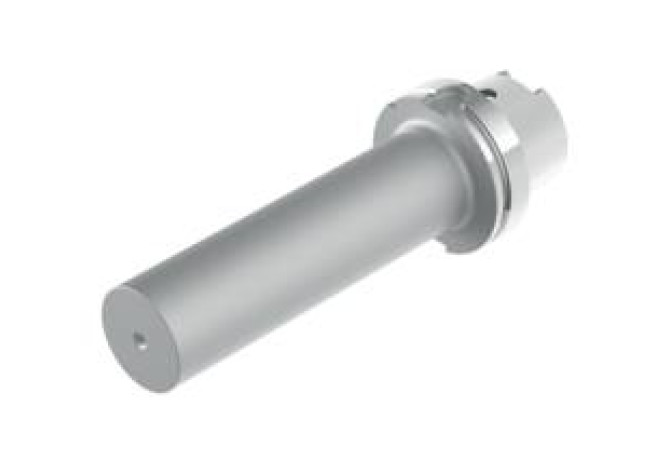

Главная Каталог продукции Toolunited 17 401-00 - Adaptive item converter, extender, reducer unspecified E9302502340150

E9302502340150

Артикул: 00007486

В наличии

В корзину

Описание

Характеристики

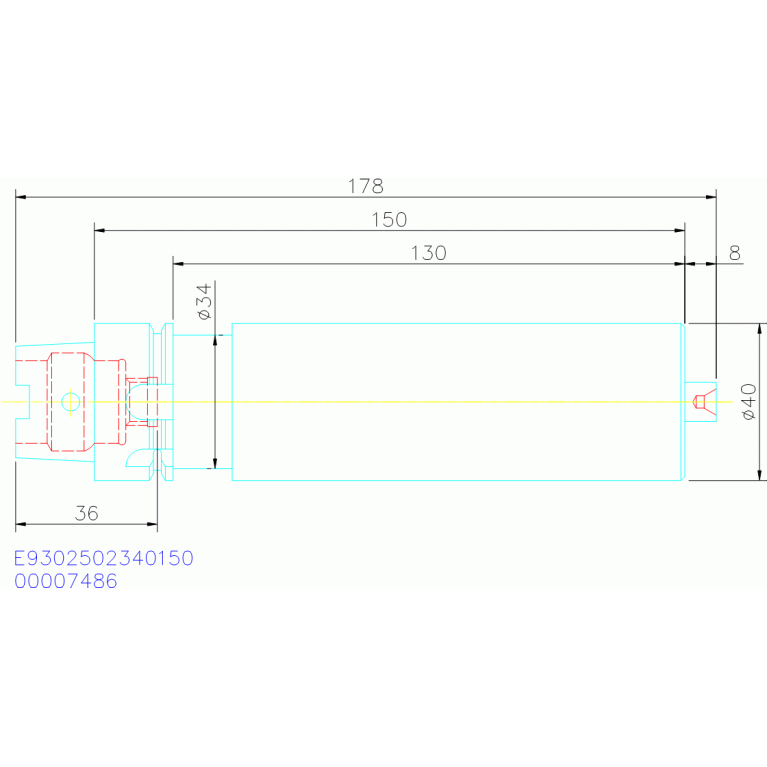

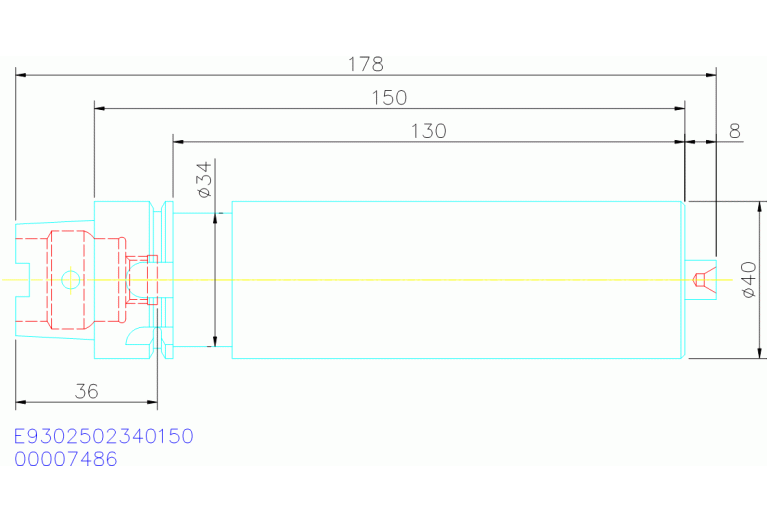

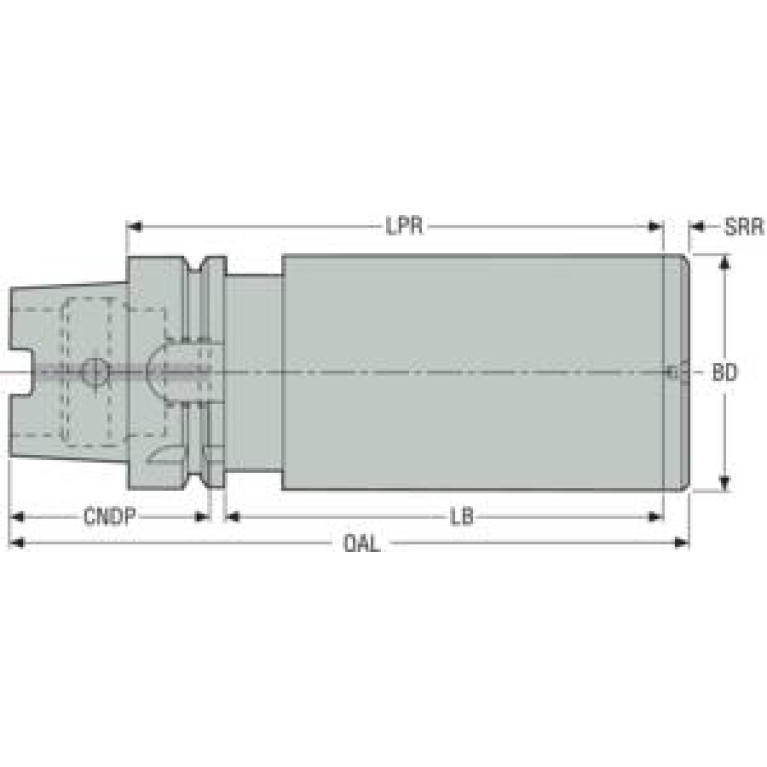

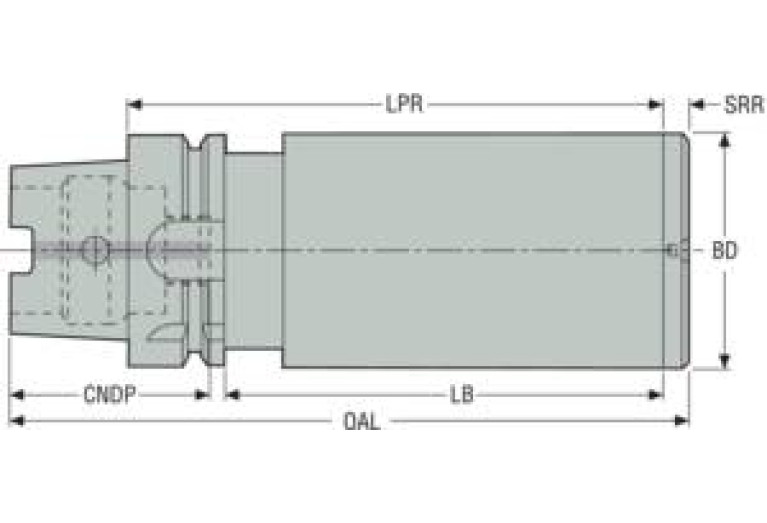

BD Body diameter

40 mm

BLQ Balance quality code

COMPC Company code

SO - SECO Tools

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

HSK04000185

FamilyProducts

E9302502340150

HAND Cutting direction

N - Neutral

ID Technical product number

00007486

Interface codes

J6 / J61

ISO

HSK01C0400$$$$

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

130 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0400

LOC-03 ISO

HSK01C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK04000185

LPR Protruding length

150 mm

Name Identifying order number

E9302502340150

OAL Overall length

178 mm

WT Weight of item

1.504 kg
