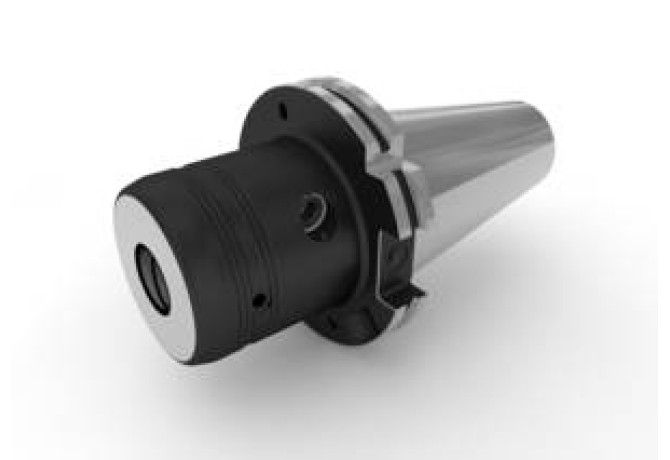

Главная Каталог продукции Toolunited 17 401-00 - Adaptive item converter, extender, reducer unspecified E346958351680

E346958351680

Артикул: 03081946

В наличии

В корзину

Описание

Характеристики

BD Body diameter 2

61.5 mm

BLQ Balance quality code

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0160

DCONWS Diameter

16 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

3/14/2020

DIN

SKG04001795

FamilyProducts

E346958351680

HAND Cutting direction

N - Neutral

ID Technical product number

03081946

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

45 mm

LF Functional length

40 mm

LOC-01 CZCWS Connection size code

0160

LOC-01 DCONWS Diameter

16 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04001795

LPR Protruding length

80 mm

Name Identifying order number

E346958351680

OAL Overall length

148.4 mm

TA Taper angle

30 Degree

WT Weight of item

1.8 kg

Диаметр корпуса (BD) / Body diameter (BD)

55 mm
