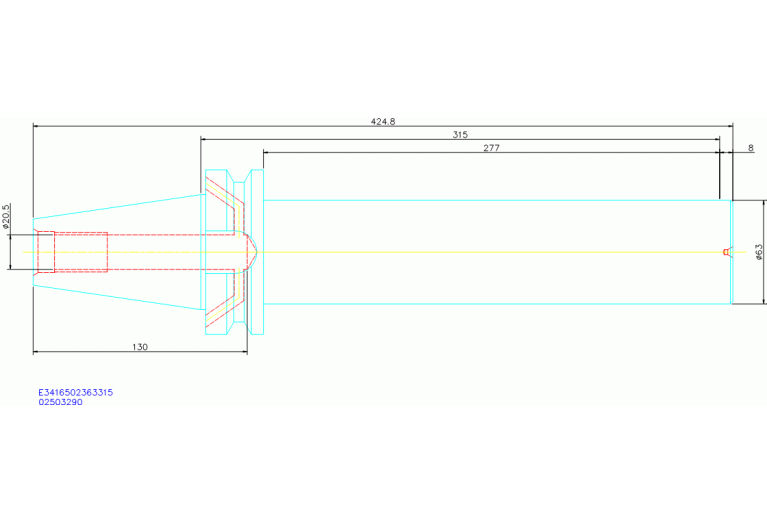

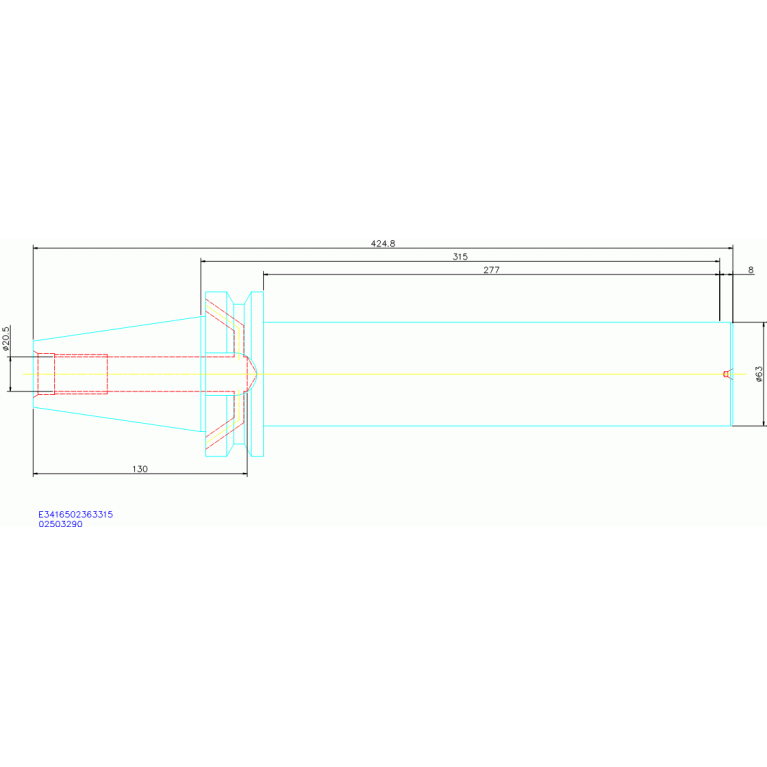

E3416502363315

Артикул: 02503290

В наличии

В корзину

Описание

Характеристики

BD Body diameter

63 mm

BLQ Balance quality code

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

1 - With data chip

Delivery state valid from

3/14/2020

DIN

SKG05005795

FamilyProducts

E3416502363315

HAND Cutting direction

N - Neutral

ID Technical product number

02503290

Interface codes

J6 / J61

ISO

SKG57C0500$$$$

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

277 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SKG57C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05005795

LPR Protruding length

315 mm

Name Identifying order number

E3416502363315

OAL Overall length

424.8 mm

WT Weight of item

10.42 kg
