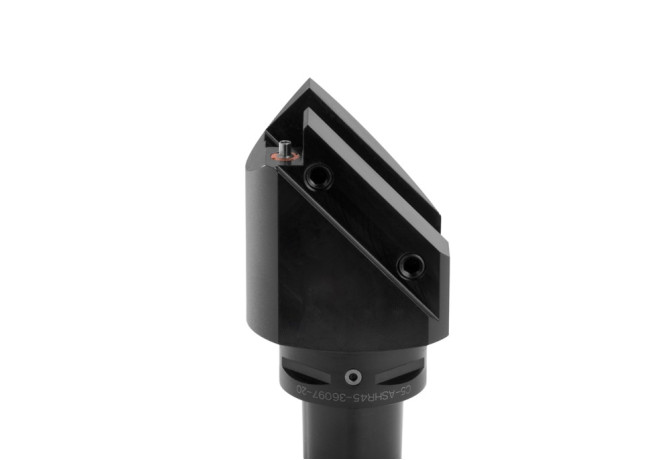

Главная Каталог продукции Toolunited 17 401-00 - Adaptive item converter, extender, reducer unspecified C6-ASHR45-36099-20

C6-ASHR45-36099-20

Артикул: 02220834

В наличии

В корзину

Описание

Характеристики

COMPC Company code

SO - SECO Tools

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

DF Flange diameter

63 mm

DIN

CCS06300185

FamilyProducts

C6-ASHR45-36099-20

HAND Cutting direction

R - Right

HF Functional height

20 mm

ID Technical product number

02220834

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LF Functional length

85 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300185

Name Identifying order number

C6-ASHR45-36099-20

RADH Radial height

28 mm

RADW Radial width

28 mm

WF Functional width

15 mm

WT Weight of item

0.1 kg
