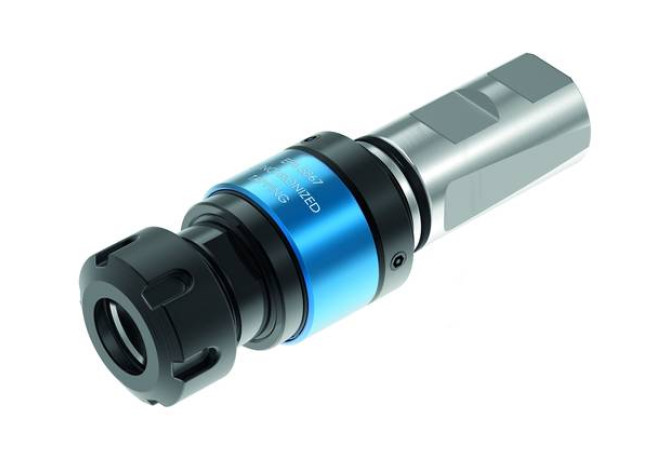

Главная Каталог продукции Toolunited 17 401-00 - Adaptive item converter, extender, reducer unspecified BW225586740117

BW225586740117

Артикул: 02926950

В наличии

В корзину

Описание

Характеристики

BD Body diameter

63 mm

BLQ Balance quality code

CCSWS Connection code style

CCTWS Connection code type

SZD

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DLN Diameter lock nut

62 mm

FamilyProducts

BW225586740117

HAND Cutting direction

N - Neutral

ID Technical product number

02926950

Interface codes

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

45.7 mm

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Connection code unit base

8 non-dimensional size

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LPR Protruding length

112.1 mm

Name Identifying order number

BW225586740117

OAL Overall length

162.9 mm

WT Weight of item

2.1 kg
