Главная Каталог продукции Toolunited 17 401-04 - Reducer, primary design C8 RE C3X060

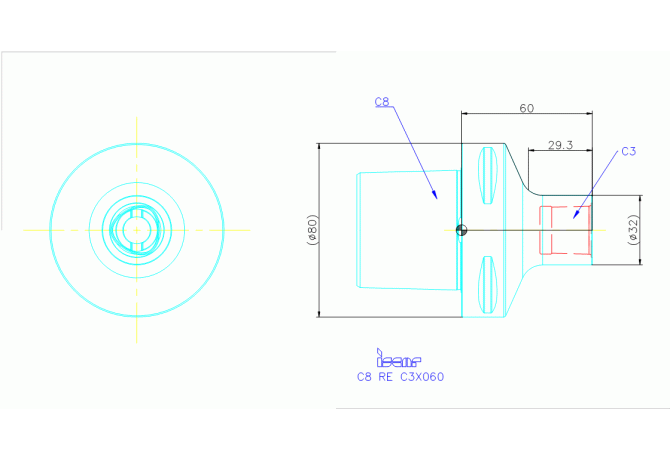

C8 RE C3X060

C8 RE C3X060 C8 RE C3X060

C8 RE C3X060

Iscar
Артикул: 4510346
В наличии
В корзину
Описание
Характеристики
ADJHT Adujstment height property
0
BD Body diameter
32 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
CCS
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0320
DCINTF Interference cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/21/2016
DF Flange diameter
80 mm
DIN
CCS08000195
FamilyProducts
CAMFIX Reducer Adapter
HAND Cutting direction
N - Neutral
ID Technical product number
4510346
Interface codes
J6 /
ISYC Subclass
401-04 - Reducer, primary design
LAM Actuation method
0 - manual clamping
LB Body length 1
29.3 mm
LF Functional length
60 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0320
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS03200195
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0800
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000195
LPR Protruding length
60 mm
Name Identifying order number
C8 RE C3X060
WT Weight of item
1.7 kg
