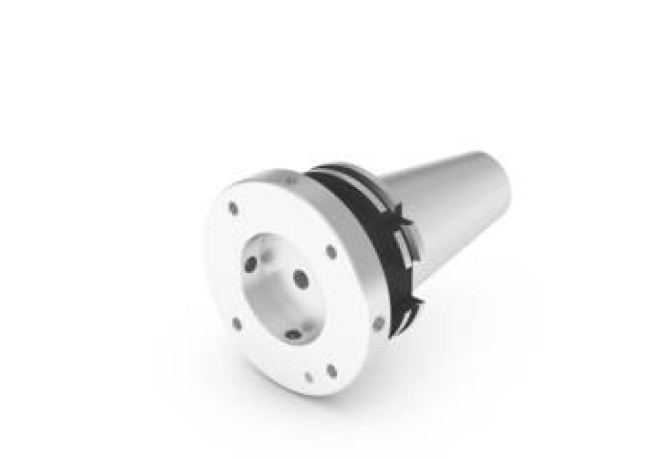

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric SAH-2784940202

SAH-2784940202

SAH-2784940202 SAH-2784940202 SAH-2784940202 SAH-2784940202

SAH-2784940202

Seco
Артикул: 02836702
В наличии
В корзину
Описание
Характеристики

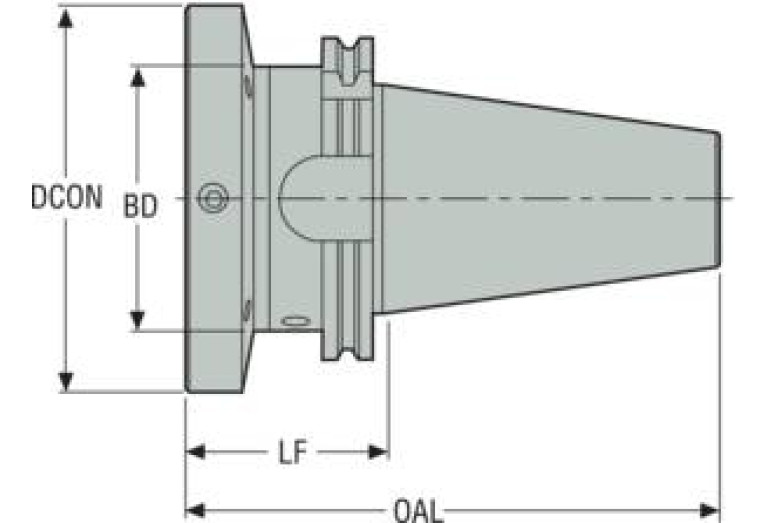

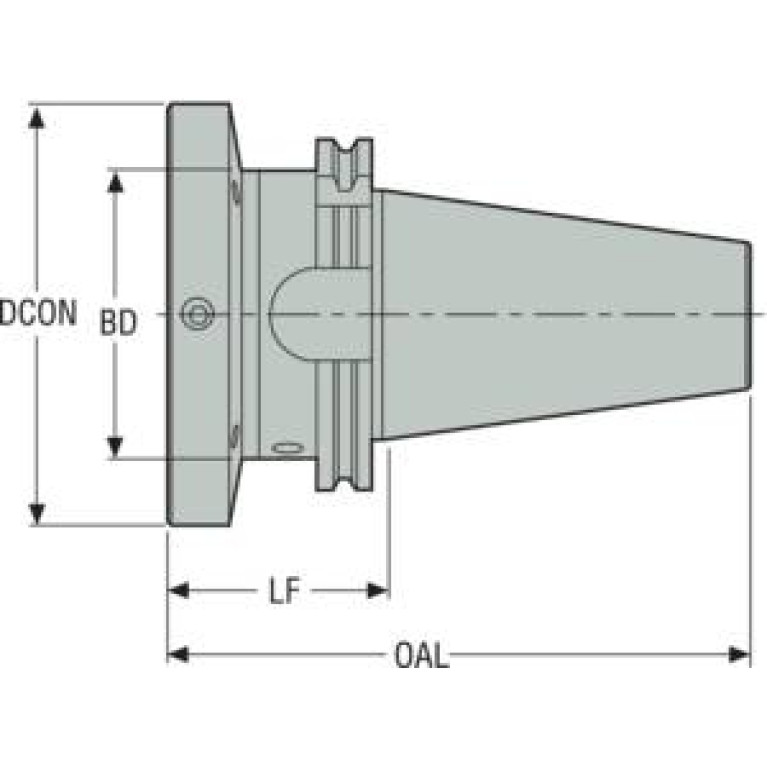

BD Body diameter
44.45 mm
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FLS
CCUWS Connection code unit base
9
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0445
DCONWS Diameter
80 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2018
DIN
SKG04004795
FamilyProducts
SAH-2784940202
HAND Cutting direction
N - Neutral
ID Technical product number
02836702
Interface codes
J6 / J61
ISO
SKG47C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LF Functional length
55 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FLS Flange mounting Sandvik CDI
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0445
LOC-01 DCONWS Diameter
80 mm
LOC-01 ISO
FLS02G4450$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FLS04450290
LOC-02 DCONWS Diameter
80 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-FLS080001M0
LOC-03 CCFMS Connection code form
47
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG47C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04004795
Name Identifying order number
SAH-2784940202
OAL Overall length
123.4 mm
WT Weight of item
1.5 kg
