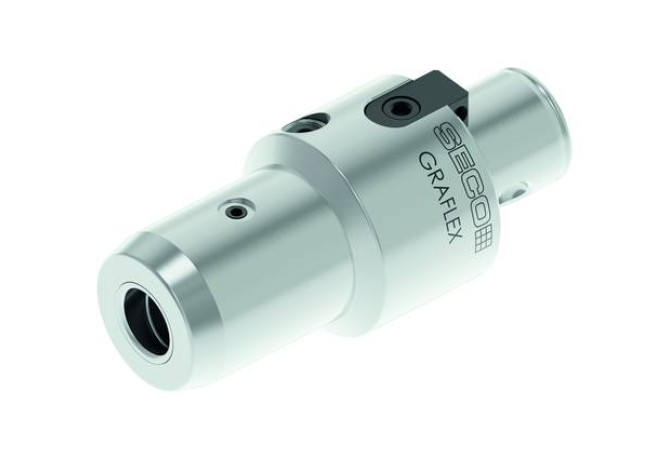

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric M58343632

M58343632

M58343632 M58343632 M58343632 M58343632

M58343632

Seco
Артикул: 00039001
В наличии
В корзину
Описание
Характеристики
BD Body diameter 2
63 mm
BLQ Balance quality code
PB
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0320
DCONWS Diameter
32 mm
DCONXWS Connection diameter max
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
GMS06300115
FamilyProducts
M58343632
HAND Cutting direction
N - Neutral
ID Technical product number
00039001
Interface codes
J6 / J61
ISO
GMS01G6300$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
60 mm
LF Functional length
62 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0320
LOC-01 DCONWS Diameter
32 mm
LOC-01 DCONXWS Connection diameter max
32 mm
LOC-01 ISO
ZYL01G3200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL03200105
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GMS Graflex modular connection SECO
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
GMS01G6300$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
GMS06300115
LPR Protruding length
100 mm
Name Identifying order number
M58343632
OAL Overall length
140 mm
TA Taper angle
30 Degree
WT Weight of item
2.27 kg
Диаметр корпуса (BD) / Body diameter (BD)
63 mm
