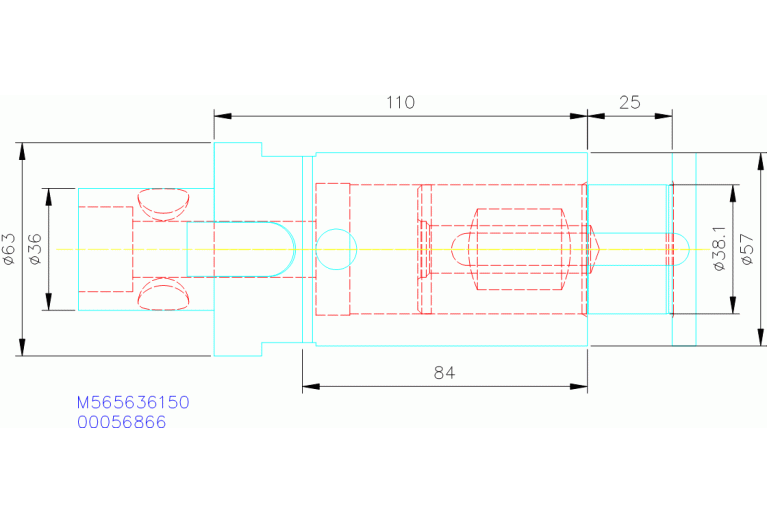

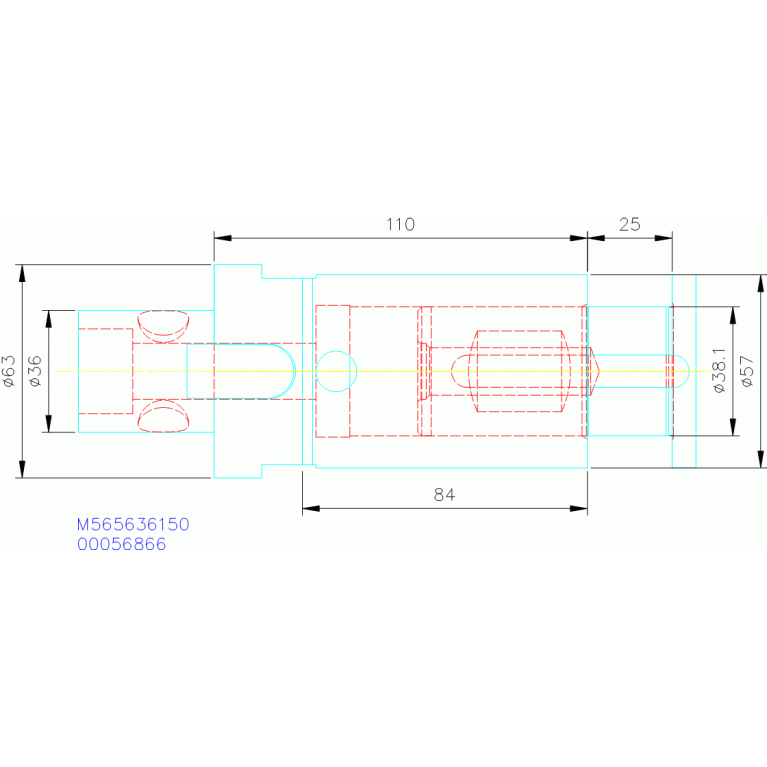

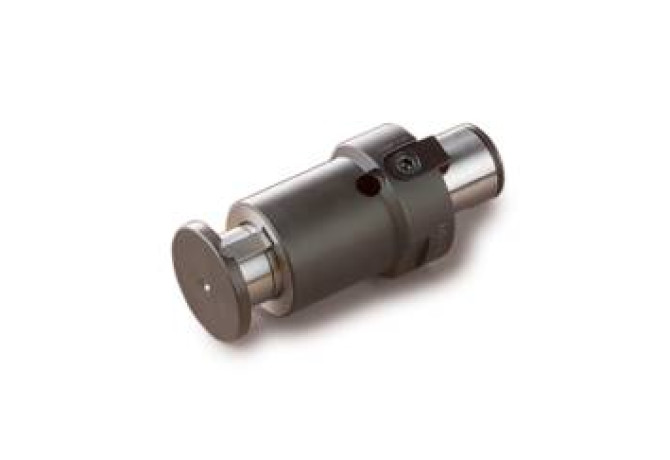

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric M565636150

M565636150

M565636150 M565636150 M565636150 M565636150

M565636150

Seco
Артикул: 00056866
В наличии
В корзину
Описание
Характеристики

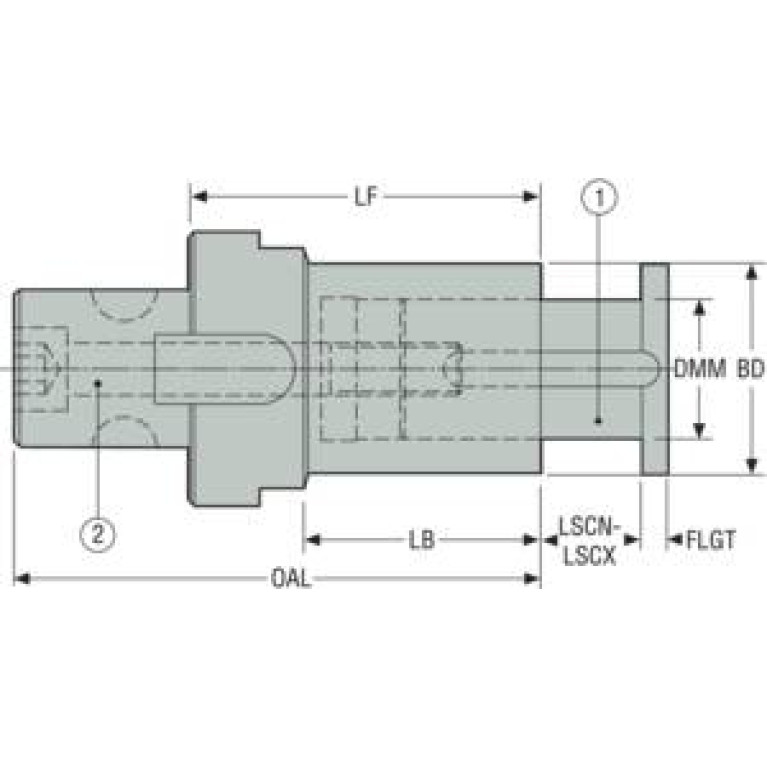

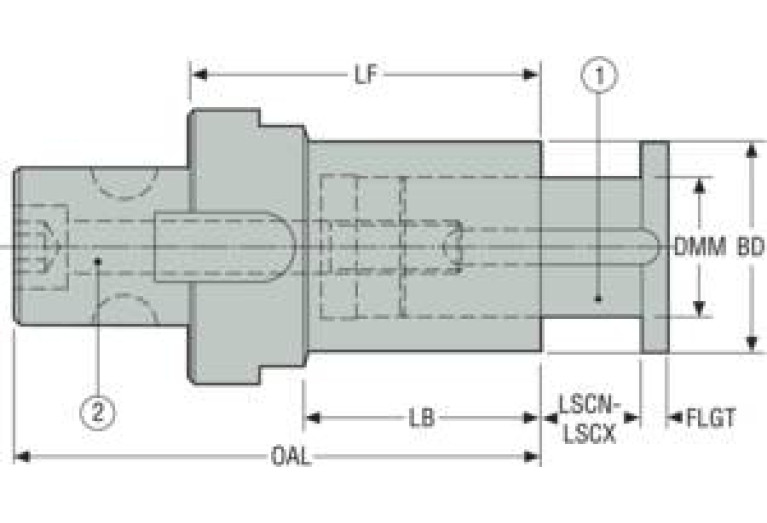

BD Body diameter
57.912 mm
BLQ Balance quality code
PB
CCFWS Connection code form
01
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
2
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
1500
DCONWS Diameter
38.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
GMS06300115
FamilyProducts
M565636150
HAND Cutting direction
N - Neutral
ID Technical product number
00056866
Interface codes
J6 / J61
ISO
GMS01G6300$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
84.074 mm
LF Functional length
109.982 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
2 Inch
LOC-01 CZCWS Connection size code
1500
LOC-01 DCONWS Diameter
38.1 mm
LOC-01 ISO
FDA01S1500****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA15000120
LOC-02 DCONWS Diameter
38.1 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-FDA150001N0
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GMS Graflex modular connection SECO
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
GMS01G6300$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
GMS06300115
LSCN Clamping length minimum
0 mm
LSCX Clamping length maximum
24.892 mm
Name Identifying order number
M565636150
OAH Overall height
24.892 mm
OAL Overall length
149.982 mm
WT Weight of item
2.72 kg
