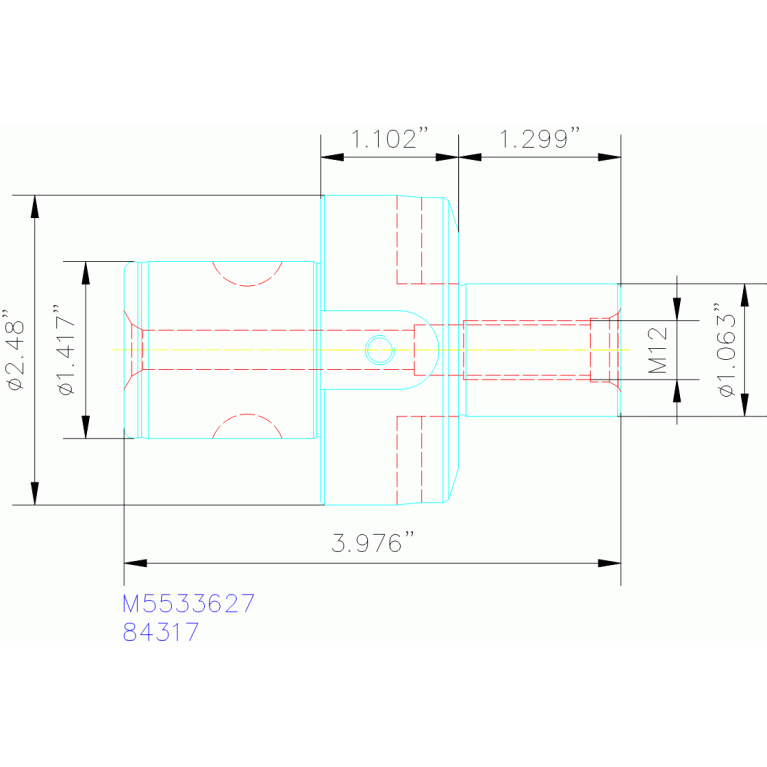

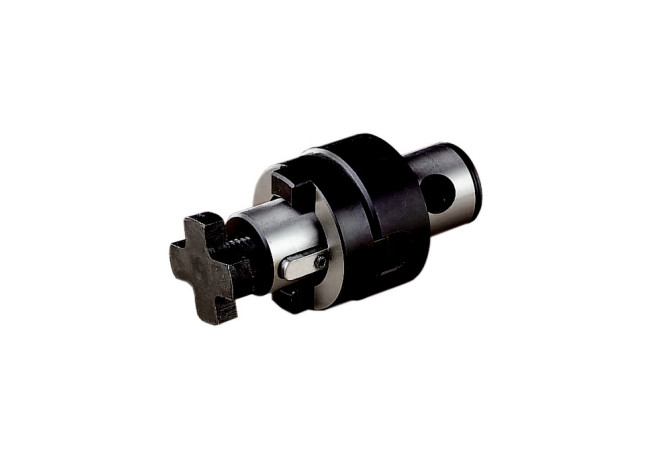

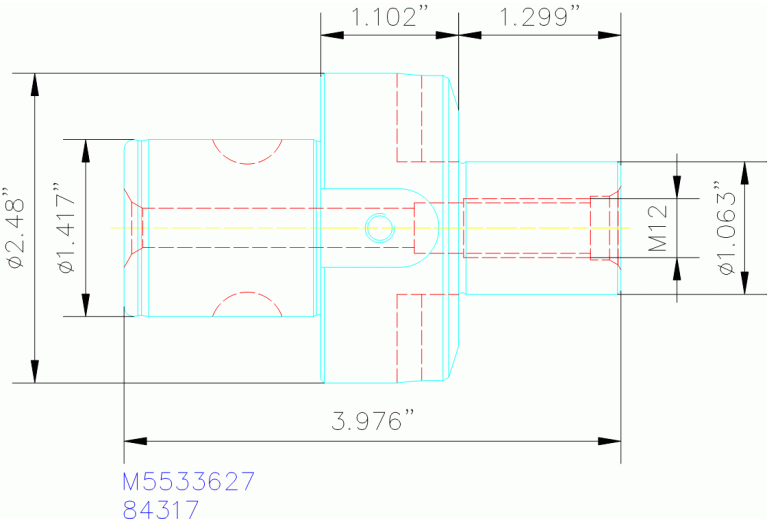

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric M5533627

M5533627

M5533627 M5533627 M5533627 M5533627

M5533627

Seco
Артикул: 00084317
В наличии
В корзину
Описание
Характеристики
CCFWS Connection code form
01
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
0
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0270
DCONWS Diameter
27 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
SO-GMS006001M0
FamilyProducts
M5533627
HAND Cutting direction
N - Neutral
ID Technical product number
00084317
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric

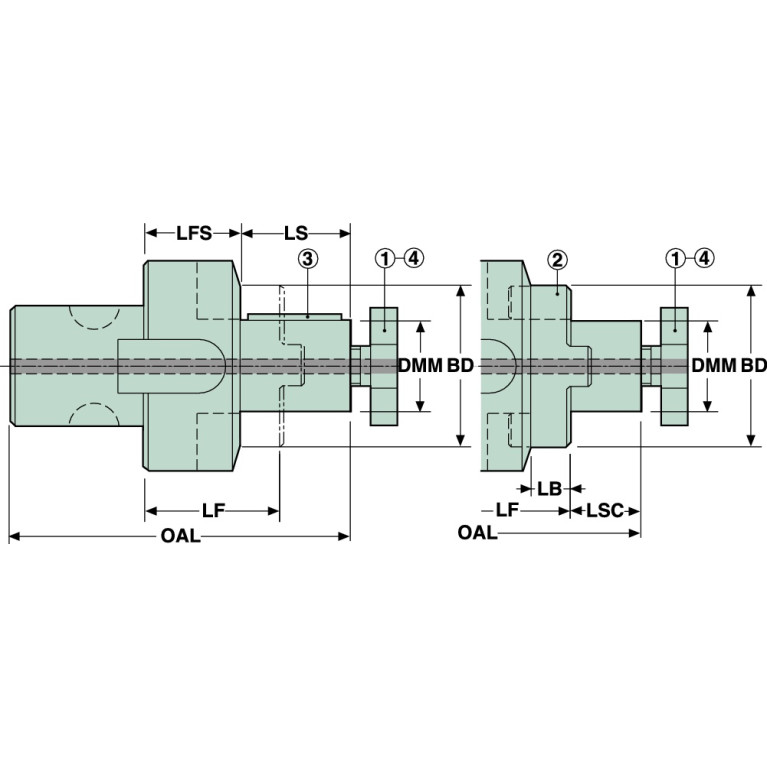

LB Body length 1
12 mm
LF Functional length
40 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0270
LOC-01 DCONWS Diameter
27 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02700100
LOC-02 DCONWS Diameter
27 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-FDA027001M0
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GMS Graflex modular connection SECO
LOC-03 CZCMS Connection size code
0060
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SO-GMS006001M0
LS Shank length
33 mm
LSCX Clamping length maximum
21 mm
Name Identifying order number
M5533627
OAL Overall length
101 mm
WT Weight of item
1.1 kg
Диаметр корпуса (BD) / Body diameter (BD)
48 mm
