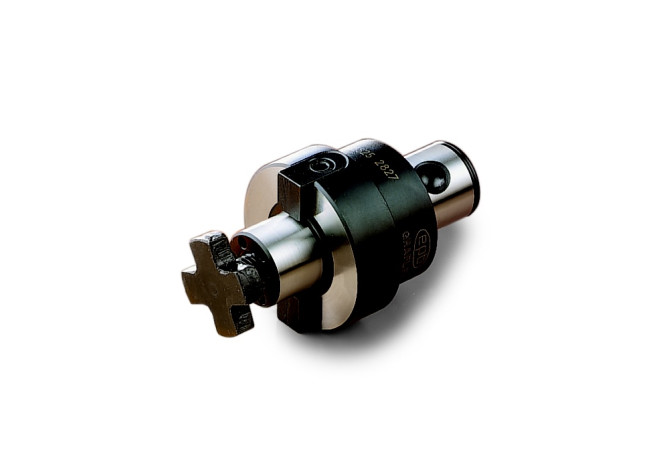

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric M552546200

M552546200

M552546200 M552546200 M552546200 M552546200

M552546200

Seco
Артикул: 14000764
В наличии
В корзину
Описание
Характеристики

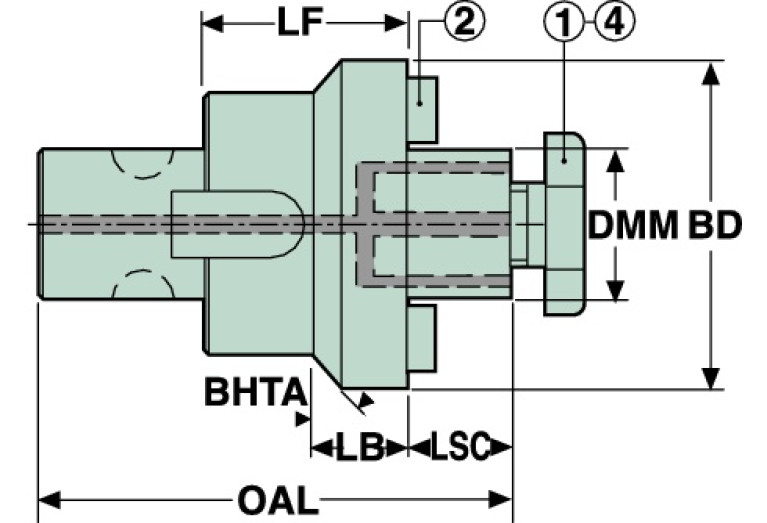

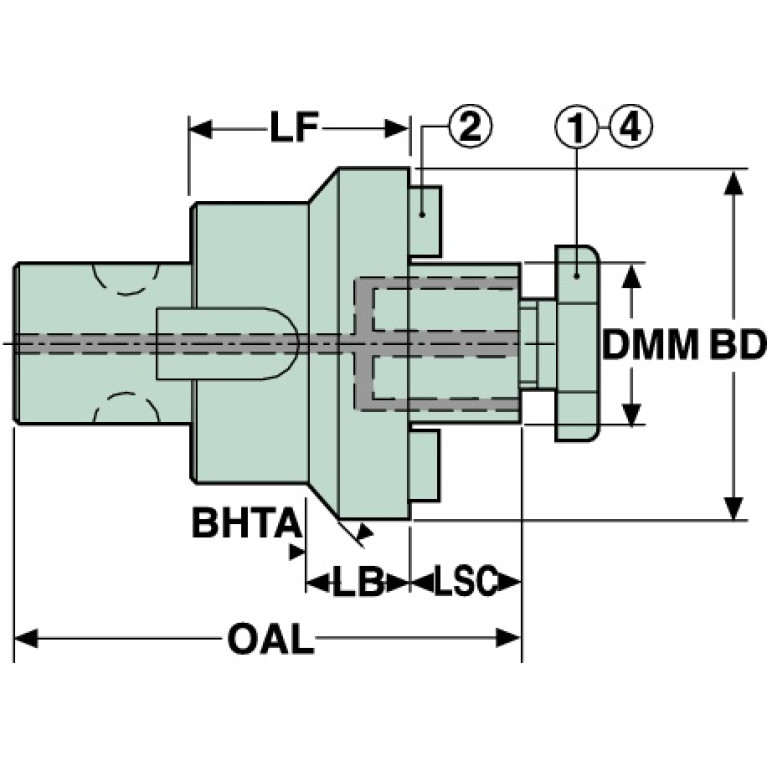

BD Body diameter
123.698 mm
BLQ Balance quality code
2
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
2000
DCONWS Diameter
50.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
SO-GMS007001M0
FamilyProducts
M552546200
HAND Cutting direction
N - Neutral
ID Technical product number
14000764
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
36.83 mm
LF Functional length
50.8 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
2 Inch
LOC-01 CZCWS Connection size code
2000
LOC-01 DCONWS Diameter
50.8 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA20000220
LOC-02 DCONWS Diameter
50.8 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-FDA200022N0
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GMS Graflex modular connection SECO
LOC-03 CZCMS Connection size code
0070
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SO-GMS007001M0
LSCX Clamping length maximum
23.876 mm
Name Identifying order number
M552546200
OAL Overall length
100.8 mm
WT Weight of item
4.92 kg
