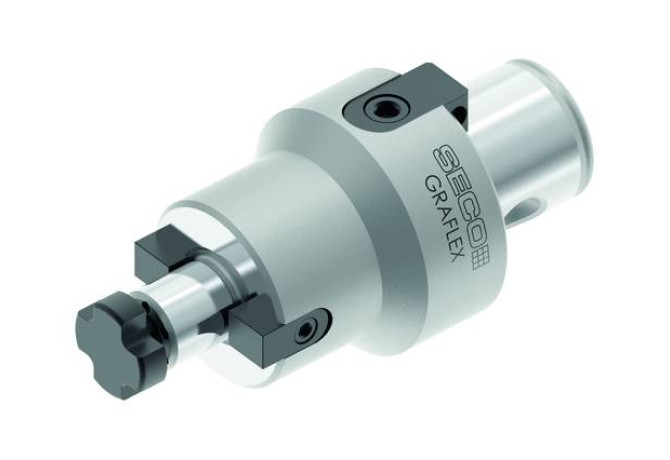

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric M55253622

M55253622

M55253622 M55253622 M55253622 M55253622

M55253622

Seco
Артикул: 02422067
В наличии
В корзину
Описание
Характеристики

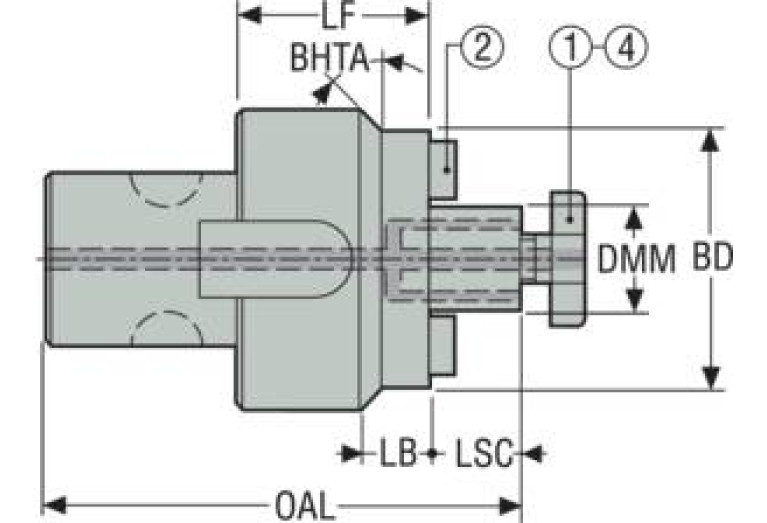

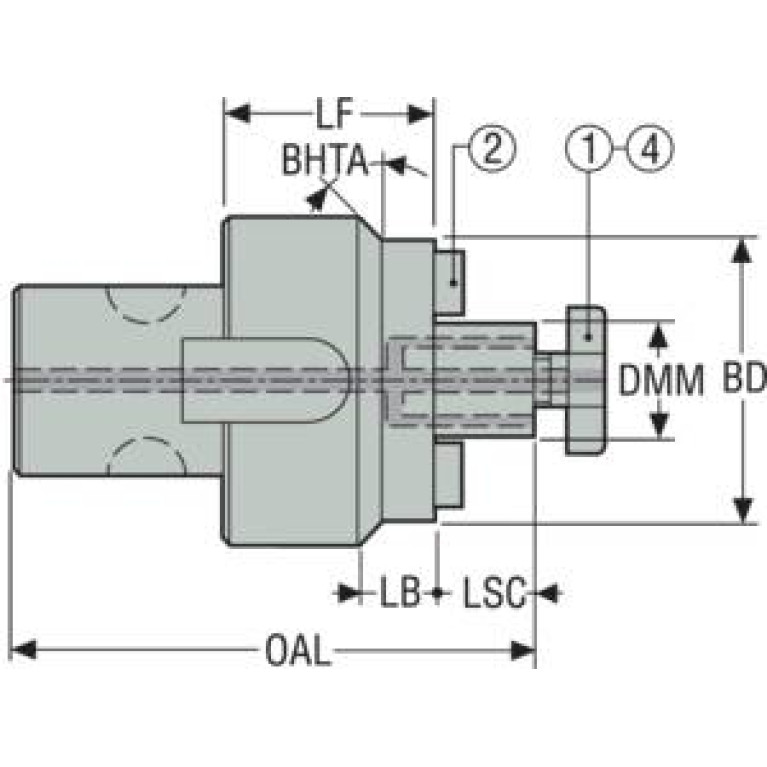

BD Body diameter
48 mm
BLQ Balance quality code
PB
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
0
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0220
DCONWS Diameter
22 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
GMS06300115
FamilyProducts
M55253622
HAND Cutting direction
N - Neutral
ID Technical product number
02422067
Interface codes
J6 / J61
ISO
GMS01G6300$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
6.5 mm
LF Functional length
40 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0220
LOC-01 DCONWS Diameter
22 mm
LOC-01 ISO
FDA02G2200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02200200
LOC-02 DCONWS Diameter
22 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-FDA022002M0
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GMS Graflex modular connection SECO
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
GMS01G6300$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
GMS06300115
LSCX Clamping length maximum
19 mm
Name Identifying order number
M55253622

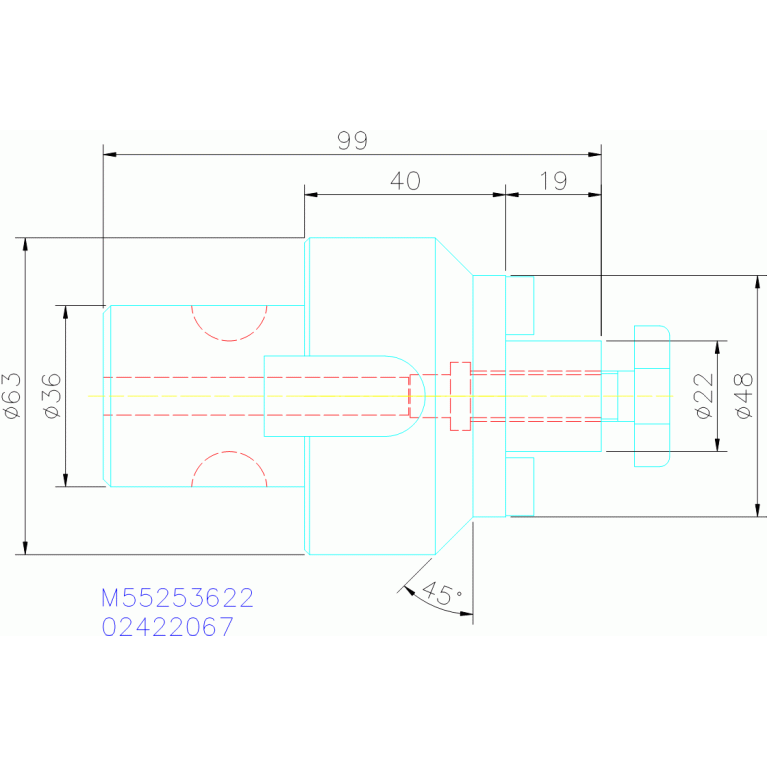

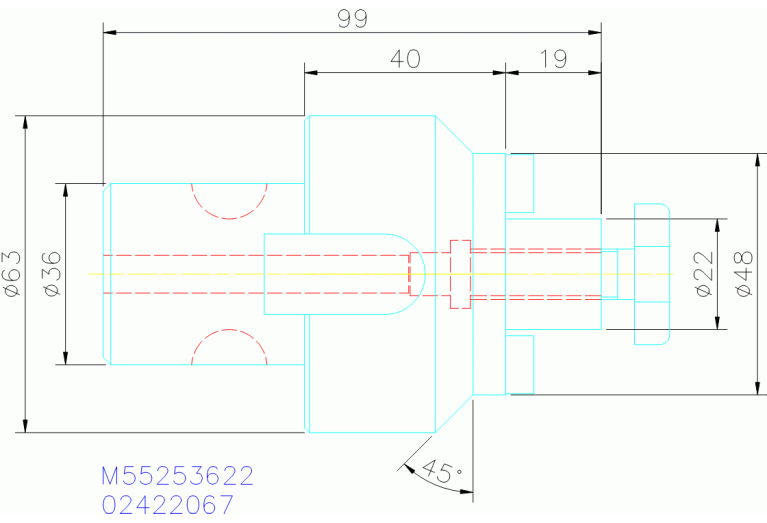

OAL Overall length
80 mm
TA Taper angle
45 Degree
WT Weight of item
1.195 kg
