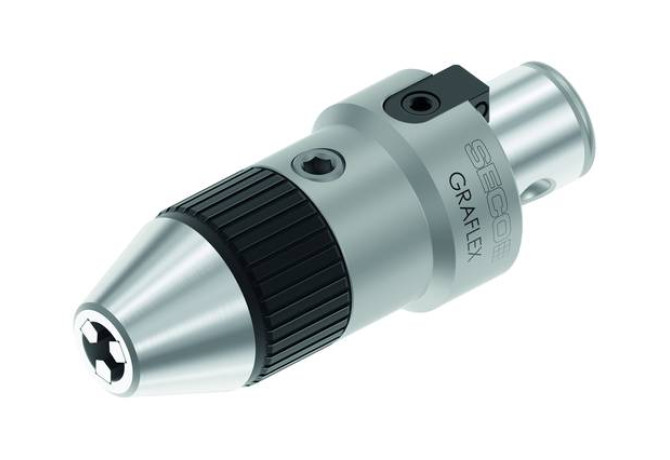

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric M50853616L

M50853616L

M50853616L M50853616L M50853616L M50853616L

M50853616L

Seco
Артикул: 00055943
В наличии
В корзину
Описание
Характеристики

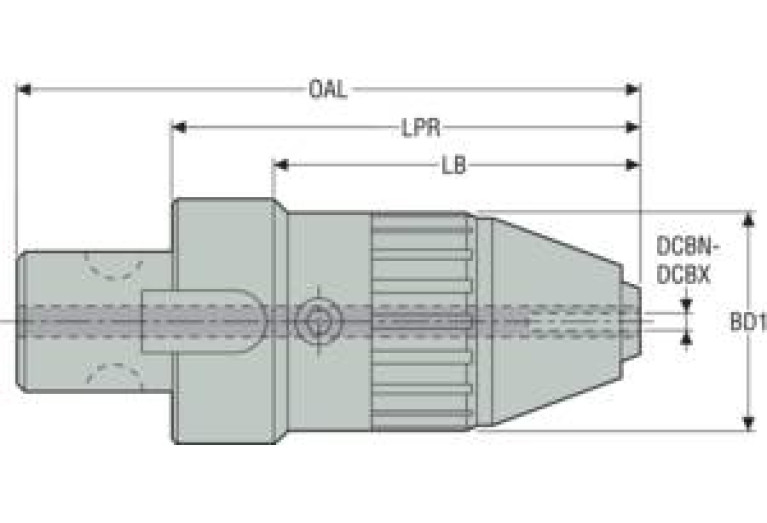

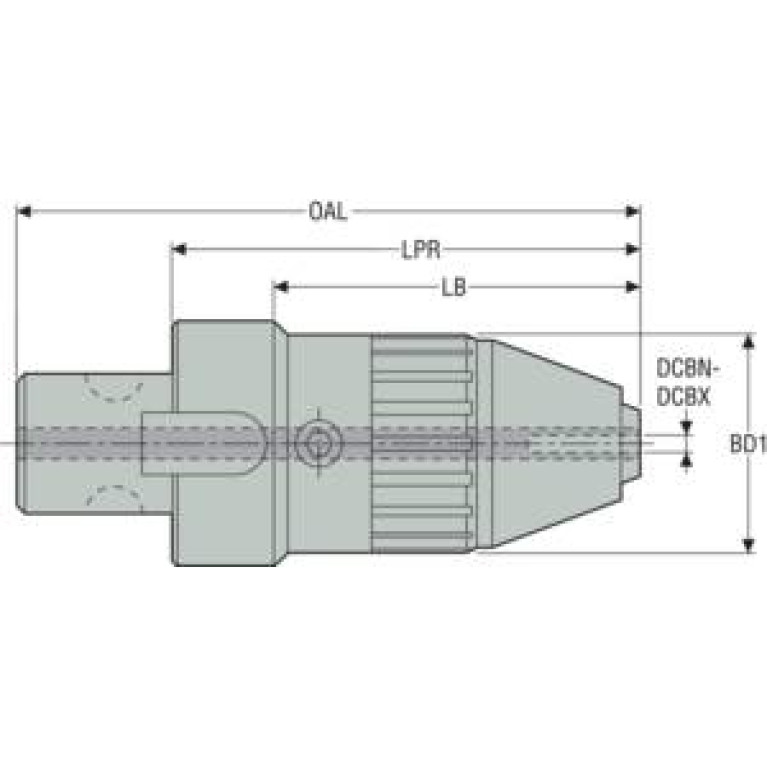

BD Body diameter
56 mm
BLQ Balance quality code
PB
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0250
DCONWS Diameter
2.5 mm
DCONXWS Connection diameter max
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
GMS06300115
FamilyProducts
M50853616L
HAND Cutting direction
N - Neutral
ID Technical product number
00055943
Interface codes
J6 / J61
ISO
GMS01G6300$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric

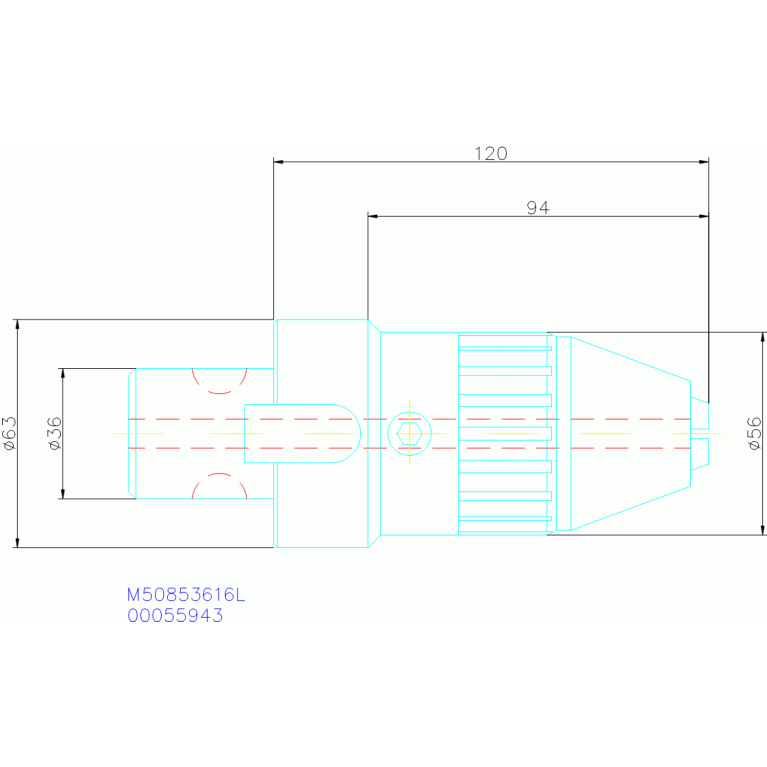

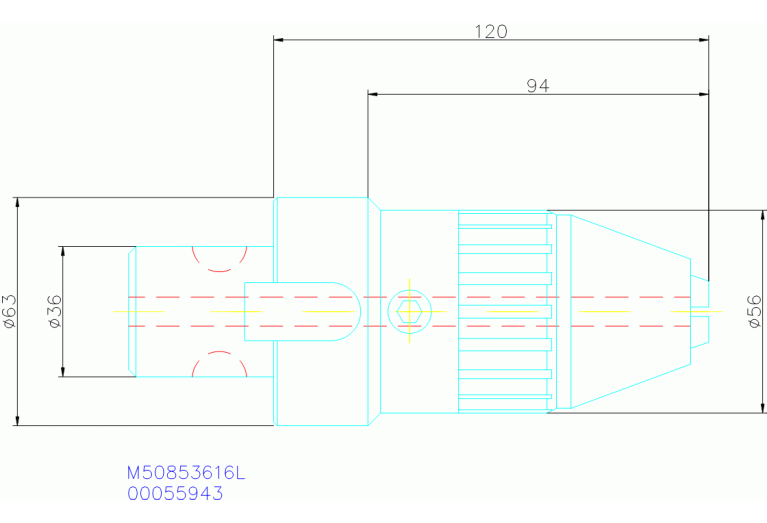

LB Body length 1
94 mm
LF Functional length
120 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0250
LOC-01 DCONWS Diameter
2.5 mm
LOC-01 DCONXWS Connection diameter max
16 mm
LOC-01 ISO
ZYL01F2500****ZYL01G1600****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02500105
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GMS Graflex modular connection SECO
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
GMS01G6300$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
GMS06300115
LPR Protruding length
120 mm
Name Identifying order number
M50853616L
OAL Overall length
160 mm
WT Weight of item
2.002 kg
