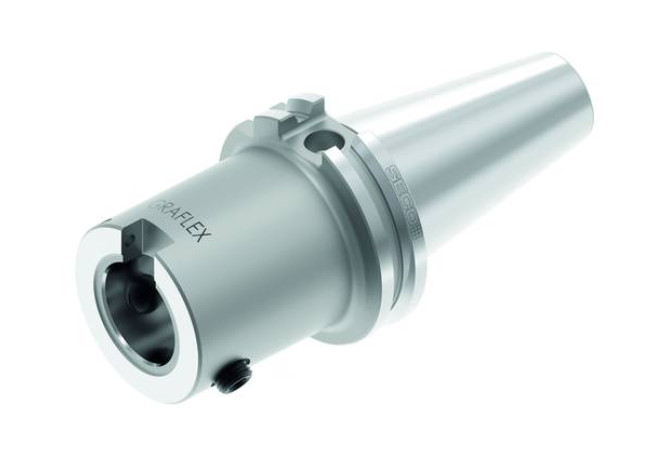

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric EM25024011835

EM25024011835

EM25024011835 EM25024011835 EM25024011835 EM25024011835

EM25024011835

Seco
Артикул: 00056660
В наличии
В корзину
Описание
Характеристики
BD Body diameter
44.45 mm
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
GMS
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0320
DCINTF Interference cutting diameter
32 mm
DCONWS Diameter
18 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG04003795
FamilyProducts
EM25024011835
HAND Cutting direction
N - Neutral
ID Technical product number
00056660
Interface codes
J6 / J61
ISO
SKG37C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
16.002 mm
LF Functional length
35.052 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
GMS Graflex modular connection SECO
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0320
LOC-01 DCONWS Diameter
18 mm
LOC-01 ISO
GMS01G3200$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
GMS03200115
LOC-02 DCONWS Diameter
18 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-GMS001001M0
LOC-03 CCFMS Connection code form
37
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG37C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04003795
Name Identifying order number
EM25024011835
OAL Overall length
103.378 mm
WT Weight of item
0.944 kg
