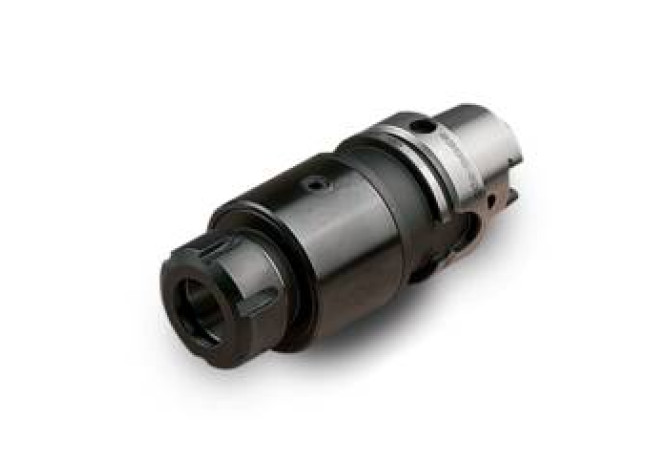

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E9306586540115

E9306586540115

E9306586540115 E9306586540115 E9306586540115 E9306586540115

E9306586540115

Seco
Артикул: 75041739
В наличии
В корзину
Описание
Характеристики

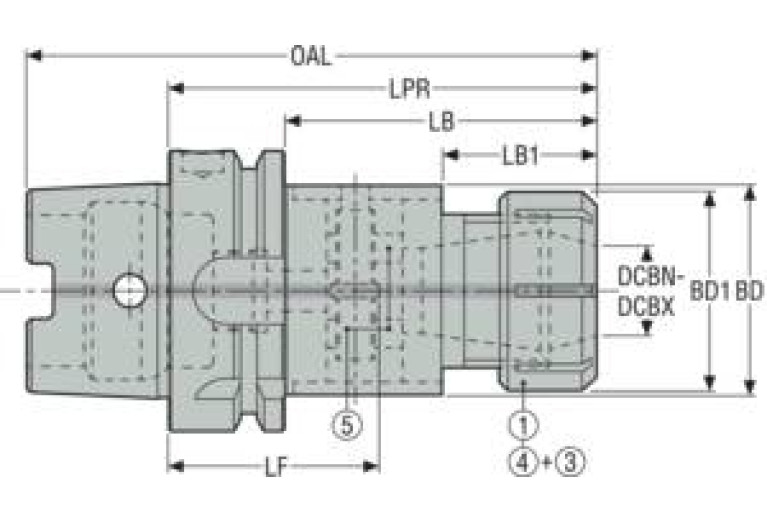

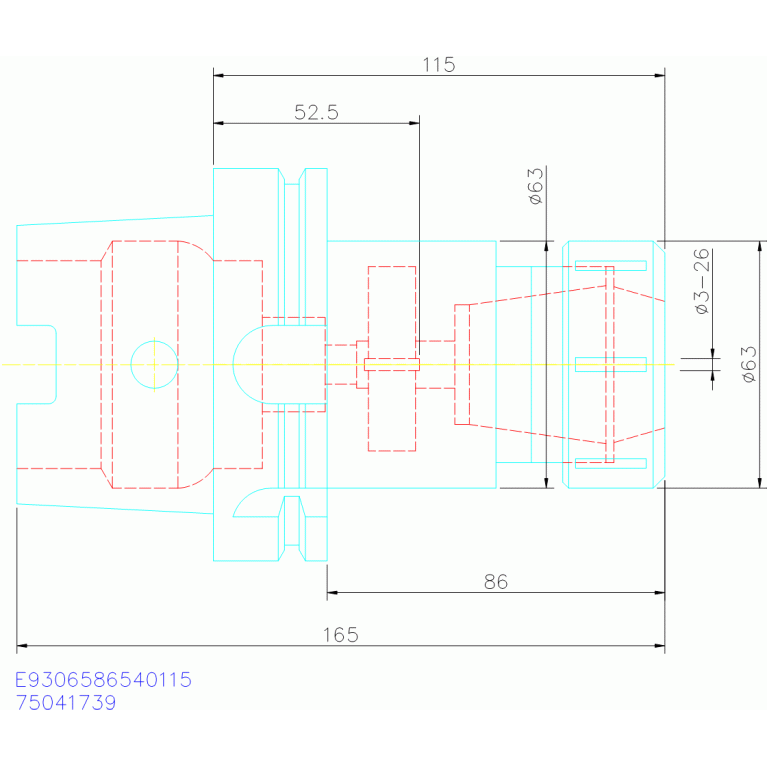

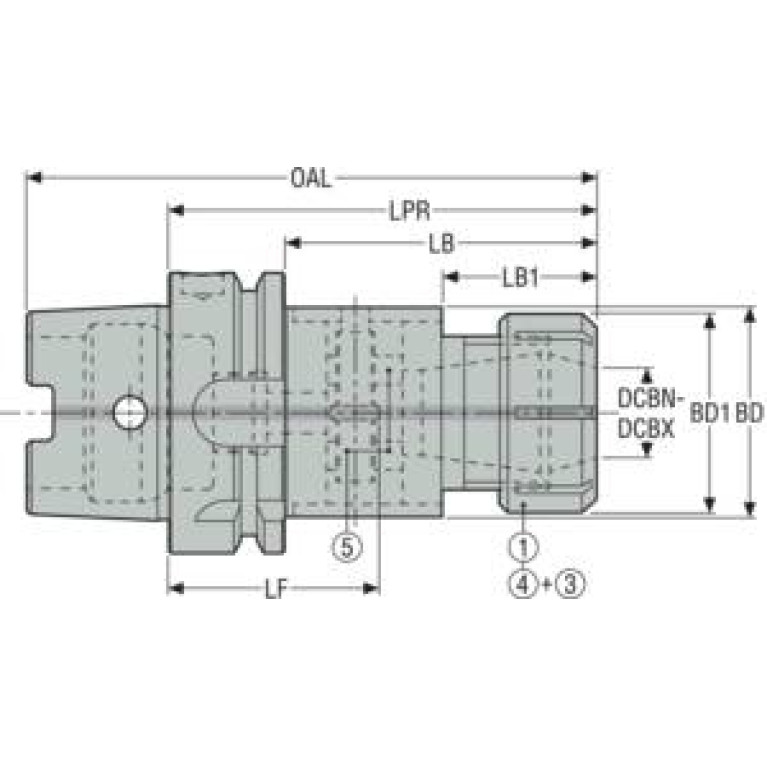

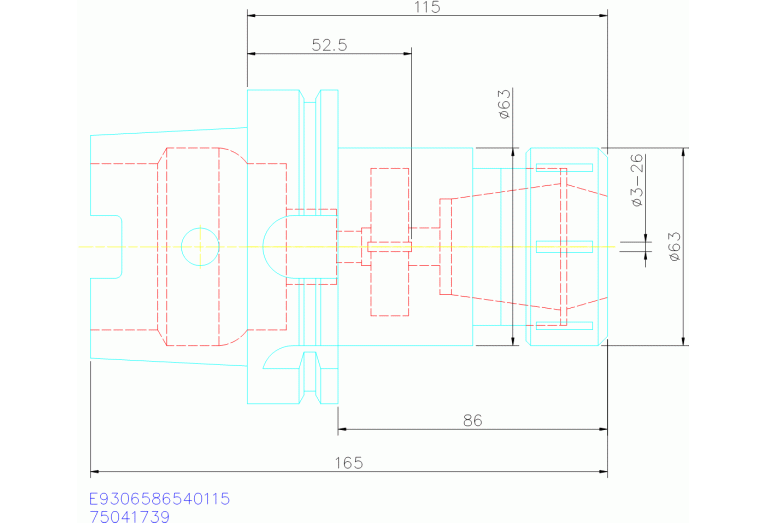

BD Body diameter
63 mm
BLQ Balance quality code
PB
CCFWS Connection code form
02
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
8
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0400
DCONWS Diameter
3 mm
DCONXWS Connection diameter max
26 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
HSK10000185
DLN Diameter lock nut
63 mm
FamilyProducts
E9306586540115
HAND Cutting direction
N - Neutral
ID Technical product number
75041739
Interface codes
J6 / J61
ISO
HSK01C1000$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
86 mm
LF Functional length
52.5 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
8 non-dimensional size
LOC-01 CZCWS Connection size code
0400
LOC-01 DCONWS Diameter
3 mm
LOC-01 DCONXWS Connection diameter max
26 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD04000285
LOC-02 DCONWS Diameter
3 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-SZD040002M0
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
1000
LOC-03 ISO
HSK01C1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000185
LPR Protruding length
115 mm
Name Identifying order number
E9306586540115
OAL Overall length
165 mm
WT Weight of item
3.2 kg
