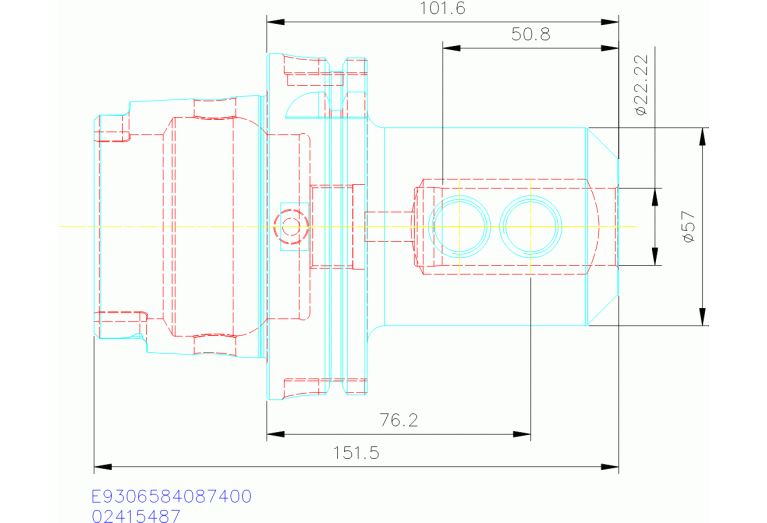

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E9306584087400

E9306584087400

E9306584087400

Seco

Артикул: 02415487

В наличии

В корзину

Описание

Характеристики

BD Body diameter

57.15 mm

BLQ Balance quality code

PB

CCFWS Connection code form

10

CCSWS Connection code style

5

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

2

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0875

DCONWS Diameter

22.225 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

3/14/2020

DIN

HSK10000185

FamilyProducts

E9306584087400

HAND Cutting direction

N - Neutral

ID Technical product number

02415487

Interface codes

J6 / J61

ISO

HSK01C1000$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

72.6 mm

LOC-01 CCFWS Connection code form

10

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

2 Inch

LOC-01 CZCWS Connection size code

0875

LOC-01 DCONWS Diameter

22.225 mm

LOC-01 ISO

ZYL10R8750****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL08751025

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

1000

LOC-03 ISO

HSK01C1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000185

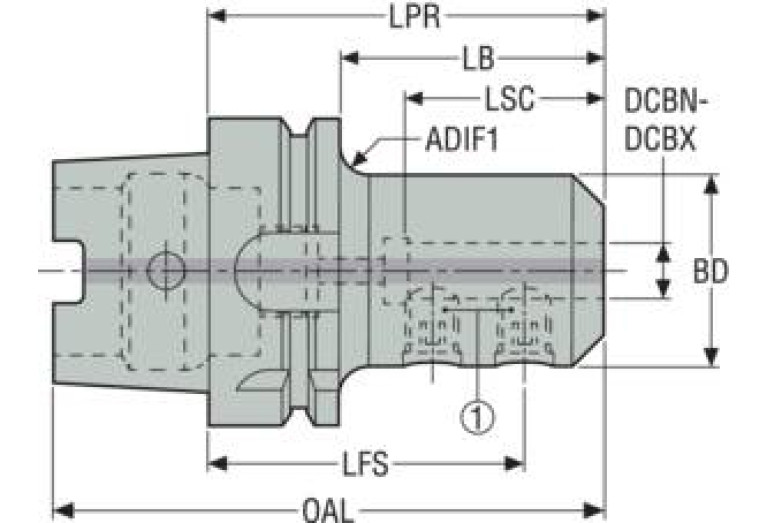

LPR Protruding length

101.6 mm

LSCX Clamping length maximum

50.8 mm

Name Identifying order number

E9306584087400

OAL Overall length

151.6 mm

WT Weight of item

3.13 kg
