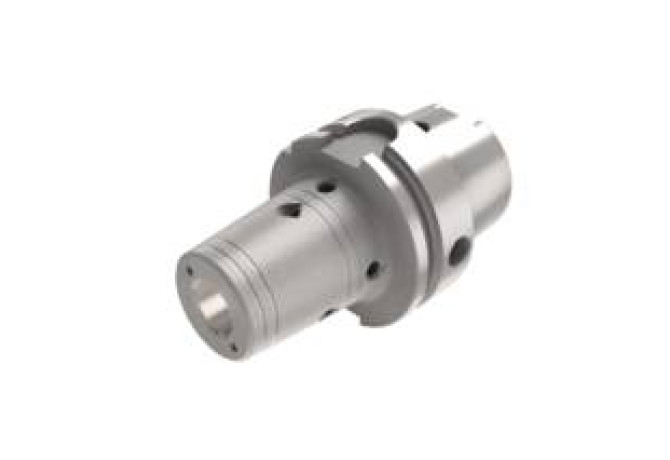

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E93045600062300P

E93045600062300P

E93045600062300P E93045600062300P E93045600062300P E93045600062300P

E93045600062300P

Seco
Артикул: 02882314
В наличии
В корзину
Описание
Характеристики
BD Body diameter
33 mm
BD Body diameter 2
40.8 mm
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
2
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0625
DCONWS Diameter
15.875 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
HSK06300185
FamilyProducts
E93045600062300P
HAND Cutting direction
N - Neutral
ID Technical product number
02882314
Interface codes
J6 / J61
ISO
HSK01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
49 mm
LF Functional length
36 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
2 Inch
LOC-01 CZCWS Connection size code
0625
LOC-01 DCONWS Diameter
15.875 mm
LOC-01 ISO
ZYL01R6250****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL06250125
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
HSK01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300185
LPR Protruding length
76.2 mm
LSCX Clamping length maximum
39 mm
Name Identifying order number
E93045600062300P
OAL Overall length
106.875 mm
TA Taper angle
4.5 Degree
WT Weight of item
1 kg
