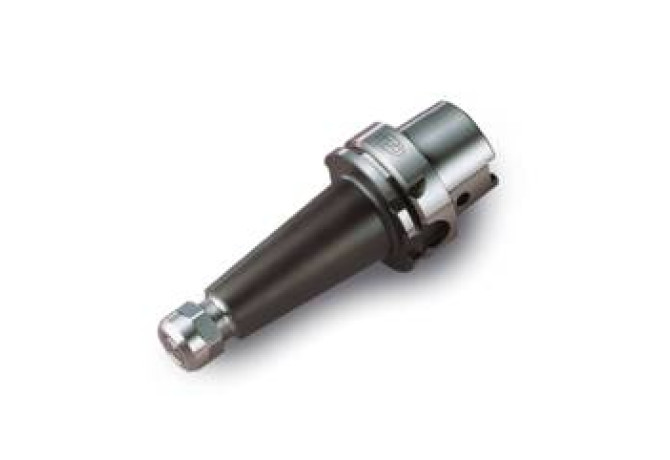

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E930258721660

E930258721660

E930258721660 E930258721660 E930258721660 E930258721660

E930258721660

Seco
Артикул: 00007788
В наличии
В корзину
Описание
Характеристики
BD Body diameter
27 mm
BLQ Balance quality code
G2.5
CCFWS Connection code form
17
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
8
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0160
DCONWS Diameter
0.5 mm
DCONXWS Connection diameter max
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
HSK04000185
FamilyProducts
E930258721660
HAND Cutting direction
N - Neutral
ID Technical product number
00007788
Interface codes
J6 / J61
ISO
HSK01C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
23.3 mm
LF Functional length
60 mm
LOC-01 CCFWS Connection code form
17
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
8 non-dimensional size
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
0.5 mm
LOC-01 DCONXWS Connection diameter max
10 mm
LOC-01 ISO
SZD17C0160$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01601785
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
HSK01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK04000185
LPR Protruding length
60 mm
Name Identifying order number
E930258721660
OAL Overall length
80 mm
THSZWS Connection thread nominal size workpiece side
M6
WT Weight of item
0.32 kg
