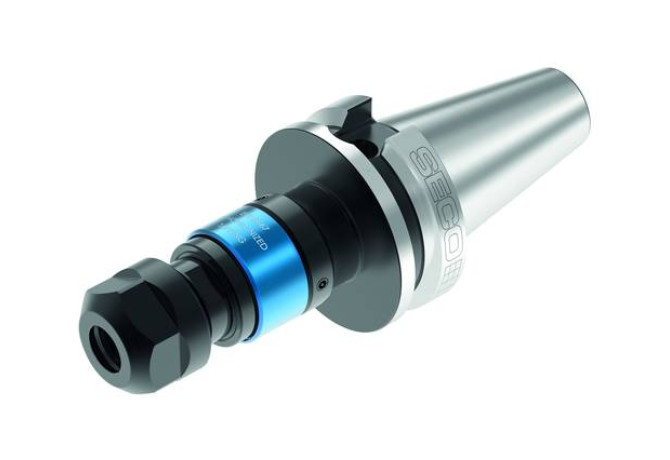

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E5766586720125

E5766586720125

E5766586720125

Seco

Артикул: 02926976

В наличии

В корзину

Описание

Характеристики

BD Body diameter

33.7 mm

BLQ Balance quality code

PB

CCFWS Connection code form

16

CCSWS Connection code style

5

CCTWS Connection code type

SZD

CCUWS Connection code unit base

8

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0200

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

SKG05005185

DLN Diameter lock nut

35 mm

FamilyProducts

E5766586720125

HAND Cutting direction

N - Neutral

ID Technical product number

02926976

Interface codes

J6 / J61

ISO

SKG51C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

35.3 mm

LOC-01 CCFWS Connection code form

16

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Connection code unit base

8 non-dimensional size

LOC-01 CZCWS Connection size code

0200

LOC-01 ISO

SZD16C0200$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD02001685

LOC-03 CCFMS Connection code form

51

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SKG51C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05005185

LPR Protruding length

120.2 mm

Name Identifying order number

E5766586720125

OAL Overall length

222 mm

WT Weight of item

4 kg
