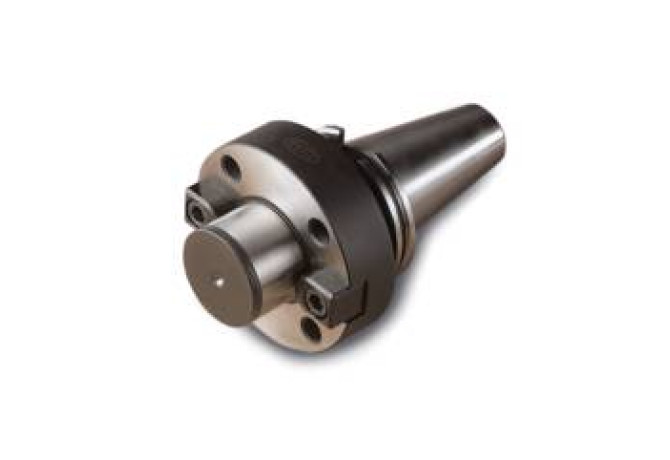

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E44715694070

E44715694070

Артикул: 75040808

В наличии

В корзину

Описание

Характеристики

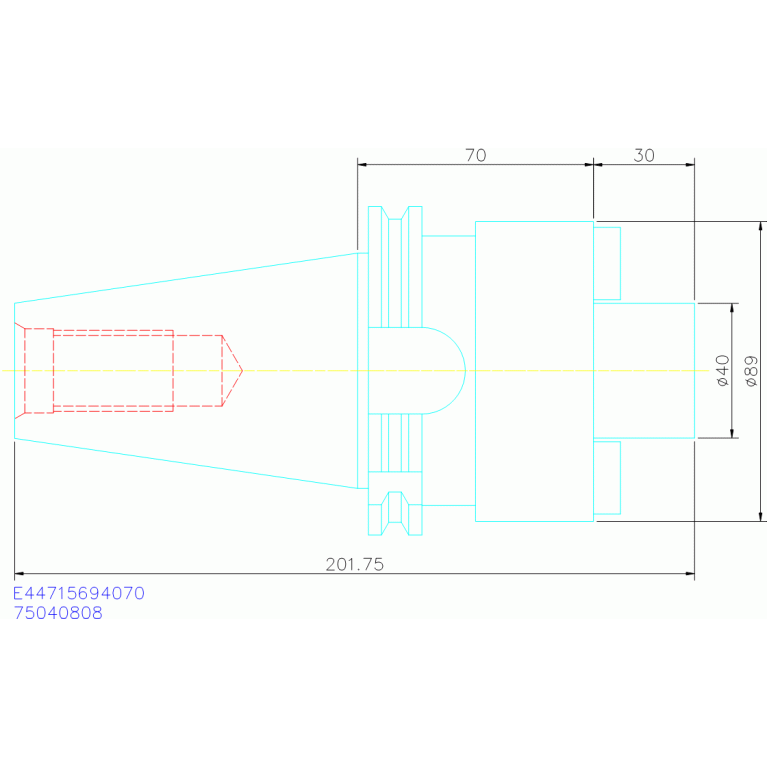

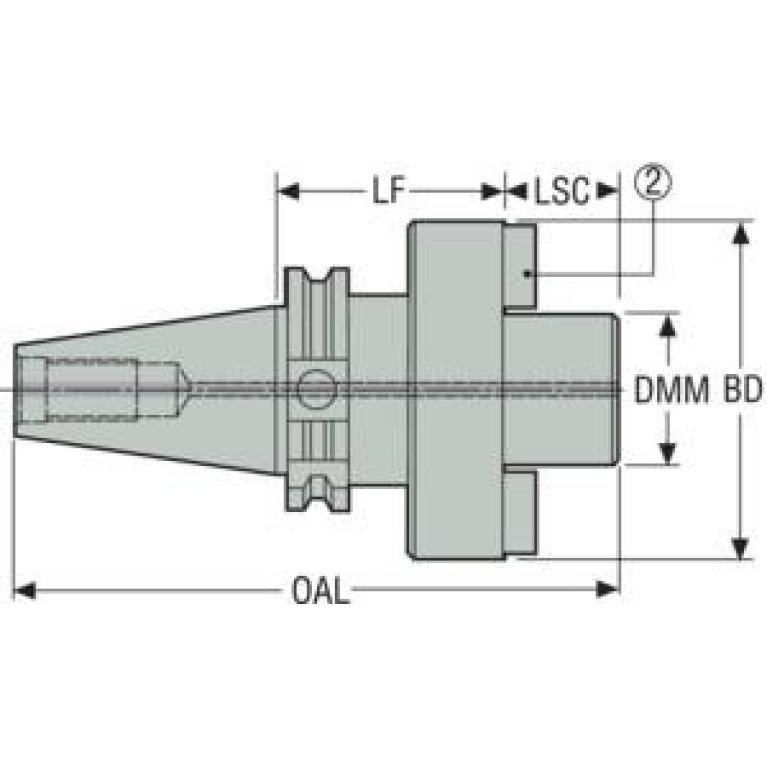

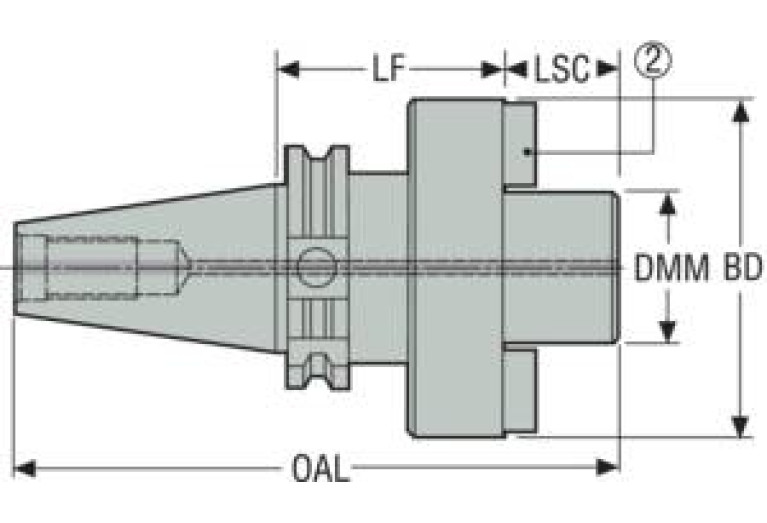

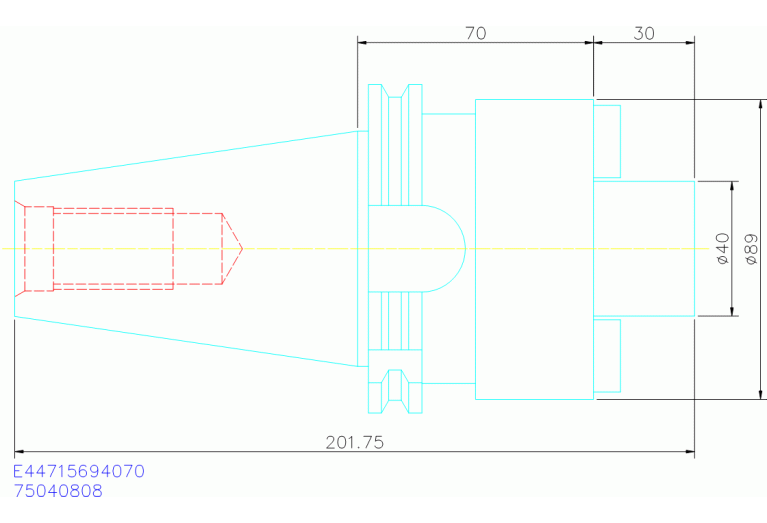

BD Body diameter

89 mm

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

FDA

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0400

DBC diameter bolt circle 2

66.7 mm

DCONWS Diameter

40 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

3/14/2020

DIN

SKG05001185

FamilyProducts

E44715694070

HAND Cutting direction

N - Neutral

ID Technical product number

75040808

Interface codes

J6 / J61

ISO

SKG11C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LF Functional length

70 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0400

LOC-01 DCONWS Diameter

40 mm

LOC-01 ISO

FDA02G4000****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA04000200

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SKG11C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001185

LSCX Clamping length maximum

30 mm

Name Identifying order number

E44715694070

OAL Overall length

201.75 mm

THSZWS Connection thread nominal size workpiece side

M12x1.75

WT Weight of item

5.15 kg
