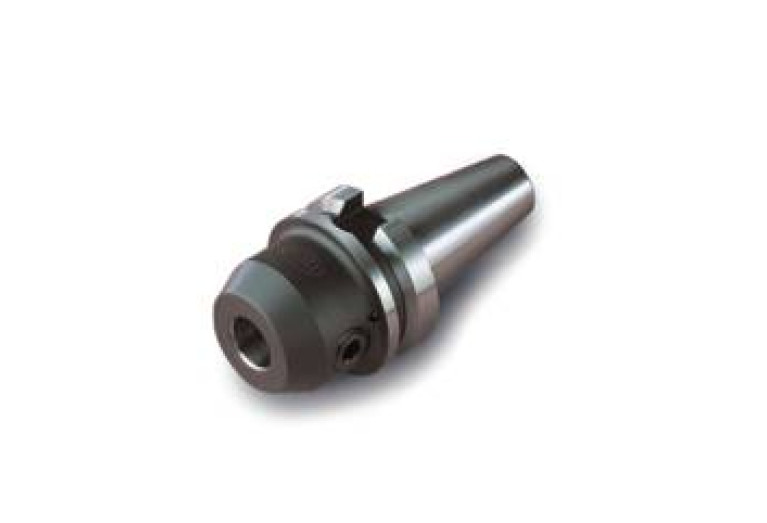

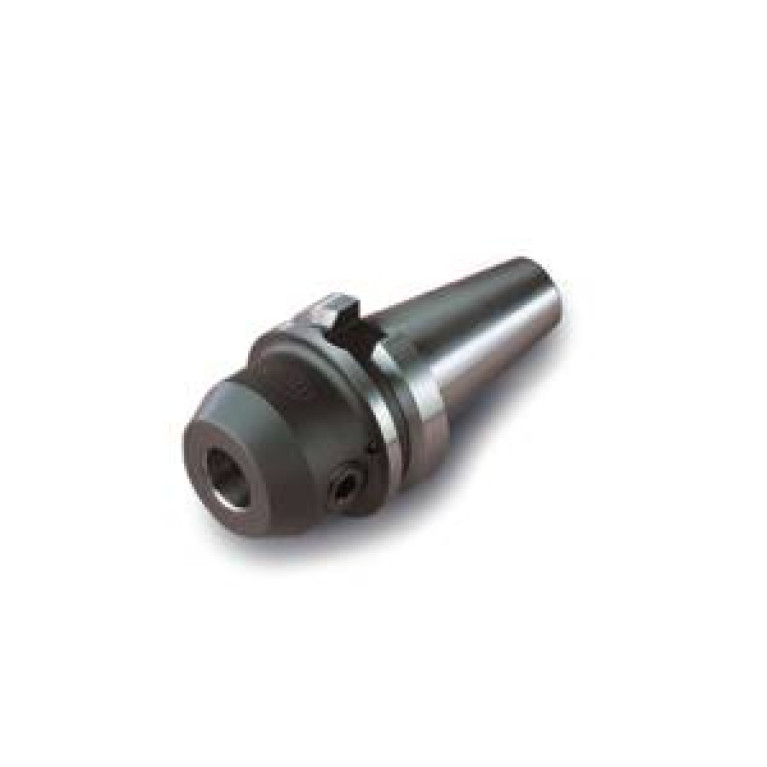

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E4041584062250

E4041584062250

E4041584062250 E4041584062250 E4041584062250

E4041584062250

Seco
Артикул: 02415390
В наличии
В корзину
Описание
Характеристики
BD Body diameter
47.498 mm
BLQ Balance quality code
PB
CCFWS Connection code form
10
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0625
DCONWS Diameter
15.875 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG04005185
FamilyProducts
E4041584062250
HAND Cutting direction
N - Neutral
ID Technical product number
02415390
Interface codes
J6 / J61
ISO
SKG51C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
36.5 mm
LOC-01 CCFWS Connection code form
10
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
2 Inch
LOC-01 CZCWS Connection size code
0625
LOC-01 DCONWS Diameter
15.875 mm
LOC-01 ISO
ZYL10R6250****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL06251025
LOC-03 CCFMS Connection code form
51
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG51C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04005185

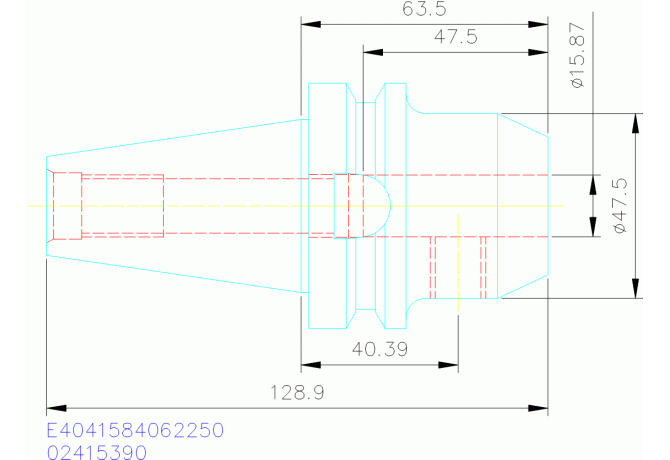

LPR Protruding length
63.5 mm
LSCX Clamping length maximum
47.498 mm
Name Identifying order number
E4041584062250
OAL Overall length
128.9 mm
WT Weight of item
1.31 kg
