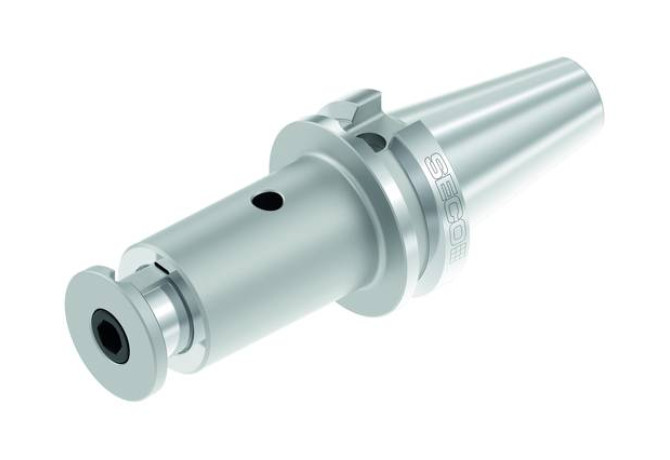

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E404156573290

E404156573290

E404156573290

Seco

Артикул: 02602705

В наличии

В корзину

Описание

Характеристики

BD Body diameter

48 mm

BLQ Balance quality code

PB

CCFWS Connection code form

01

CCSWS Connection code style

0

CCTWS Connection code type

FDA

CCUWS Connection code unit base

0

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0320

DCONWS Diameter

32 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

3/14/2020

DIN

SKG04005185

FamilyProducts

E404156573290

HAND Cutting direction

N - Neutral

ID Technical product number

02602705

Interface codes

J6 / J61

ISO

SKG51C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

63 mm

LF Functional length

90 mm

LOC-01 CCFWS Connection code form

01

LOC-01 CCSWS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0320

LOC-01 DCONWS Diameter

32 mm

LOC-01 ISO

FDA01G3200****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA03200100

LOC-02 DCONWS Diameter

32 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SO-FDA032001M0

LOC-03 CCFMS Connection code form

51

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0400

LOC-03 ISO

SKG51C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04005185

LSCN Clamping length minimum

0 mm

LSCX Clamping length maximum

24 mm

Name Identifying order number

E404156573290

OAH Overall height

24 mm

OAL Overall length

155.4 mm

WT Weight of item

1.904 kg
