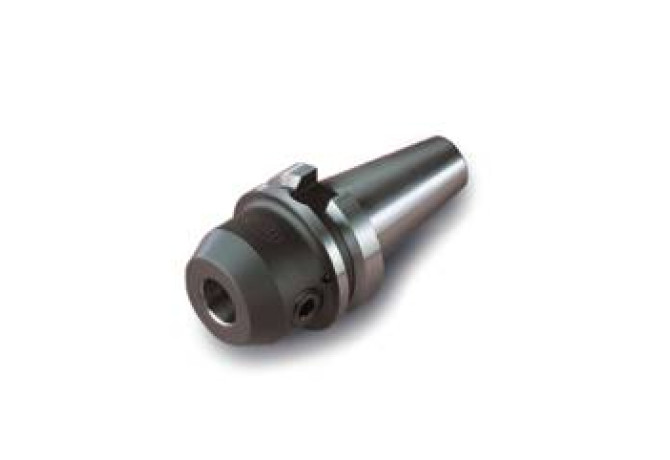

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E4002584025250

E4002584025250

E4002584025250

Seco

Артикул: 02998698

В наличии

В корзину

Описание

Характеристики

BD Body diameter

25.4 mm

BLQ Balance quality code

PB

CCFWS Connection code form

10

CCSWS Connection code style

5

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

2

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0250

DCONWS Diameter

6.35 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

SKG03005185

FamilyProducts

E4002584025250

HAND Cutting direction

N - Neutral

ID Technical product number

02998698

Interface codes

J6 / J61

ISO

SKG51C0300$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

41.5 mm

LOC-01 CCFWS Connection code form

10

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

2 Inch

LOC-01 CZCWS Connection size code

0250

LOC-01 DCONWS Diameter

6.35 mm

LOC-01 ISO

ZYL10R2500****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02501025

LOC-03 CCFMS Connection code form

51

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0300

LOC-03 ISO

SKG51C0300$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG03005185

LPR Protruding length

63.5 mm

LSCX Clamping length maximum

26 mm

Name Identifying order number

E4002584025250

OAL Overall length

111.9 mm

WT Weight of item

0.6 kg
