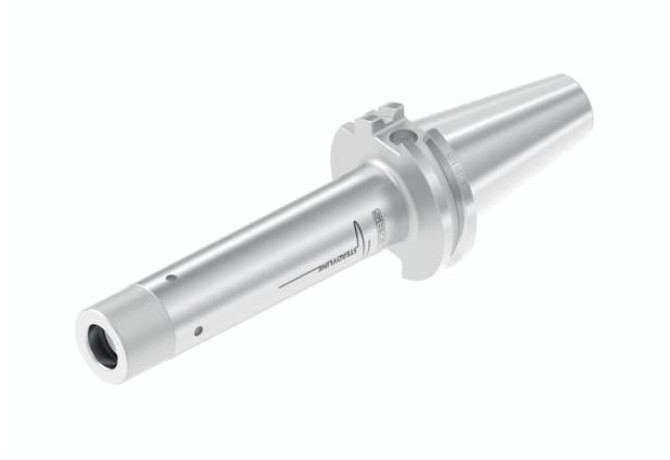

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E3471K82116185

E3471K82116185

E3471K82116185

Seco

Артикул: 02904490

В наличии

В корзину

Описание

Характеристики

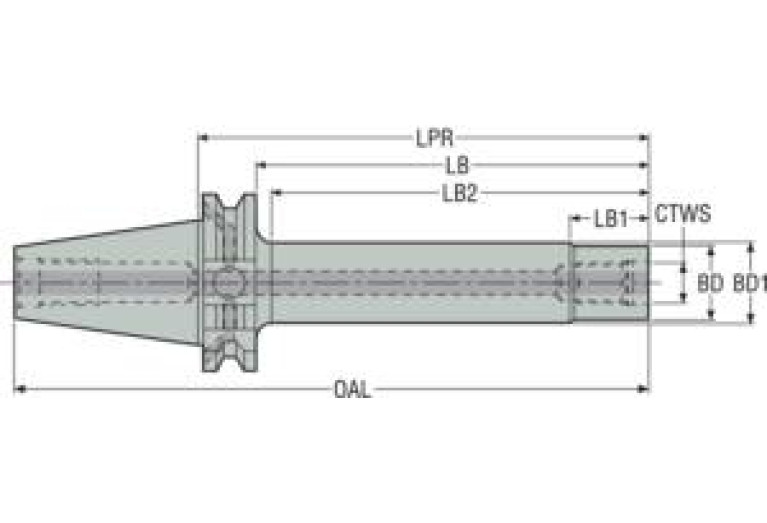

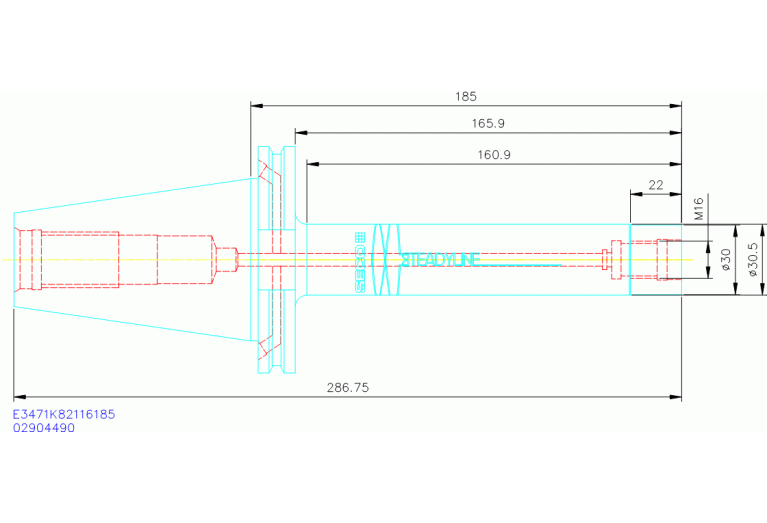

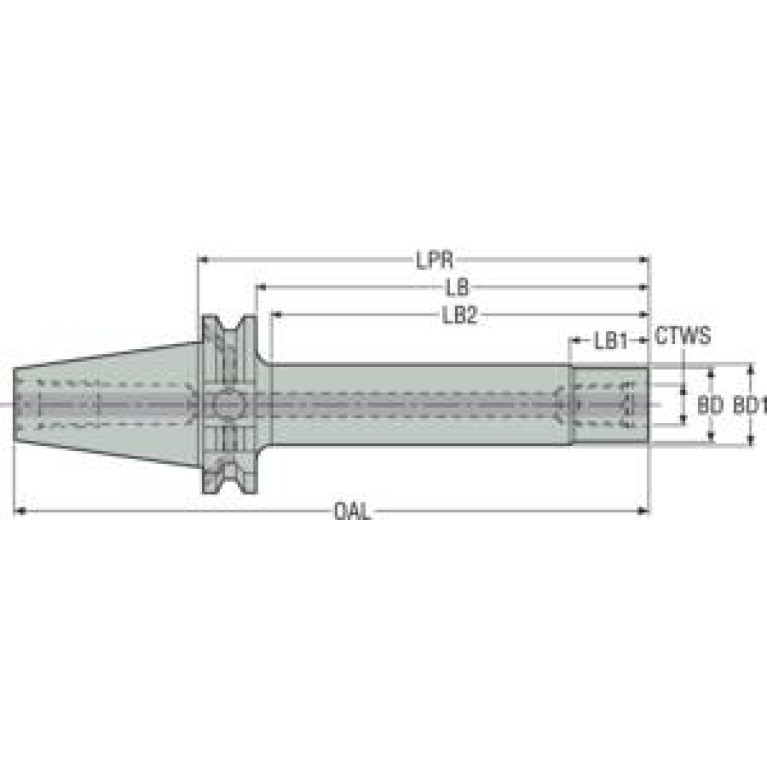

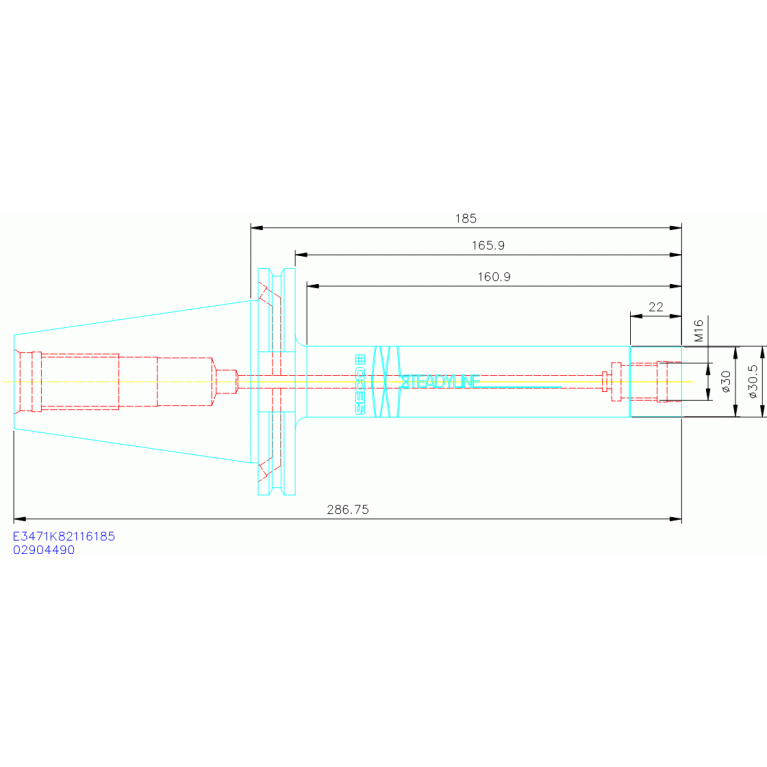

BD Body diameter

30.5 mm

BLQ Balance quality code

PB

CCFWS Connection code form

01

CCSWS Connection code style

5

CCTWS Connection code type

SCM

CCUWS Connection code unit base

1

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0300

DCINTF Interference cutting diameter

30 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

3/14/2020

DIN

SKG05001795

FamilyProducts

E3471K82116185

HAND Cutting direction

N - Neutral

ID Technical product number

02904490

Interface codes

J6 / J61

ISO

SKG17C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

22 mm

LB Length 2

160.9 mm

LF Functional length

185 mm

LOC-01 CCFWS Connection code form

01

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SCM

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0300

LOC-01 ISO

SCM01G3000$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SCM03000115

LOC-03 CCFMS Connection code form

17

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SKG17C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001795

LPR Protruding length

185 mm

Name Identifying order number

E3471K82116185

OAL Overall length

286.7 mm

RPMX Rotational speed maximum

10000 1/min

WT Weight of item

3.5 kg
