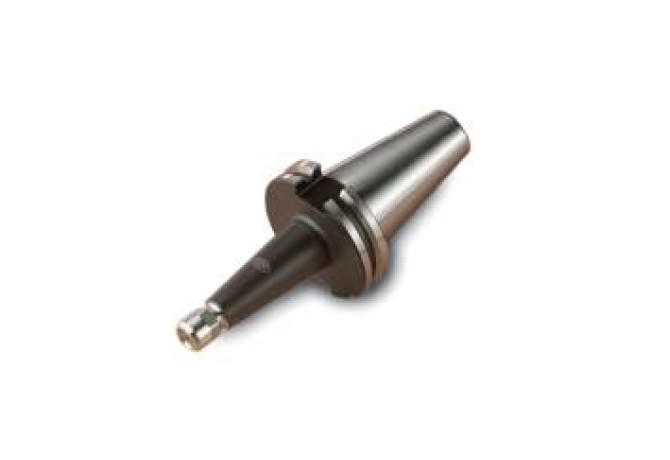

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E347158722480

E347158722480

Артикул: 02502762

В наличии

В корзину

Описание

Характеристики

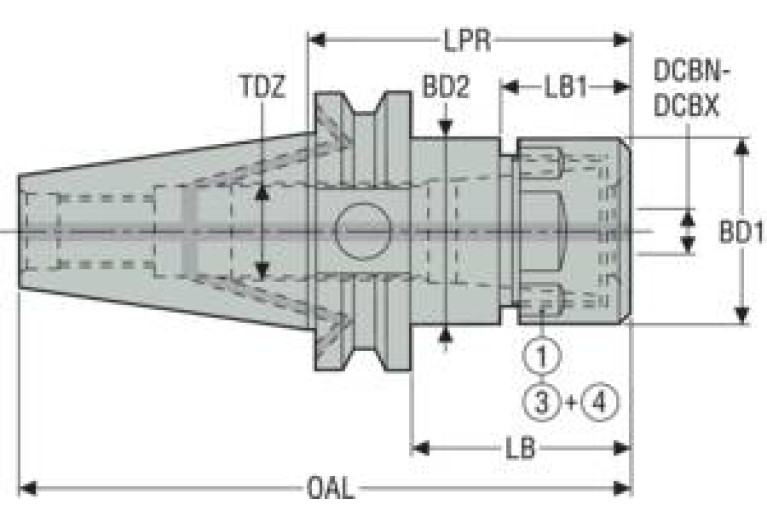

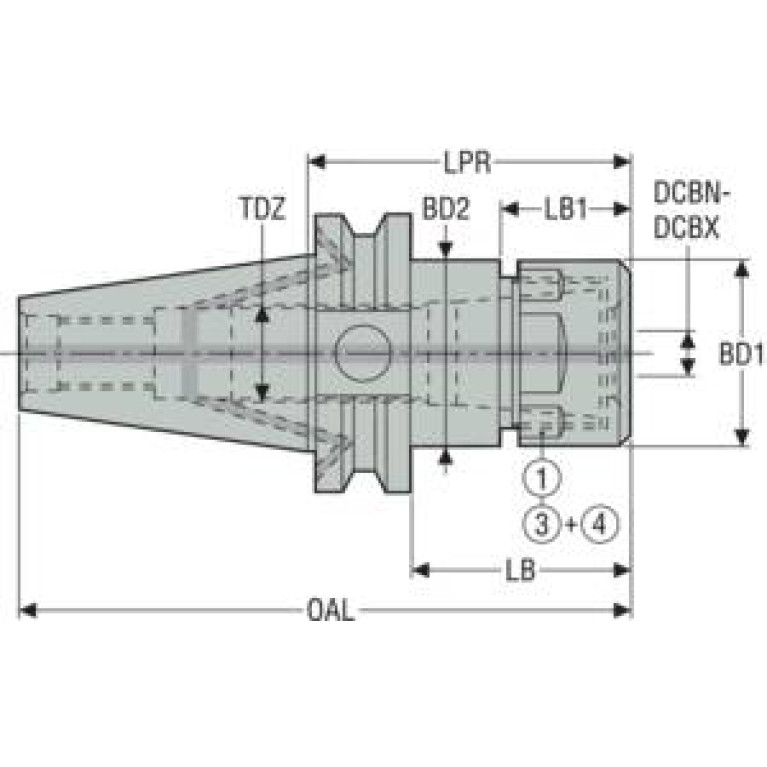

BD Body diameter

36 mm

BLQ Balance quality code

G6.3

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SZD

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0240

DCONWS Diameter

1 mm

DCONXWS Connection diameter max

16 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

3/14/2020

DIN

SKG05001795

FamilyProducts

E347158722480

HAND Cutting direction

N - Neutral

ID Technical product number

02502762

Interface codes

J6 / J61

ISO

SKG17C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

26.3 mm

LF Functional length

80 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0240

LOC-01 DCONWS Diameter

1 mm

LOC-01 DCONXWS Connection diameter max

16 mm

LOC-01 ISO

SZD17C0240$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD02401795

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SKG17C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001795

LPR Protruding length

80 mm

Name Identifying order number

E347158722480

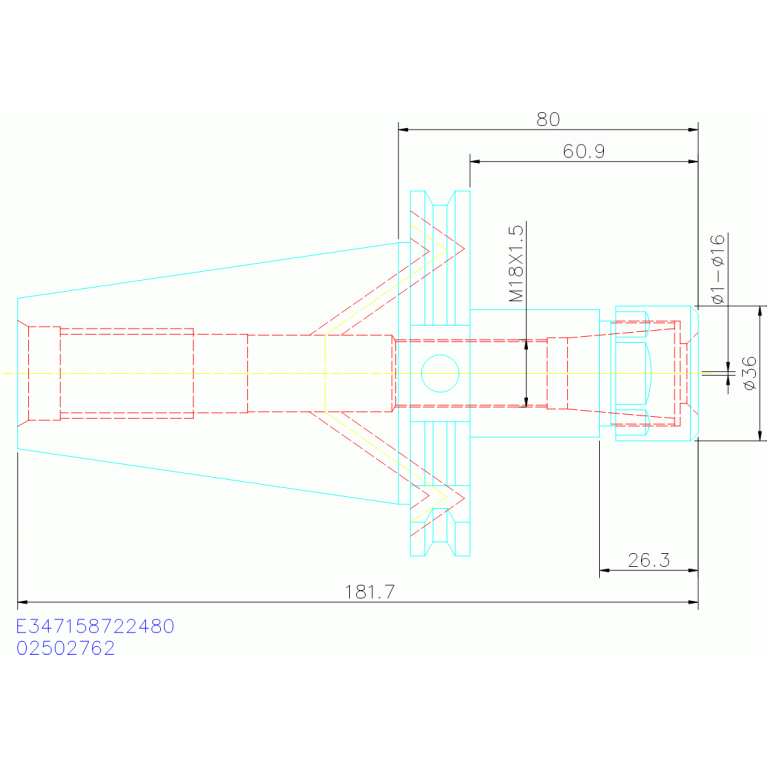

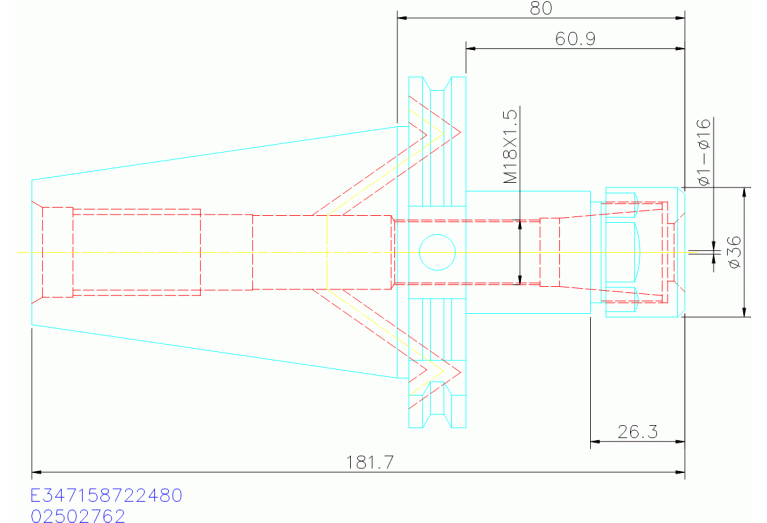

OAL Overall length

181.7 mm

THSZWS Connection thread nominal size workpiece side

M18x1.5

WT Weight of item

2.81 kg
