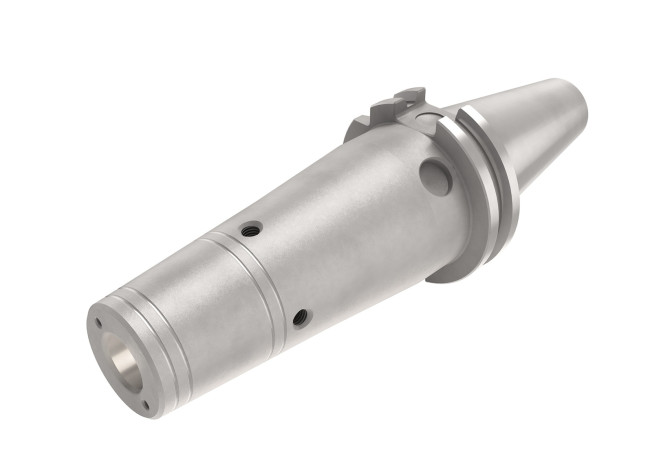

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E3471560032160

E3471560032160

Артикул: 02845551

В наличии

В корзину

Описание

Характеристики

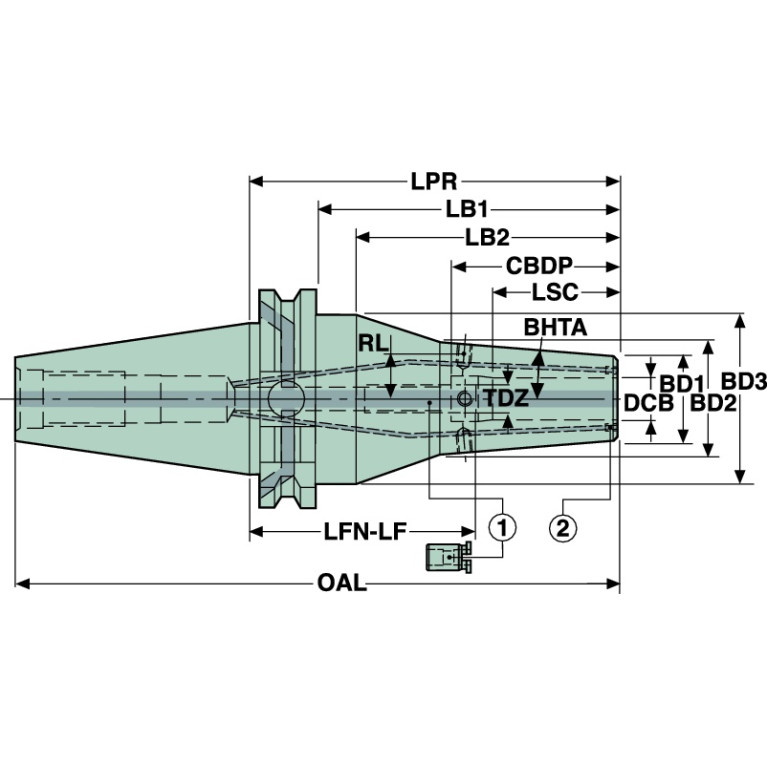

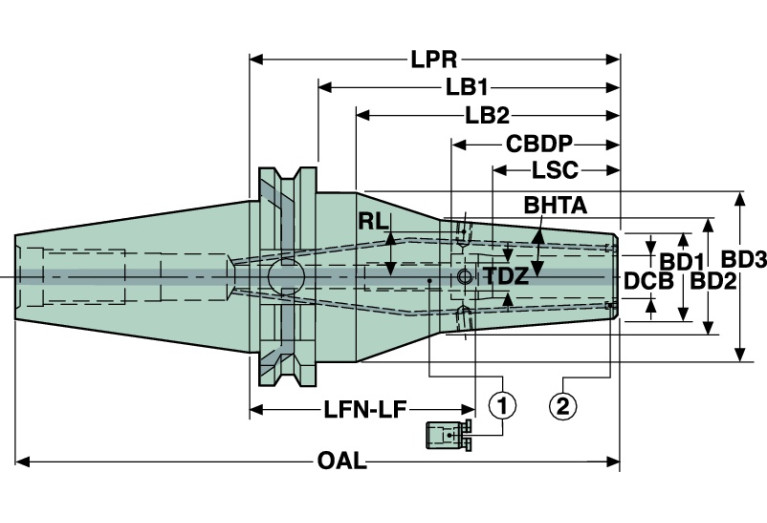

BD Body diameter

59.13 mm

BD Body diameter 2

59.13 mm

BD Body diameter 3

79.5 mm

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0320

DCINTF Interference cutting diameter

48 mm

DCONWS Diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

DIN

SKG04501795

FamilyProducts

E3471560032160

HAND Cutting direction

N - Neutral

ID Technical product number

02845551

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

141 mm

LF Functional length

109 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0320

LOC-01 DCONWS Diameter

32 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL03200115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0450

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04501795

LPR Protruding length

160 mm

LSCX Clamping length maximum

51 mm

Name Identifying order number

E3471560032160

OAL Overall length

261.7 mm

TA Taper angle

4.5 Degree

THSZWS Connection thread nominal size workpiece side

M16x1

WT Weight of item

5.7 kg
