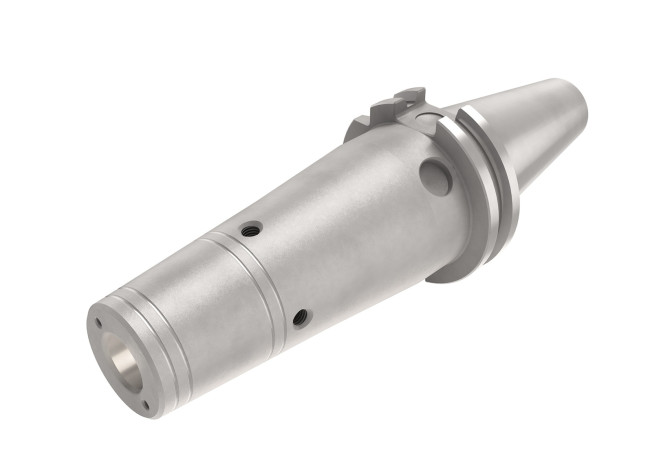

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E3471560020200

E3471560020200

E3471560020200 E3471560020200 E3471560020200 E3471560020200

E3471560020200

Seco
Артикул: 02845556
В наличии
В корзину
Описание
Характеристики
BD Body diameter
53.2 mm
BD Body diameter 2
53.2 mm
BD Body diameter 3
79.5 mm
BLQ Balance quality code
1
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0200
DCINTF Interference cutting diameter
44 mm
DCONWS Diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
SKG04501795
FamilyProducts
E3471560020200
HAND Cutting direction
N - Neutral
ID Technical product number
02845556
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
181 mm
LF Functional length
159 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01 DCONWS Diameter
20 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02000115
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0450
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04501795
LPR Protruding length
200 mm
LSCX Clamping length maximum
41 mm
Name Identifying order number
E3471560020200
OAL Overall length
301.7 mm
TA Taper angle
4.5 Degree
THSZWS Connection thread nominal size workpiece side
M16x1
WT Weight of item
6.67 kg
