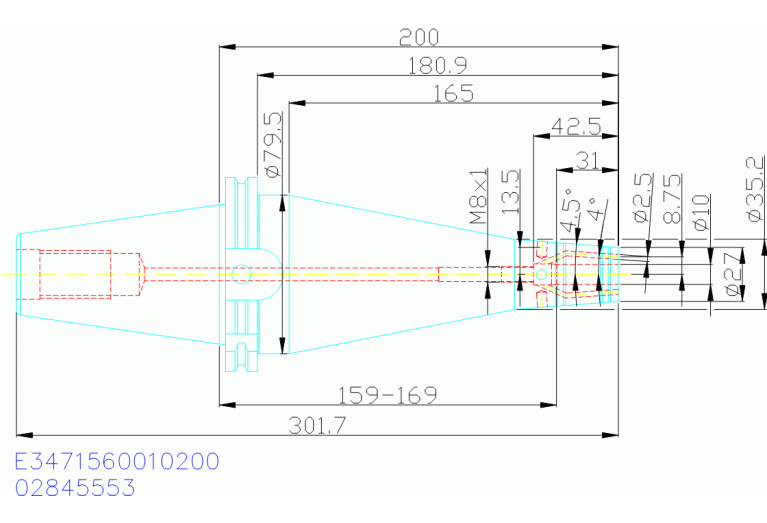

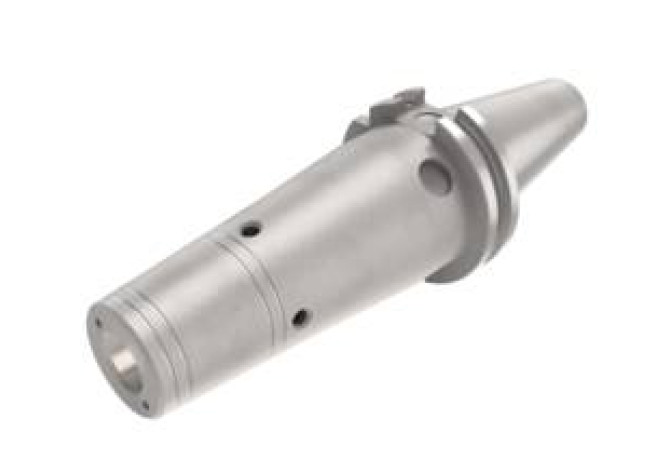

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E3471560010200

E3471560010200

E3471560010200 E3471560010200 E3471560010200 E3471560010200

E3471560010200

Seco
Артикул: 02845553
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
2 - Axial adjustment possible
BD Body diameter
27 mm
BD Body diameter 2
35.185 mm
BD Body diameter 3
79.5 mm
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0100
DCONWS Diameter
10 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG05001795
FamilyProducts
E3471560010200
HAND Cutting direction
N - Neutral
ID Technical product number
02845553
Interface codes
J6 / J61
ISO
SKG17C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
52 mm
LF Functional length
169 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0100
LOC-01 DCONWS Diameter
10 mm
LOC-01 ISO
ZYL01G1000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01000115
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
SKG17C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05001795
LPR Protruding length
200 mm
LSCX Clamping length maximum
31 mm
Name Identifying order number
E3471560010200
OAL Overall length
301.75 mm
TA Taper angle
4.5 Degree
WT Weight of item
5.8 kg
