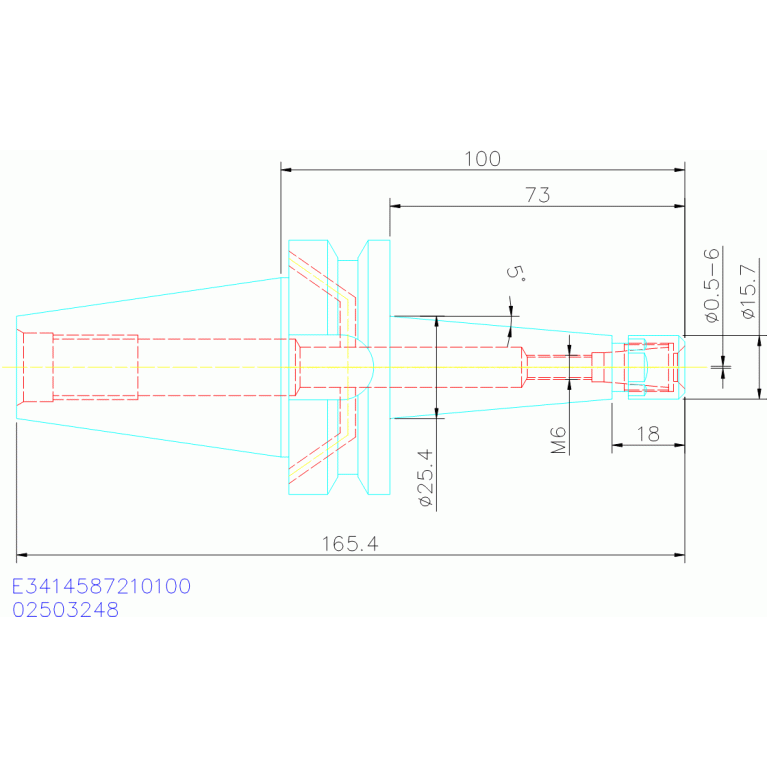

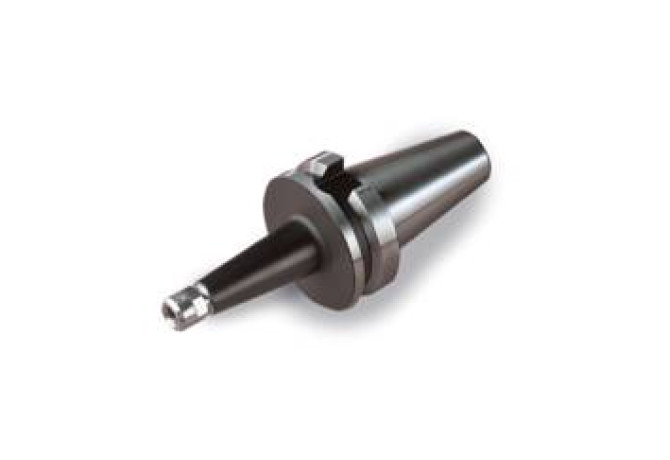

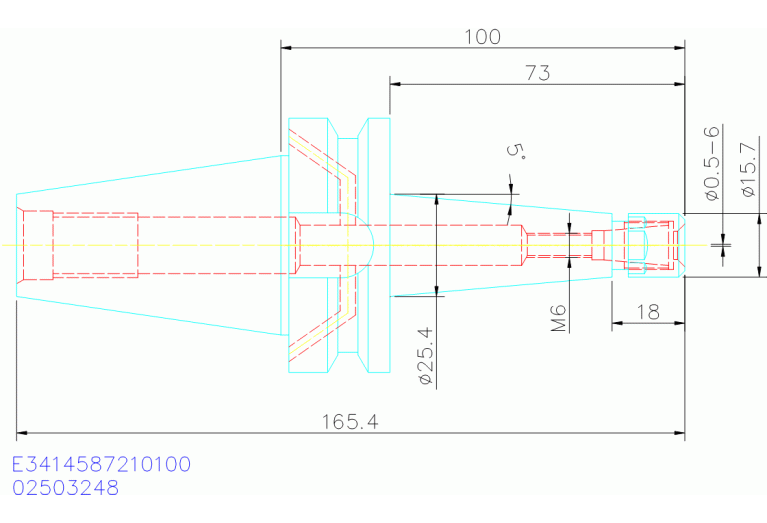

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E3414587210100

E3414587210100

Артикул: 02503248

В наличии

В корзину

Описание

Характеристики

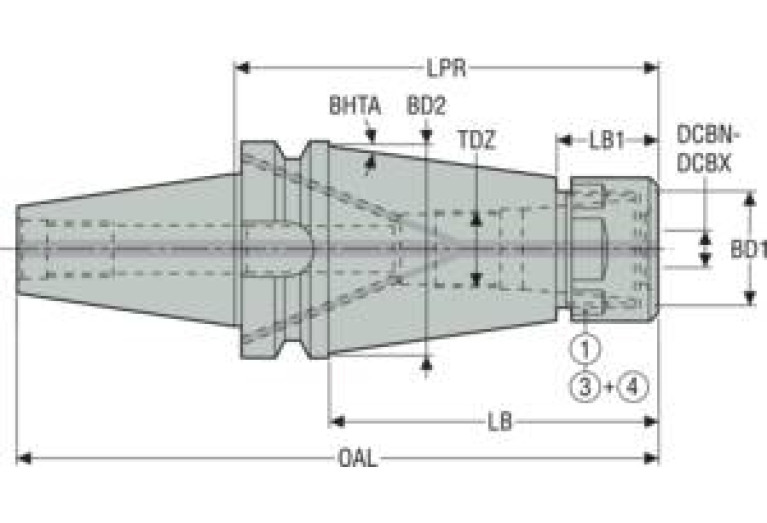

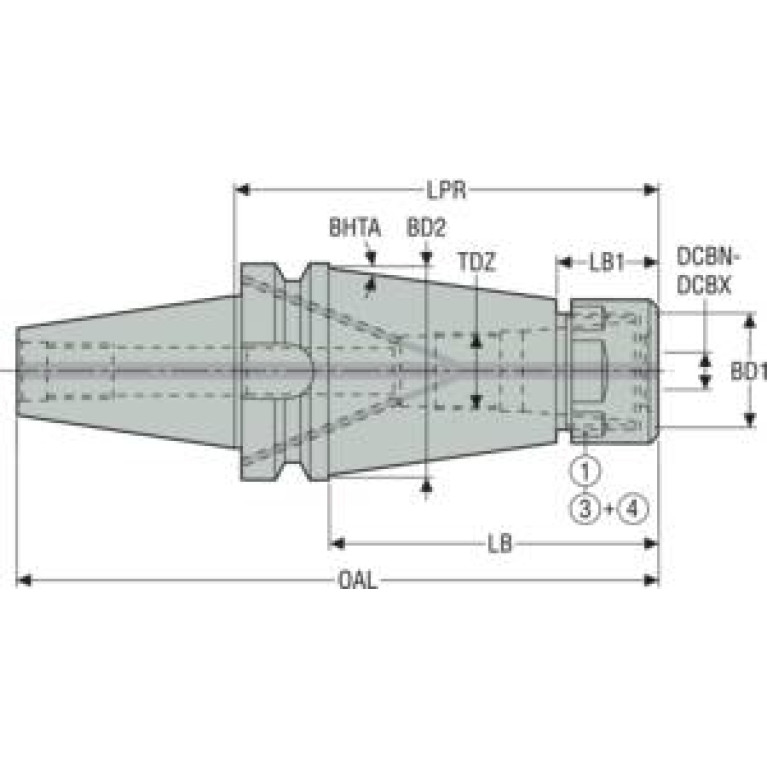

BD Body diameter

15.7 mm

BD Body diameter 2

25.4 mm

BLQ Balance quality code

G6.3

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SZD

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0100

DCONWS Diameter

0.5 mm

DCONXWS Connection diameter max

6 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

3/14/2020

DIN

SKG04005795

DLN Diameter lock nut

15.7 mm

FamilyProducts

E3414587210100

HAND Cutting direction

N - Neutral

ID Technical product number

02503248

Interface codes

J6 / J61

ISO

SKG57C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

14 mm

LF Functional length

100 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0100

LOC-01 DCONWS Diameter

0.5 mm

LOC-01 DCONXWS Connection diameter max

6 mm

LOC-01 ISO

SZD17C0100$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD01001795

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 ISO

SKG57C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04005795

LPR Protruding length

100 mm

Name Identifying order number

E3414587210100

OAL Overall length

165.4 mm

TA Taper angle

5 Degree

THSZWS Connection thread nominal size workpiece side

WT Weight of item

1.08 kg
