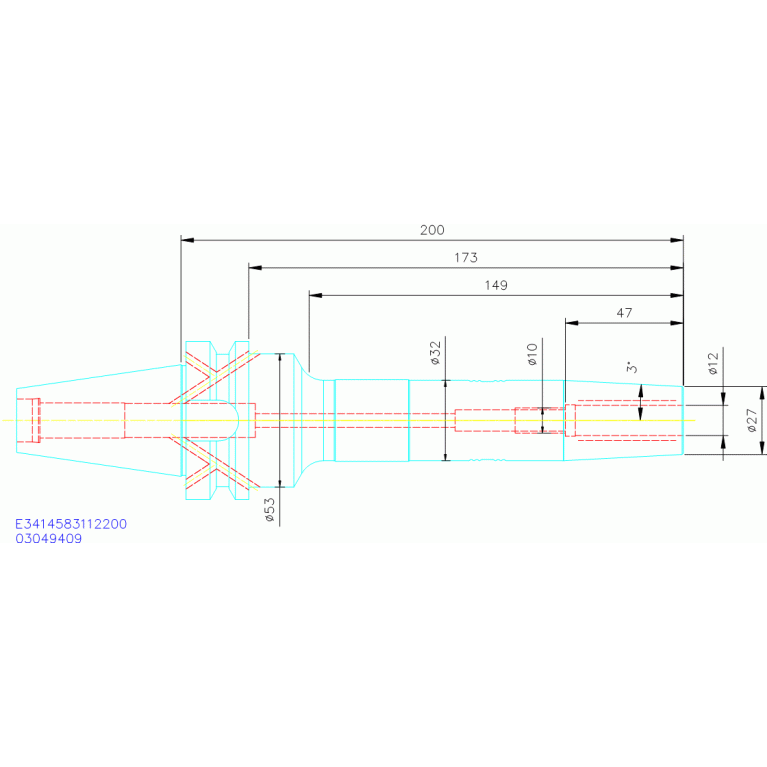

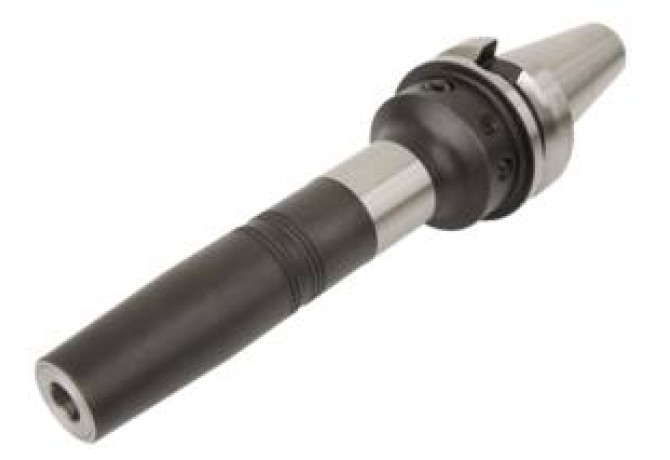

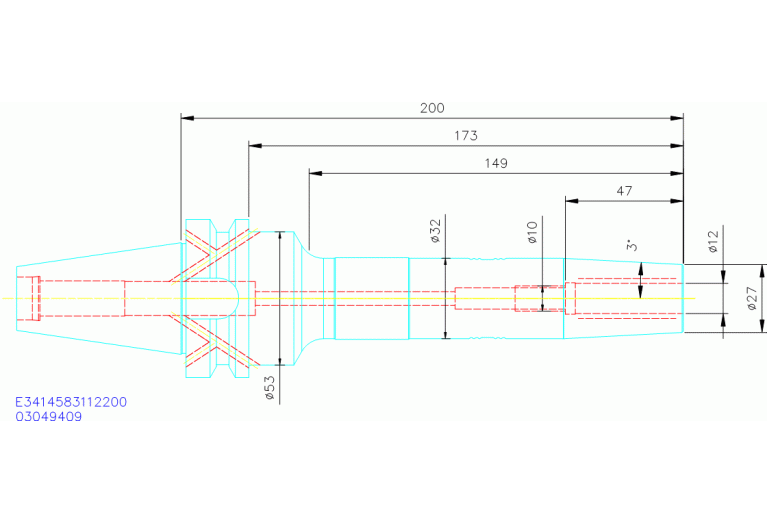

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E3414583112200

E3414583112200

E3414583112200 E3414583112200 E3414583112200 E3414583112200

E3414583112200

Seco
Артикул: 03049409
В наличии
В корзину
Описание
Характеристики

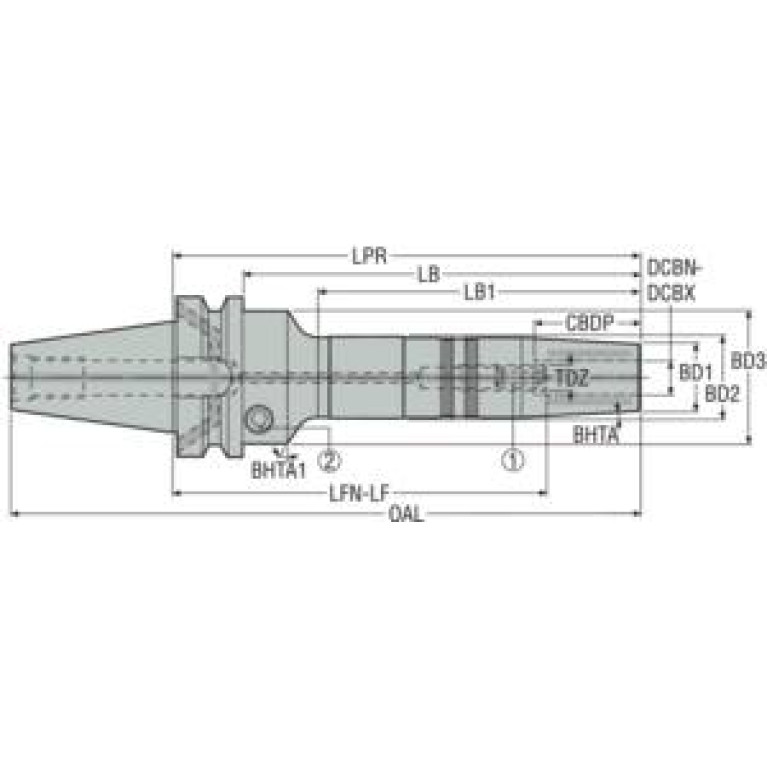

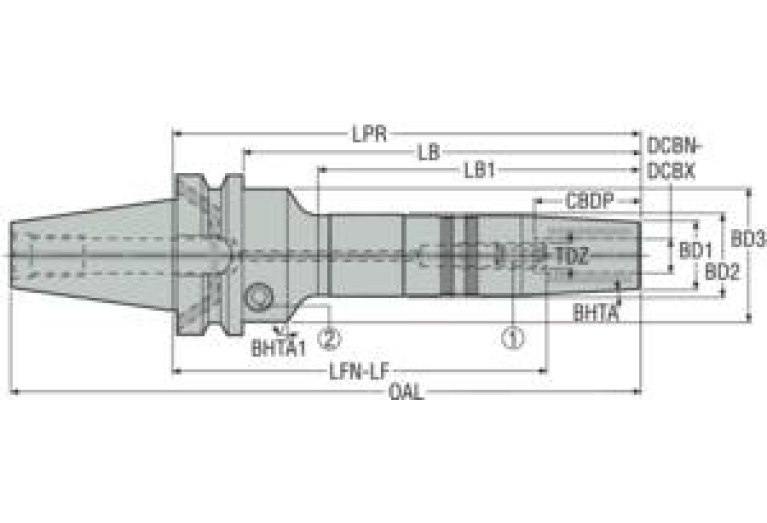

BD Body diameter
32.5 mm
BD Body diameter 2
53 mm
BD Body diameter 3
53 mm
BHTA Body half taper angle 2
30 Degree
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0120
DCINTF Interference cutting diameter
27 mm
DCONWS Diameter
12 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG04005085
FamilyProducts
E3414583112200
HAND Cutting direction
N - Neutral
ID Technical product number
03049409
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
143.25 mm
LF Functional length
153 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CZCWS Connection size code
0120
LOC-01 DCONWS Diameter
12 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-03 CCFMS Connection code form
50
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04005085
LPR Protruding length
200 mm
Name Identifying order number
E3414583112200
OAL Overall length
265.4 mm
TA Taper angle
3 Degree
WT Weight of item
2.2 kg
