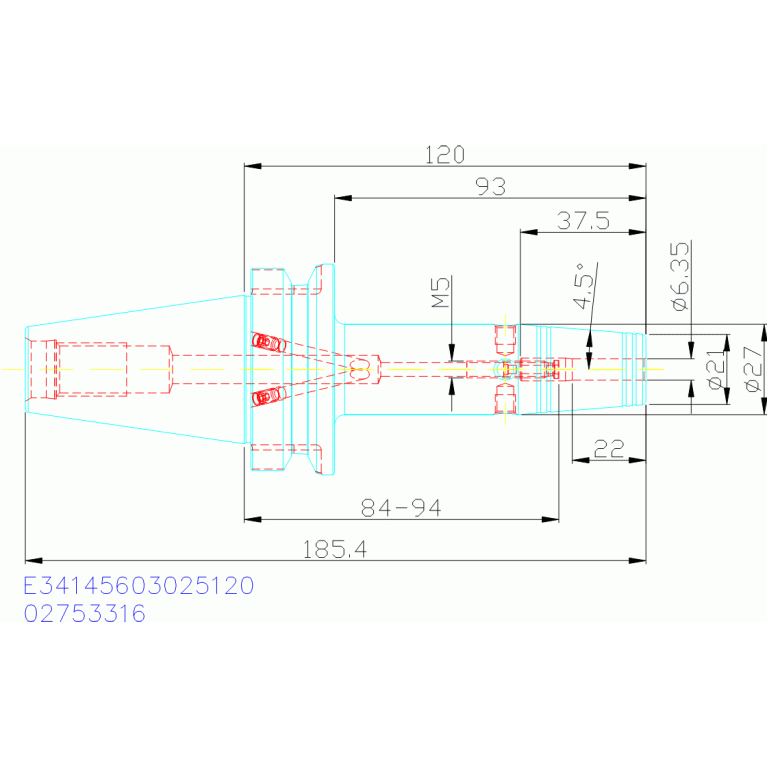

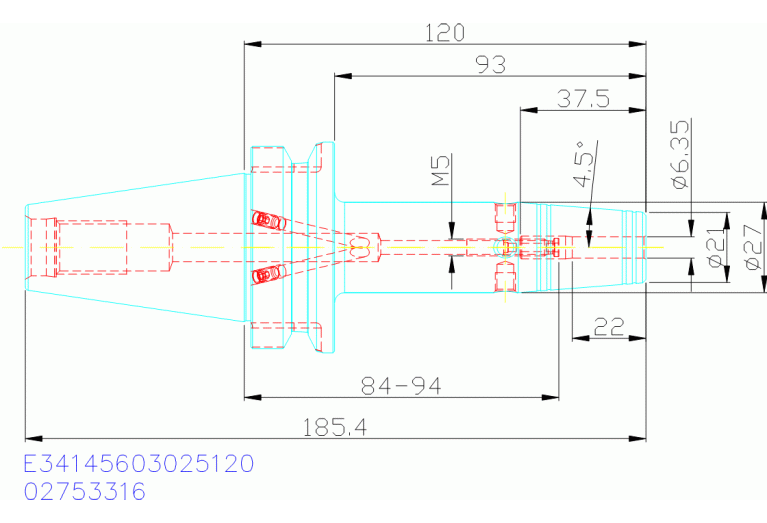

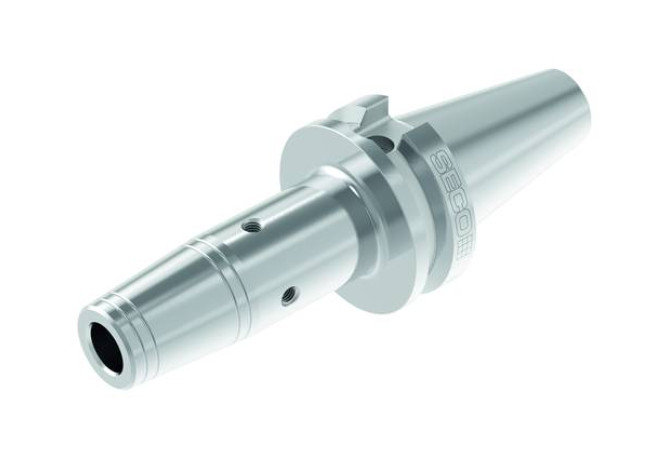

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E34145603025120

E34145603025120

E34145603025120 E34145603025120 E34145603025120 E34145603025120

E34145603025120

Seco
Артикул: 02753316
В наличии
В корзину
Описание
Характеристики

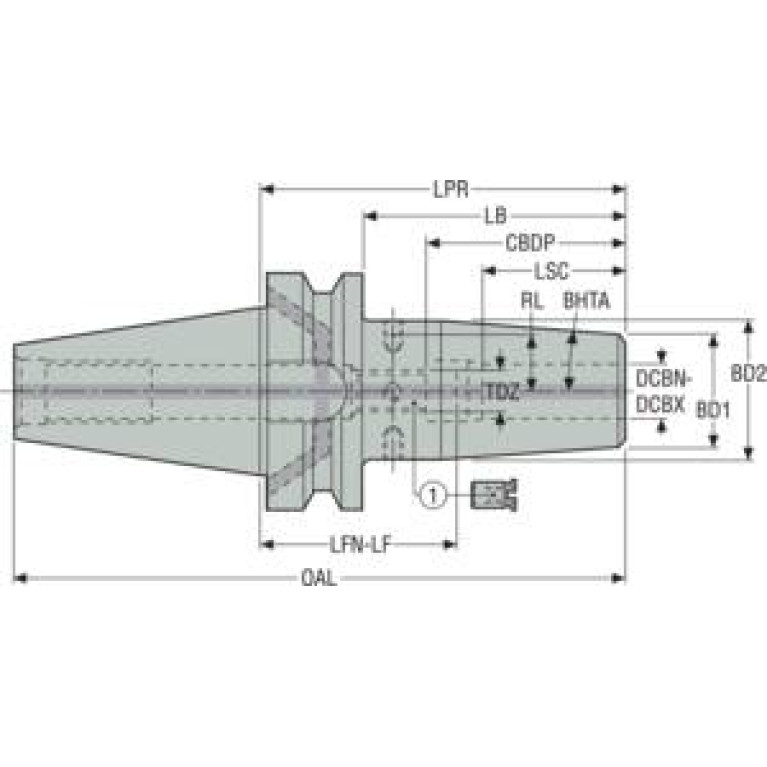

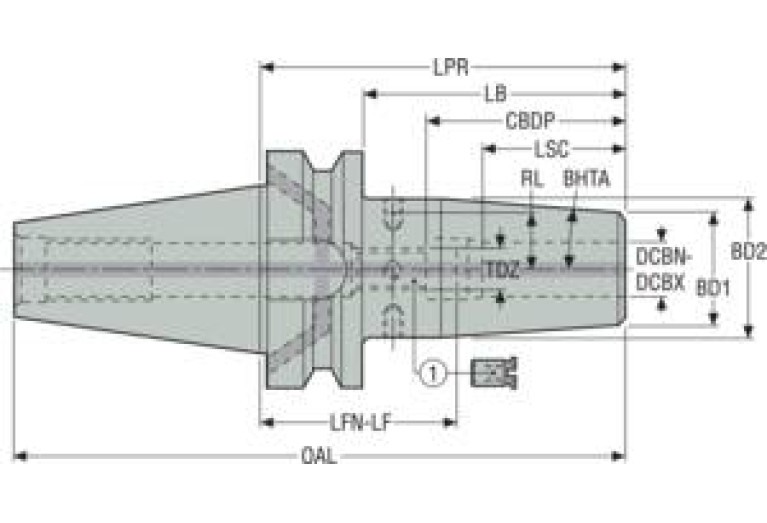

ADJBY Adjustment property
2 - Axial adjustment possible
BD Body diameter
21 mm
BD Body diameter 2
27 mm
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
3
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0250
DCONWS Diameter
6.35 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG04005795
FamilyProducts
E34145603025120
HAND Cutting direction
N - Neutral
ID Technical product number
02753316
Interface codes
J6 / J61
ISO
SKG57C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
93 mm
LF Functional length
98 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
3 Inch with coolant
LOC-01 CZCWS Connection size code
0250
LOC-01 DCONWS Diameter
6.35 mm
LOC-01 ISO
ZYL01R2500****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02500135
LOC-03 CCFMS Connection code form
57
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG57C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04005795
LPR Protruding length
120 mm
LSCX Clamping length maximum
22 mm
Name Identifying order number
E34145603025120
OAL Overall length
185.4 mm
TA Taper angle
4.5 Degree
WT Weight of item
1.298 kg
