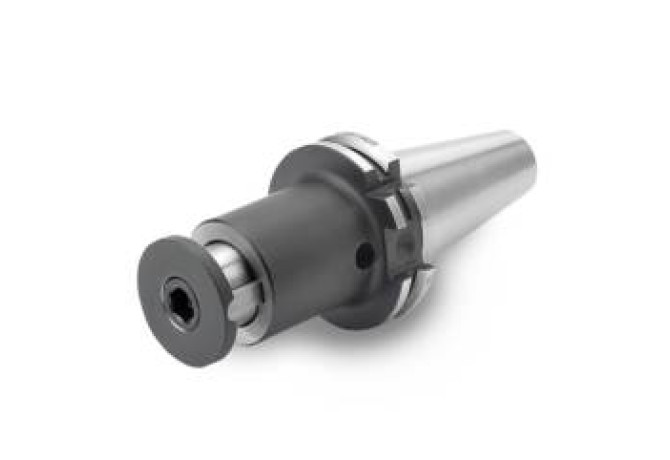

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E25245657250700

E25245657250700

E25245657250700 E25245657250700 E25245657250700 E25245657250700

E25245657250700

Seco
Артикул: 02870722
В наличии
В корзину
Описание
Характеристики
BD Body diameter
89.992 mm
BLQ Balance quality code
PB
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
2500
DCONWS Diameter
63.5 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG05003185
FamilyProducts
E25245657250700
HAND Cutting direction
N - Neutral
ID Technical product number
02870722
Interface codes
J6 / J61
ISO
SKG31C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
160.909 mm
LF Functional length
177.8 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
2 Inch
LOC-01 CZCWS Connection size code
2500
LOC-01 DCONWS Diameter
63.5 mm
LOC-01 ISO
FDA02S2500****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA25000220
LOC-02 DCONWS Diameter
63.5 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-FDA250001N0
LOC-03 CCFMS Connection code form
31
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
SKG31C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05003185
LSCN Clamping length minimum
0 mm
LSCX Clamping length maximum
39.98 mm
Name Identifying order number
E25245657250700
OAH Overall height
39.98 mm
OAL Overall length
279.502 mm
WT Weight of item
10.1 kg
