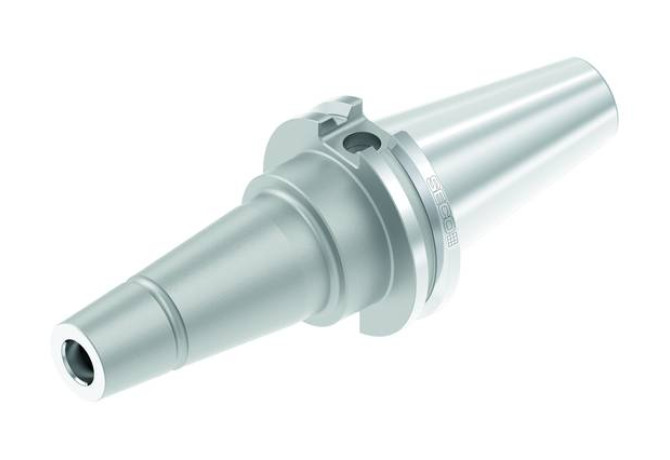

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E2504582016145

E2504582016145

E2504582016145 E2504582016145 E2504582016145 E2504582016145

E2504582016145

Seco
Артикул: 02870642
В наличии
В корзину
Описание
Характеристики
BD Body diameter
31.7 mm
BD Body diameter 2
49 mm
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SCM
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0300
DCINTF Interference cutting diameter
30 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG04003795
FamilyProducts
E2504582016145
HAND Cutting direction
N - Neutral
ID Technical product number
02870642
Interface codes
J6 / J61
ISO
SKG37C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
30 mm
LB Length 2
100 mm
LB Length Body diameter 3
125.95 mm
LF Functional length
145 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SCM
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0300
LOC-01 ISO
SCM01G3000$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SCM03000115
LOC-03 CCFMS Connection code form
37
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG37C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04003795
LPR Protruding length
145 mm
Name Identifying order number
E2504582016145
OAL Overall length
246.75 mm
TA Taper angle
7 Degree
WT Weight of item
3.785 kg
