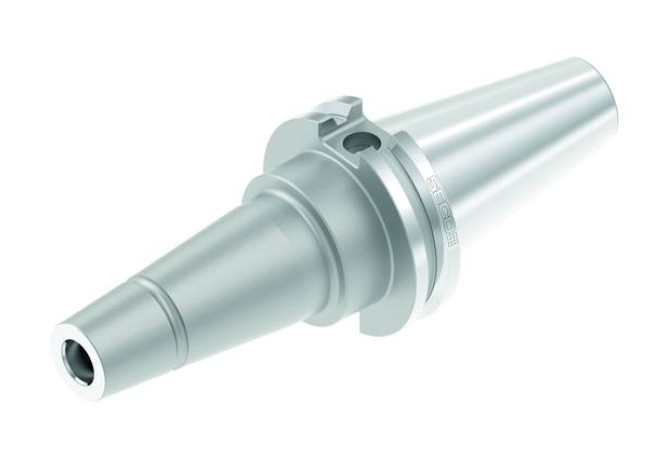

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E2504582012145

E2504582012145

E2504582012145 E2504582012145 E2504582012145 E2504582012145

E2504582012145

Seco
Артикул: 02870640
В наличии
В корзину
Описание
Характеристики

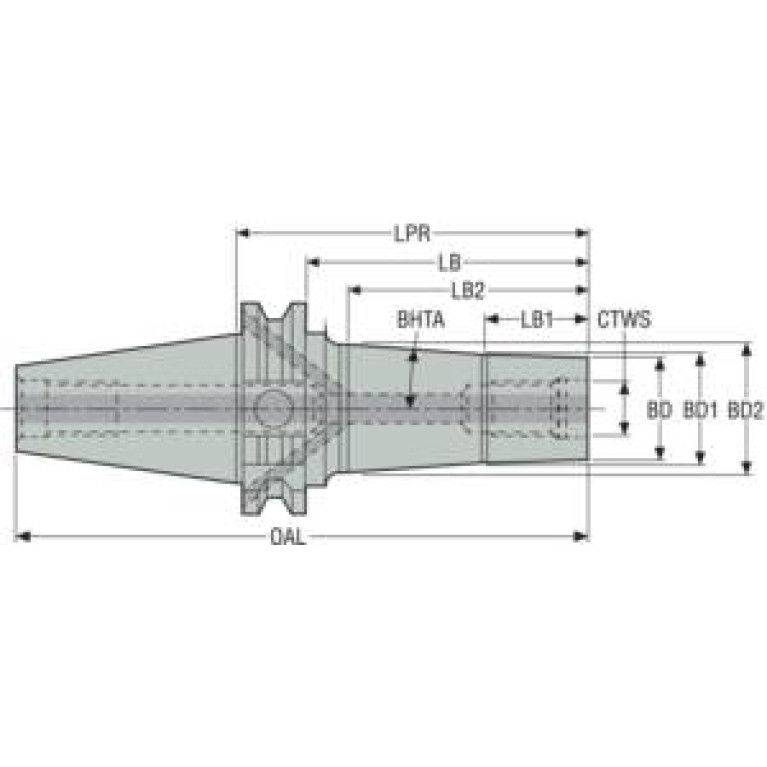

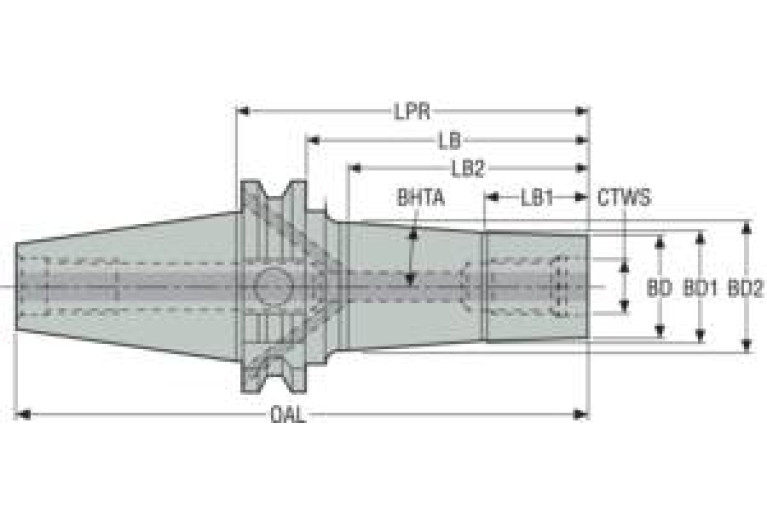

BD Body diameter 2
38.5 mm
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SCM
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0230
DCINTF Interference cutting diameter
23 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG04003795
FamilyProducts
E2504582012145
HAND Cutting direction
N - Neutral
ID Technical product number
02870640
Interface codes
J6 / J61
ISO
SKG37C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
30 mm
LB Length 2
110 mm
LB Length Body diameter 3
125.95 mm
LF Functional length
145 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SCM
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0230
LOC-01 ISO
SCM01G2300$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SCM02300115
LOC-03 CCFMS Connection code form
37
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG37C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04003795
LPR Protruding length
145 mm
Name Identifying order number
E2504582012145
OAL Overall length
246.75 mm
TA Taper angle
4.9 Degree
WT Weight of item
3.429 kg
Диаметр корпуса (BD) / Body diameter (BD)
24.7 mm
