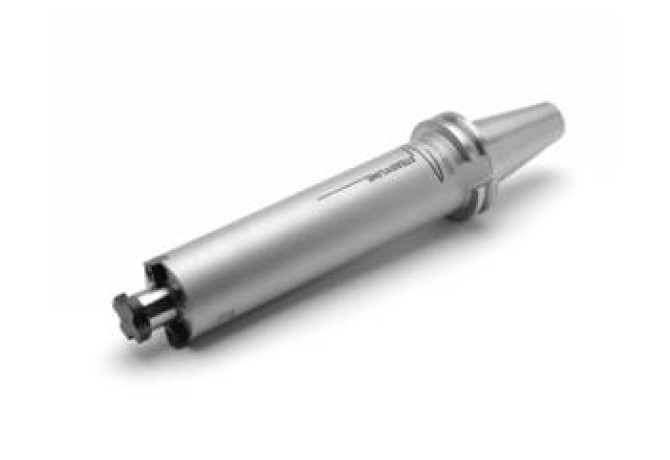

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E25045555100900

E25045555100900

E25045555100900 E25045555100900 E25045555100900 E25045555100900

E25045555100900

Seco
Артикул: 02675804
В наличии
В корзину
Описание
Характеристики
BD Body diameter
57.15 mm
BLQ Balance quality code
PB
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
3
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
1000
DCONWS Diameter
25.4 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG05003795
FamilyProducts
E25045555100900
HAND Cutting direction
N - Neutral
ID Technical product number
02675804
Interface codes
J6 / J61
ISO
SKG37C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
209.55 mm
LF Functional length
228.6 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
3 Inch with coolant
LOC-01 CZCWS Connection size code
1000
LOC-01 DCONWS Diameter
25.4 mm
LOC-01 ISO
FDA02S1000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA10000230
LOC-02 DCONWS Diameter
25.4 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-FDA100022N0
LOC-03 CCFMS Connection code form
37
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
SKG37C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05003795
LSCX Clamping length maximum
17.526 mm
Name Identifying order number
E25045555100900
OAL Overall length
347.85 mm
RPMX Rotational speed maximum
6000 1/min
WT Weight of item
8.04 kg
