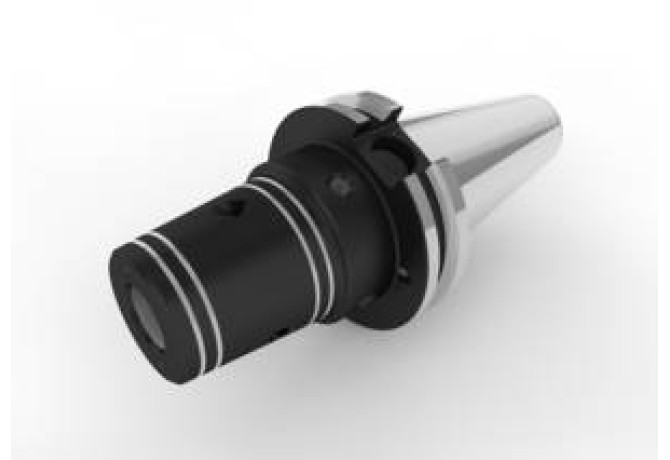

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E250256001680P

E250256001680P

E250256001680P E250256001680P E250256001680P E250256001680P

E250256001680P

Seco
Артикул: 02904879
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
2 - Axial adjustment possible
BD Body diameter
40 mm
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0160
DCINTF Interference cutting diameter
33 mm
DCONWS Diameter
16 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG04003795
FamilyProducts
E250256001680P
HAND Cutting direction
N - Neutral
ID Technical product number
02904879
Interface codes
J6 / J61
ISO
SKG37C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
60.9 mm
LF Functional length
41 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01 ISO
ZYL01G1600****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01600115
LOC-03 CCFMS Connection code form
37
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG37C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04003795
LPR Protruding length
80 mm
LSCX Clamping length maximum
39 mm
Name Identifying order number
E250256001680P
OAL Overall length
148.4 mm
TA Taper angle
4.5 Degree
WT Weight of item
1.3 kg
