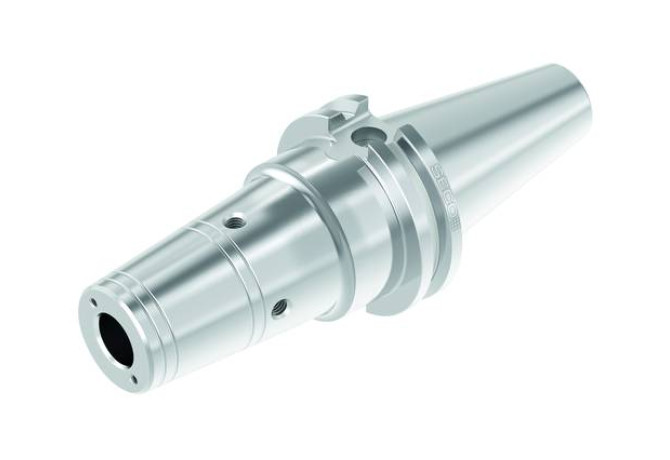

Главная Каталог продукции Toolunited 17 401-01 - Converter, rotationally symmetric E25025600062300

E25025600062300

E25025600062300 E25025600062300 E25025600062300 E25025600062300

E25025600062300

Seco
Артикул: 02904856
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
2 - Axial adjustment possible
BD Body diameter
42.129 mm
BLQ Balance quality code
1
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
3
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0625
DCINTF Interference cutting diameter
33 mm
DCONWS Diameter
15.875 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
3/14/2020
DIN
SKG04003795
FamilyProducts
E25025600062300
HAND Cutting direction
N - Neutral
ID Technical product number
02904856
Interface codes
J6 / J61
ISO
SKG37C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
57.15 mm
LF Functional length
37.2 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
3 Inch with coolant
LOC-01 CZCWS Connection size code
0625
LOC-01 DCONWS Diameter
15.875 mm
LOC-01 ISO
ZYL01R6250****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL06250135
LOC-03 CCFMS Connection code form
37
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG37C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04003795
LPR Protruding length
76.2 mm
LSCX Clamping length maximum
39 mm
Name Identifying order number
E25025600062300
OAL Overall length
144.6 mm
TA Taper angle
4.5 Degree
WT Weight of item
1.3 kg
